AViPAS AV-1081 Specifications

Camera
  • Video System

    1080P60/50/30/25/59.94/29.97; 1080I60/50/59.94; 720P60/50/30/25/59.94/29.97

  • Sensor

    1/2.8", CMOS, Effective Pixel: 2.07M, 16:9

  • Scanning Mode

    Progressive

  • Lens

    10x, f4.7mm to 47mm, F1.6 to F3.0

  • Digital Zoom

    5x

  • Minimal Illumination

    0.5 Lux (at F1.8, AGC ON)

  • Shutter Speed

    1/30s to 1/10000s

  • White Balance

    Manual, Auto, Indoor, Outdoor, One Push
    3000K/3500K/4000K/4500K/5000K/5500K/6000K/6500K/7000K

  • Digital Noise Reduction

    2D&3D Digital Noise Reduction

  • Focus

    Auto / Manual/ One Push

  • Electronic Shutter

    Auto / Manual

  • Backlight Compensation

    Support

  • Video S/N

    >=55dB

  • WDR

    OFF/ Dynamic Level Adjustment

  • Video Adjustment

    Brightness/Color/Saturation/Contrast/Sharpness/B/W mode/Gamma curve

  • View Angle

    6.43 deg. (Tele), 60.9 deg. (Wide)

  • Vertical Rotation Range

    -30 deg. to +30 deg.

  • Horizontal Rotation Range

    +/- 170 deg.

  • Pan Speed Range

    0.1 deg. to 60 deg. /s

  • Tilt Speed Range

    0.1 deg. to 30 deg. /s

  • H & V Flip Mount

    Support

  • Image Freeze

    Support

  • Number of Preset

    255

IPC Functions

Jump to...
  • Video coding standard

    H.265/H.264

  • Video Stream

    First stream, Second stream

  • First stream resolution

    1920x1080, 1280x720,640x480

  • Second stream resolution

    320x180, 320x240, 640x360, 640x480, 1280x720, 1920x1080

  • Bit Rate Type

    Variable rate, Fixed rate

  • Frame Rate

    5 to 60F/S

  • Audio encode standard

    AAC/MP3/G.711A

Input / Output Interface

Jump to...
  • HD Output

    1x HDMI

  • Network Interface

    1x RJ45: 100M (10/100BASE-TX)

  • Audio Interface

    1-ch 3.5mm audio interface, Line In

  • Communication Interface

    1x RS-232 (Circuit)

  • Protocol

    VISCA/Pelco-D/Pelco-P

  • Baud Rate

    115200/9600/4800/2400bps

  • Power jack

    Input AC110V-AC220V; Output DC12V/1.5A

General

Jump to...
  • Power Consumption

    12W

  • Input Voltage

    DC12V +/-10%

  • Current Consumption

    1.0A (Max)

  • Operating Temperature

    -10 to 50 deg. C (14 to 122 deg. F)

  • Storage Temperature

    -10 to 60 deg. C (14 to 140 deg. F)

  • MTBF

    >30000h

  • Dimensions

    6 x 6 x 5" (152.40 x 152.40 x 127.00mm)

  • Weight

    3 lbs (1.36kg)

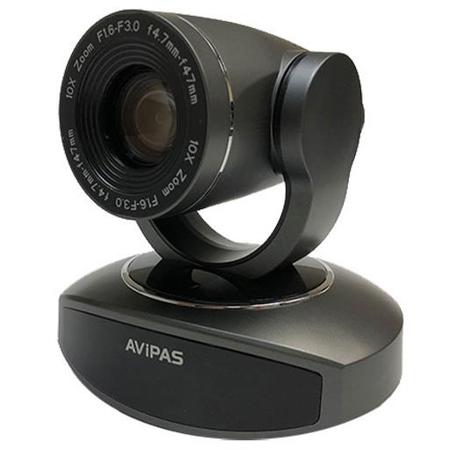

About AViPAS AV-1081

The Avipas AV-1081 is a full HD 1080p camera with 10X optical zoom & 5X digital zoom, suitable for video conferencing, education and houses of worship. The AV-1081 has 2 outputs: HDMI and LAN.

AViPAS AV-1081 Features

  • Elegant, compact design; super quiet and smooth pan/tilt mechanism
  • 1920 x 1080 high resolution output with a frame rate up to 60fps
  • 83.7 deg. wide-angle high-quality lens
  • High SNR of CMOS sensor combined with 2D&3D noise reduction algorithm
  • H.264/H.265 video compression
  • Low-power sleep function, lower than 0.4W
  • IP streaming & HDMI output
  • RS-232 (VISCA/ Pelco-D/ Pelco-P) and IR remote control

What's in the box:

  • AViPAS AV-1081 2MP HDMI PTZ Video Conference Camera
  • AC Power Adapter
  • Power Cord
  • RS232 Cable
  • Remote Control
  • User Manual
  • AViPAS 2 Year Limited Warranty
