Shopper : Why Did You Choose This?BRANDON C : 2 cameras. Seems like a good deal.

Reviews about this item

Review Summary

2021-02-25T07:59:39

Rated 5 out of 5

Good product

It performs as expected the cameras are good I low light, and the fact that there are two cameras for this price point is really quite awesome.

Brandon C.

AViPAS AV-1364 Specifications

Camera
  • Video System

    1080P60/50/30/25/59.94/29.97; 1080I60/50/59.94; 720P60/50/30/25/59.94/29.97

  • Sensor

    1/2.8", CMOS, Effective Pixel: 2.07M, 16:9

  • Scanning Mode

    Progressive

  • Lens

    20x, f4.7mm to 94mm, F1.6 to F3.5

  • Digital Zoom

    10x

  • Minimal Illumination

    0.5 Lux (at F1.8, AGC ON)

  • White Balance

    Manual/Auto/One Push/ 3000K/ 4000K/5000K/6500K

  • Digital Noise Reduction

    2D&3D Digital Noise Reduction

  • Focus

    Auto / Manual

  • Aperture

    Auto / Manual

  • Electronic Shutter

    Auto / Manual

  • Backlight Compensation

    Support

  • Video S/N

    >=55dB

  • WDR

    OFF/ Dynamic Level Adjustment

  • Video Adjustment

    Brightness/Color/Saturation/Contrast/Sharpness/B/W mode/Gamma curve

  • View Angle

    6.43 deg. (Tele), 60.9 deg. (Wide)

  • Pan Speed Range

    0.1 deg. to 100 deg. /s

  • Tilt Speed Range

    0.1 deg. to 45 deg. /s

  • Number of Preset

    255 (10 by Remote Controller)

Panoramic Camera

Jump to...
  • Sensor

    1/3", CMOS, Effective Pixel: 2.1M

  • Focus

    Manual

  • View Angle (D/H/V)

    122 deg. /98 deg. /73 deg.

IPC Functions

Jump to...
  • Video coding standard

    H.265/H.264

  • Video Stream

    Dual stream

  • Network Protocol

    RTSP, RTMP, ONVIF, GB/T28181

  • Audio encode standard

    AAC/MP3/PCM

Input/Output Interface

Jump to...
  • HD Output

    HD-SDI

  • Network Interface

    RJ45: 100M network interface (10/100BASE-TX); Support VISCA protocol control through IP port

  • Audio Interface

    Dual audio channel 3.5mm linear input

  • Communication Interface

    RS-232

  • Protocol

    VISCA/Pelco-D/Pelco-P

  • Baud Rate

    115200/9600/4800/2400bps

  • Power jack

    Input AC110V-AC220V; Output DC12V/1.5A

General

Jump to...
  • Input Voltage

    DC12V +/-10%

  • Current Consumption

    1.5A (Max)

  • Consumption

    18W (Max)

  • Operating Temperature

    -10 to 50 deg. C (14 to 122 deg. F)

  • Storage Temperature

    -10 to 60 deg. C (14 to 140 deg. F)

  • Dimensions

    10 x 5.7 x 6.9" (254.00 x 144.78 x 175.26mm)

  • Weight

    3.4 lbs (1.54kg)

  • UPC Code

    858738005350

About AViPAS AV-1364

FEATURED REVIEWS

Good product

By Brandon C.

It performs as expected the cameras are good I low light, and the fact that there are two cameras for this price point is really quite awesome.

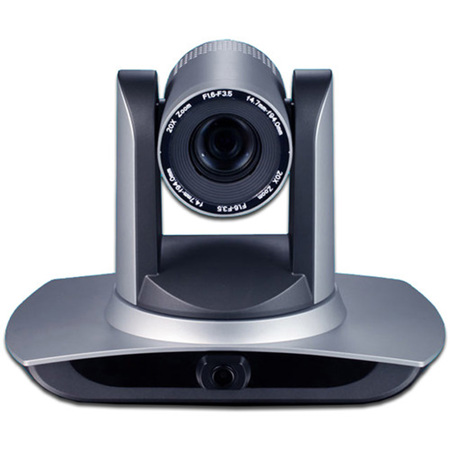

The Avipas AV-1364 is a new intelligent auto-tracking camera with a built-in high-speed processor and advanced image processing & analysis algorithms. It allows lecture capturing to be more accurate, faster and smoother. AV-1364 equips with a full HD 1080p tracking camera with 20X optical zoom & 10X digital zoom and an integrated panoramic camera for analysis. With the provided IVESmart tool, AV-1364 is easy to install and maintain. Both the tracking & panoramic camera have 2 outputs: HD-SDI and LAN.

AViPAS AV-1364 Features

  • Integrated design: a built-in panoramic camera works in coordination with the tracking camera
  • Advanced tracking algorithms for human detection; strong anti-interference ability
  • User-defined tracking & masking areas
  • 1920 x 1080 high resolution output with a frame rate up to 60fps
  • High SNR of CMOS sensor combined with 2D&3D noise reduction algorithm
  • Wide dynamic exposure function to avoid target darken under strong-light background such as projectors
  • H.264/H.265 video compression
  • Low-power sleep function, lower than 0.4W
  • IP streaming & HD-SDI output

What's in the box:

  • AViPAS AV-1364 2MP SDI Auto-Tracking Camera
  • Power Supply
  • RS232 Control Cable
  • Remote Controller
  • Manual
  • AViPAS 2 Year Limited Warranty
