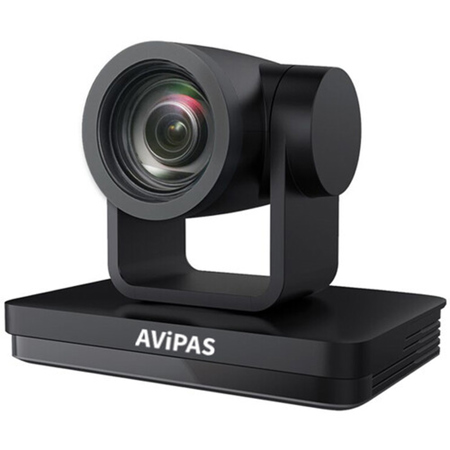

AViPAS AV-1562 Full HD All-In-One 20x PTZ Camera with PoE
AViPAS AV-1562: Picture 1 thumbnail
AViPAS AV-1562: Picture 2 thumbnail
See all AViPAS items
25% Off

AViPAS AV-1562 Full HD All-In-One 20x PTZ Camera with PoE

SKU: AVAV1562 MFR: AV-1562
Be the first to review this itemAsk a Question
$995.00
$1,320.00
Save: $325 (25%)
OR
$83/mo suggested payments with 12‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Capture crystal-clear video with the AViPAS PTZ camera's Full HD 1080p resolution.
  • Experience smooth, detailed zoom capability with the 20x optical zoom PTZ camera.
  • Easily connect via HDMI, SDI, LAN, or USB for versatile video output options on this PTZ.
  • Perfect for live streaming, this PTZ camera supports H.265/H.264 compression formats.
  • Control remotely with VISCA/Pelco protocols, making this PTZ camera ideal for conferences.
  • Power over Ethernet (PoE) support simplifies setup for this PTZ camera, reducing cable clutter.
See More Product Details
Special Order?Estimated to Ship: 09/07/2025
Free Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

2 Year

$79.99

3 Year

$99.99

4 Year

$129.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

AViPAS AV-1562 Specifications

  • Optical Zoom

    20x f5.2-98mm

  • Sensor

    1/2.8" high quality HD CMOS sensor

  • Effective Pixels

    16: 9, 2.07 megapixel

  • Video Format

    HDMI/SDI/LAN video format: 1080P60/50/30/25/59.94/59.97, 1080I60/50/59.94, 720P60/50/59.94/29.97
    USB3.0 interface video format (up to 30fps)
    To USB3.0: YUY2/MJPEG/NV12/H.264/265: 1920x1080, 1280x720, 1024x576, 960x540, 800x448, 720x480, 640x360, 640x480, 320x176

  • Video Format (Contd.)

    To USB2.0: YUY2/NV12: 1024x576, 960x540, 800x448, 720x480, 640x360, 640x480, 320x176; MJPEG/H.264/H.265: 1920x1080, 1280x720, 1024x576, 960x540, 800x448, 720x480, 640x360, 640x480, 320x176

  • View Angle

    56 Degree (W)-3.2 Degree (T)

  • AV

    F1.5-F3.0

  • Digital Zoom

    10X

  • Minimum Illumination

    0.5Lux

  • DNR

    2D & 3D DNR

  • White Balance

    Auto / Manual/ One Push/ Specify color temperature (2400k-7100k)

  • Focus/Aperture/Electronic Shutter

    Auto/Manual/One Push Focus

  • Iris

    Auto/Manual

  • Shutter

    Auto/Manual

  • BLC

    ON/OFF

  • WDR

    OFF/ Dynamic level adjustment

  • Video Adjustment

    Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve

  • SNR

    >50dB

  • Pan/Tilt Rotation

    +/-170 Degree , -30 Degree -+90 Degree

  • Pan Control Speed

    0.1 - 100 Degree /sec

  • Tilt Control Speed

    0.1- 45 Degree /sec

  • Preset Speed

    Pan: 100 Degree /sec, Tilt: 45 Degree /sec

  • Preset Number

    255 presets (10 presets via remote control)

  • Video Interfaces

    HDMI, SDI, LAN (POE), USB3.0(type B compatible with USB2.0)

  • Video Output

    HDMI, SDI, LAN, USB3.0

  • Video Stream

    Dual stream output

  • Video Compression Format

    LAN Interface: H.265, H.264, Dual stream output
    USB3.0 Interface: YUY2, MJPEG, H.264, NV12, H.265

  • Audio Input Interface

    Double track 3.5mm linear input

  • Audio Output Interface

    HDMI, SDI, LAN, USB3.0

  • Audio Compression

    AAC/MP3/G.711A

  • Control Interface

    RS232-IN, RS232-OUT, RS422 (compatible with RS485)

  • Control Protocol

    VISCA/ Pelco-D/ Pelco-P/ IP VISCA/ ONVIF
    Baud Rate: 115200/38400/9600/4800/2400bps

  • Power Interface

    HEC3800 outlet (DC12V)

  • Input Voltage

    DC12V +/-10%

  • Input Electric Current

    Maximum: 1A

  • Power Consumption

    Maximum: 12W

  • Network Protocols

    RTSP, RTMP, RTMPS, ONVIF, GB/T28181; IP VISCA control protocol

  • USB Communication

    UVC (Video), UAC (Audio)

  • Stored Temperature

    14 to 158 Degree F (-10 Degree C-+70 Degree C)

  • Storage Humidity

    20%-95%

  • Working Temperature

    14 to 122 Degree F (-10 Degree C-+50 Degree C)

  • Working Humidity

    20%-80%

  • Dimensions

    7.1 x 4.5 x 5.9" (181 x 115 x 149mm)

  • Weight

    2.5 lbs (1.15kg)

  • UPC Code

    858738005602

About AViPAS AV-1562

Find the AV-1562 Full HD All-In-One 20x PTZ Camera with PoE, a high-performance multi-interface camera designed to deliver superior image quality. With advanced ISP processing algorithms, this camera produces vivid, high-resolution images that boast a strong sense of depth and fantastic color rendition.

The AV-1562 supports H.265/H.264 encoding, ensuring efficient video compression without compromising on quality. This makes it an ideal choice for professional video conferencing and streaming applications.

Equipped with multiple video output interfaces including IP (PoE), HDMI, 3G-SDI, and USB3.0, the AV-1562 offers broad compatibility with various video conferencing and streaming software. This versatility makes it a valuable addition to any professional video setup.

In addition to its impressive video capabilities, the AV-1562 also supports line-in audio through IP, HDMI, and SDI output. This feature allows for seamless audio integration, enhancing the overall multimedia experience.

Control protocol options for the AV-1562 include VISCA, PELCO-P, PELCO-D, VISCA over IP, and ONVIF. These options provide flexibility in controlling the camera, making it a user-friendly choice for professionals.

In conclusion, the AV-1562 Full HD All-In-One 20x PTZ Camera with PoE is a powerful, versatile, and user-friendly camera that delivers high-quality video and audio performance.

AViPAS AV-1562 Features

  • Advanced ISP, 1/2.8 inch CMOS sensor, providing full HD video
  • 20x optical zoom lens, 10x digital zoom with 56 Degree FOV
  • IP (PoE), HDMI, 3G-SDI, USB3.0 video output interface
  • White Balance/ Exposure/ Focus/ Iris can be adjusted manually
  • Support PoE: one single CAT5/6 for video, control, and power
  • Support line-in audio function: through IP stream, SDI and HDMI output. AAC, MP3 and G.711A audio encoding
  • Control options: RS232/RS422/485/UVC1.5; Control protocol options: VISCA, PELCO-P, PELCO-D, VISCA over IP and ONVIF
  • Support daisy chain

Warranty Information

This product has a limited warranty of 24 months for parts and 24 months for labor.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Product Documents

User Manual

Key Features

  • Capture crystal-clear video with the AViPAS PTZ camera's Full HD 1080p resolution.
  • Experience smooth, detailed zoom capability with the 20x optical zoom PTZ camera.
  • Easily connect via HDMI, SDI, LAN, or USB for versatile video output options on this PTZ.
  • Perfect for live streaming, this PTZ camera supports H.265/H.264 compression formats.
  • Control remotely with VISCA/Pelco protocols, making this PTZ camera ideal for conferences.
  • Power over Ethernet (PoE) support simplifies setup for this PTZ camera, reducing cable clutter.

What's in the box:

  • AViPAS AV-1562 Full HD All-In-One 20x PTZ Camera
  • Power Adapter
  • Power Cord
  • RS-232 Control Cable
  • USB Cable
  • Remote Controller
  • User Manual
  • AViPAS 2 Year Limited Warranty
