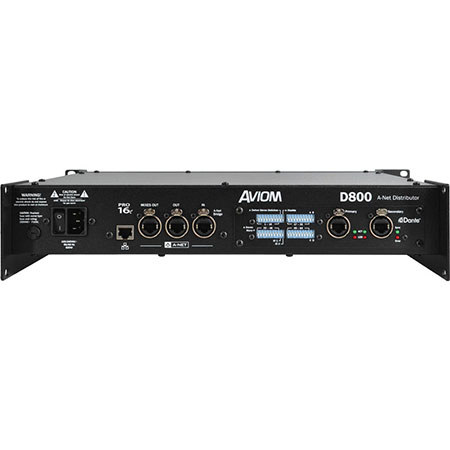

Aviom D800-Dante A-Net Distributor with A-Net Bridge Input and Dante interface

The D800-Dante A-Net Distributor includes all of the advanced features of the D800 plus connectivity to a Dante digital audio network. The D800-Dante is ideal for connecting Aviom Personal Mixers to a Yamaha CL Series console with Rio I/O racks. The D800-Dante provides power and audio for up to eight Aviom Personal Mixers. The D800-Dante A-Net Distributor includes all of the advanced features of the D800 plus connectivity to a Dante digital audio network. The D800-Dante is ideal for connecting Aviom Personal Mixers to a Dante-enabled console, such as the Yamaha CL Series console with Rio I/O racks. The D800-Dante provides power and audio for up to eight Aviom Personal Mixers.

Seamless Integration to Dante Audio Networks
The D800-Dante's network interface connects directly to an existing Dante audio network. Sixty-four channels from Dante are routed to the Aviom Personal Mixers and each A360 can select its own mix channels from that network. (Note that A-16II and A-16R Personal Mixers can use only channels 1-16.)

Extending the System
The D800-Dante includes a standard Pro16e output, which outputs a 64-channel A-Net stream comprised of the audio channels from the Dante network. This stream can be passed to any Pro16 or Pro16e device (standard Pro16 devices can utilize only channels 1-16), including a standard D800, which can be used for connecting additional Aviom Personal Mixers.

Network Mix Back for Streamlined Connections
Like the standard D800, the D800-Dante provides seamless integration of transmitters for wireless in-ear monitors. With Network Mix Back, the D800-Dante takes the stereo mix output from each connected A360 and creates a 16-channel digital audio stream. Those mixes can be sent back in to the Dante network or output as an A-Net stream suitable for connecting to an AN-16/o v.4 Output Module. The output module will convert the audio back to analog for connecting to individual transmitters. On stage, musicians see only a single cable to their A360 Personal Mixer, supplying audio and power in and returning their mix audio to their transmitter.

Dante Interface
Supports up to 64 channels of Dante network audio to a Dante enabled digital console such as the Yamaha CL with Rio I/O racks.

64 Digital Channels
Using SB4 System Bridge and Pro 16 A-Net console cards, combines up to four synchronous Pro16 A-Net streams to send 64 channels of digital audio from digital console to A360 personal mixers with individually selected control on each mixer.

A360 and A-16II Support
Supports switchable bi-directional data flow to A360 mixers and unidirectional data flow to A-16II Personal mixers

Streamlined Network Mix Back
Takes the stereo mix output from each connected A360 to create a 16-channel A-Net digital stream. These stereo mixes can then be connected to the musician's wireless in-ear monitor transmitters.

Ethernet for iOS Devices
Connects to a standard Wi-Fi router to extend user interface of A360 to iOS device touchscreen.
