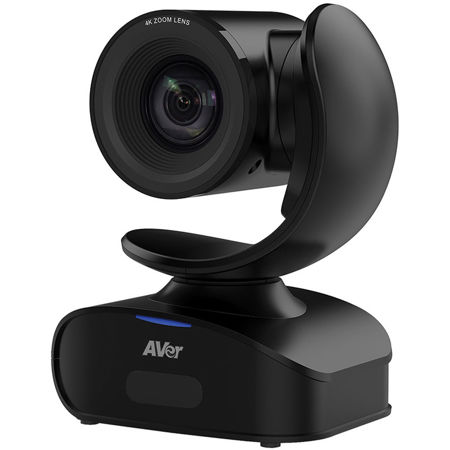

Aver CAM540 16x 4K Video PTZ Conferencing Camera

SKU: AVECOMSCA540

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Aver CAM540 Specifications

  • Pan

    +/-160 Degree

  • Tilt

    -30 to 90 Degree

  • Presets

    10 Camera Presets

  • Resolution

    4K at 30 fps
    1080, 720p, 640 x 480, 320 x 240 at 60, 30, 15 fps

  • Zoom

    16x HD Zoom (3.3x Optical Plus Digital)

  • Field of View

    86 Degree

  • Minimum Working Distance

    3.3' (1m)

  • Connectivity

    1x 12 VDC, Power Port
    1x 6-Pin Mini DIN, RS-232 Port
    1x USB Type-C Port

  • Video Format

    YUV, MJPEG

  • USB

    2.0, 3.1 Gen1
    UVC (USB Video Class) 1.1

  • Control

    IR Remote Control
    VISCA / Pelco P / Pelco D via RS-232
    UVC/Plug-and-Play
    PTZapp

  • Security

    Kensington Slot

  • Mounting

    Camera Mount (Included) for Wall or Ceiling
    Standard Tripod Thread

  • System Requirements

    Windows 7/8/8.1/10
    Mac OS X 10.7 or Higher
    Google Chromebook Version 29.0.1547.70, Platform 4319.79.0

  • Compatible Applications

    ZOOM, Adobe Connect, BlueJeans, CyberLink U Meeting, Cisco WebEx, Google Hangout, GoToMeeting, Intel Unite, Microsoft Lync, Skype, Skype for Business, V-Cube, vMix, WebRTC, Wirecast, XSplit

  • Processor

    2.4 GHz Intel at Core 2 Duo

  • RAM

    2 GB or More

  • Power Supply

    100 to 240 VAC, 50/60 Hz, 9.8' (3m)

  • Power Consumption

    12 VDC, 2 A

  • Operating Temperature

    32 to 104 Degree F (0 to 40 Degree C)

  • Storage Temperature

    -4 to 140 Degree F (-20 to 60 Degree C)

  • Operating Humidity

    20 to 80%

  • Storage Humidity

    20 to 80%

  • Dimensions

    Camera: 3.9 x 5.1 x 6.7" (97.8 x 130.7 x 171.1mm)
    Remote Control: 7.9 x 2.0 x 0.8" (200 x 50 x 21mm)

  • Weight

    Camera: 3.3 lb (1.5kg)
    Remote: 0.19 lb (0.09kg)

About Aver CAM540

Super sharp, accurate color, up to 4K
Finally the term "Like looking through glass" can be used. The CAM540 uses high quality sensors and multi-lens glass to produce the sharpest and most accurate color ever.

10 camera presets
The CAM540 allows you to customize your meetings by storing up to 10 PTZ presets by RS232 VISCA or UVC. 10 camera presets can be easily accessed with one touch of the remote, saving you time and providing flexibility to swiftly move to predetermined locations in your conference room.

Easy plug-and-play, any app!
The CAM540 is an affordable, professional-grade USB PTZ camera optimized to deliver an exceptional video communication experience. Compatible with all of your favorite apps, Cloud Services and audio systems. The CAM540 connects to virtually any desktop or laptop via a single USB cable.

Tricky light condition, no problem
No matter if you are in low, bright, fluorescent or natural light -- AVer's CAM540 optimizes light balance to create natural-looking skin tones and enhance faces providing you with accurate color to its fullest.

16X zoom with PTZ
With one of the fastest and smoothest true 16X zoom wide angle cameras available on the market today, the CAM540's multi-element, multi-coating auto-focus optics and 16X zoom delivers rapid and smooth pan, tilt and zoom-in performance to capture the smallest details with absolute clarity at every focal length.

Smart Frame
Perfectly frame everyone in the room, no matter their distance from the lens with a single click.

RS232 VISCA integration capabilities
With advanced integration capabilities built into the CAM540 camera, including an RS232 cable and VISCA support, the system can easily be integrated into a controlled environment allowing users to operate and manage the CAM540 through an AV control panel.

Analytics API
The CAM540 features an Analytics API so businesses and third-party software providers can obtain people-counting data for better understanding of meeting-space usage.

Aver CAM540 Features

  • Super sharp, accurate color, up to 4K
  • 10 camera presets
  • Easy plug-and-play, any app!
  • Tricky light condition, no problem
  • 16X zoom with PTZ
  • Smart Frame
  • RS232 VISCA integration capabilities
  • Analytics API

Key Features

  • Super sharp, accurate color, up to 4K
  • 10 camera presets
  • Easy plug-and-play, any app!
  • Tricky light condition, no problem
  • 16X zoom with PTZ
  • Smart Frame

What's in the box:

  • CAM540 16x 4K Video PTZ Conferencing Camera
  • Remote Control
  • Power Adapter
  • 6' USB 3.1 Type-C to Type-A Adapter
  • Metal Mount
  • Tripod Screw
  • Battery
  • AVer 5 Year Limited Warranty on Camera and 1 Year Limited Warranty on Accessories
