Aviom AN-16/o V.4 16-Channel Analog Output Module for Pro16 Digital Snake Network System
SKU: AVIAN160V4 MFR: AN-16/O V.4
$1,699.00
$1,899.00
Save: $200 (11%)OR
Key Features
- Get pristine audio output with 16 balanced channels on this digital audio interface.
- Utilize DB25 connectors for seamless integration with your existing pro audio setup.
- Experience low latency (<0.620 msec) for real-time audio monitoring & performance.
- Achieve superior sound with 24-bit D/A conversion, ensuring high audio quality.
- Expand your A-Net Pro16 digital snake network using the EtherCon expansion port.
- Selectable output levels (+24dBu to Mic) offer flexible gain staging for any signal.
FREE 2-Day Shipping
See Options
1
Protect your gear with Adorama Protect.* Learn more
2 Year
$179.99
3 Year
$249.99
5 Year
$489.99
Available to U.S. customers only.
Need help? Ask our experts.
Overview
Compare
Specs
Protection
Q&A
About Aviom AN-16/o

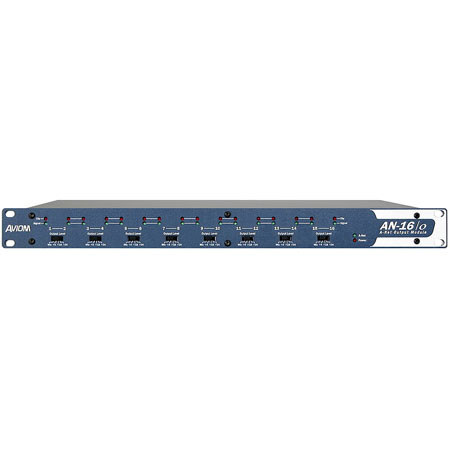

The Aviom AN-16/o v.4 Output Module is a 1U rack-mount 16-channel digital-to-analog converter for Pro16 digital snake and audio distribution systems. Digital audio is input on standard Cat-5e cable, via Aviom's A-Net Pro16 digital audio transmission protocol and converted to analog using 24-bit, 48kHz converters. Sixteen balanced outputs are provided on the rear panel via multipin connectors.
Designed to be compatible with a wide range of signal level requirements, each pair of channels has a four-position output level switch with settings for +24, +18 and +4dBu line-level, or mic-level output. Each channel features front-panel LEDs for signal present and clip.
The AN-16/o v.4 features rugged DB25 multipin connectors for analog audio outputs, reducing set-up time and adding the security of a locking connection. All network connections utilize heavy duty locking Neutrik EtherCon connectors.
Digital connections include A-Net In, A-Net Out and A-Net Expansion. The A-Net Out jack provides a lossless digital split of the A-Net In audio data stream, while the A-Net Expansion jack allows two 16-channel A-Net streams to be combined onto a single Cat-5e cable. With the optional AN-16SBR System Bridge, up to 64 channels can be combined onto a single Cat-5e cable in a variety of configurations (16x0, 32x0, 48x0, 64x0, 16x16, 32x16, 32x32 and 48x16).
The AN-16/o v.4 can be used with any Pro16 input module or console interface card, with no limit to the number of output modules in a single system. The AN-16/o v.4 can be connected to a Pro64 audio network by adding the ASI A-Net Systems Interface.
Aviom AN-16/o Features
- 16 balanced mic- or line-level outputs
- Four-position output level switch per channel pair
- +24, +18 and +4dBu line-level, or mic-level outputs
- Converts A-Net digital stream to 16 analog audio channels
- 48kHz, 24-bit D/A converters
- Unlimited splits and digital copies
- Optional AN-16SBR System Bridge combines up to 4 A-Net streams onto one cable
- Cat-5e cable runs up to 500 feet (150 meters) between devices
Warranty Information
This product has a limited warranty of 12 months for parts and 12 months for labor.
