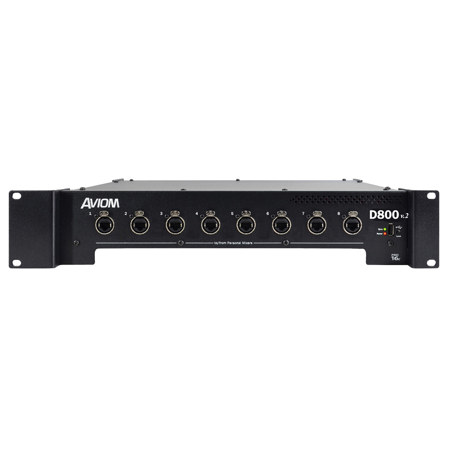

Aviom D800 v.2 A-Net Distributor

The D800 A-Net Distributor provide the link between input module, or console card and the Personal Mixers, providing DC power and the digital A-Net audio data stream to your Aviom Personal Mixers, utilizing standard Cat-5 cables.

The A-Net versions of the D800 also integrate additional advanced options for delivering high-channel-count audio streams to your Personal Mixers, streamlining connections between A640 and A360 Personal Mixers and transmitters used for wireless in-ear monitors.

The original versions of the D800 used front panel switches (labeled I/II) to control bidirectional communication when used with Aviom Personal Mixers. D800 v.2 eliminate the need for the bidirectional switches by automatically setting up bidirectional communication with Aviom Personal Mixers as needed. The original and v.2 versions of the product can be freely interchanged in systems designs.

Simple setup. Powerful performance.
On the most basic level, the D800 do an unglamorous but important job: get power and audio to your Personal Mixers. Setup is a breeze, with no IP addressing, routing, or switch managing to worry about, so you can get set up and start mixing in no time, without a lot of hassle.

Get more channels to your mixers
Used in conjunction with the SB4 System Bridge and Pro16 A-Net console cards (such as the Y1 A-Net Card for Yamaha), the D800 can combine up to four 16-channel A-Net streams for sending up to 64 channels directly from your digital console to your Aviom Personal Mixers. Mix channels can be individually selected for each A640 right from its user interface and for the A360 Personal Mixer by using A360 Channel Manager, allowing each musician to mix exactly the sources they need.

Grow your system
If you need more than eight Personal Mixers, both the D800 include an A-Net Out port on the rear panel-perfect for sending the incoming digital audio stream (regardless of its original source) on to additional A-Net Distributor.

Precision Engineered for Reliability
From the innovative power supply sub-system to the mechanical design to the whisper-quiet thermal management, the D800 are built to give you rock-solid performance you can count on.

Network Mix Back for wireless in-ears
If you're using A640 Personal Mixers or A360 Personal Mixers, the D800 eliminate the need for running analog cables from personal mixers to the transmitter units for wireless in-ear monitors.

Extend the interface with iOS
The D800 manage communication between A360 Personal Mixers and supported iOS devices, allowing users to run the A360 Display app alongside their A360.
