Aviom Mix320-A Personal Mixing System with Analog Interface
SKU: AVIMIX320A MFR: MIX320-A
$5,599.00
$5,999.00
Save: $400 (7%)OR
Key Features
- Get pristine sound quality with this personal mixing system, ideal for live performances.
- Enjoy low noise and crystal-clear audio, ensuring every detail is heard in your mix.
- This recording mixer features 16 balanced line-level inputs for versatile connectivity options.
- Customize your monitoring with EQ control, perfect for achieving the ideal sound balance.
- The included A-Net distributor supports multiple personal mixers, simplifying setup for bands.
- Built for durability, this Aviom mixing system withstands the rigors of touring and stage use.
Temporarily On Backorder?Expected Availability: 11/2025
Free Shipping
See Options
1
Protect your gear with Adorama Protect.* Learn more
2 Year
$499.99
3 Year
$649.99
5 Year
$949.99
Available to U.S. customers only.
Need help? Ask our experts.
Overview
Compare
Specs
Protection
Q&A
About Aviom Mix320-A
The Mix320-A Personal Mixing System includes everything you need to create a 16-input personal mixing system for six performers. It's perfect for stage or studio use.
Connect balanced analog inputs from a mixing console for live use or to the outputs of your DAW recording interface or console to create a studio cue system.
The A320 Personal Mixers get their digital data and power over the same cable, so all you need to do is connect a Cat-5 cable and you're ready to start using the system.
A complete monitoring system in a box, ready to use!
The Mix320-A Personal Mixing System is available in two versions. The standard version is great if you already have in-ear monitors and /or headphones. If you're new to personal mixing and need IEMs, there is an enhanced version of the kit with six MEE Audio M6 Pro in-ear monitors included. These single-driver IEMs include a 72-inch cable, an assortment of ear tips, and a case.

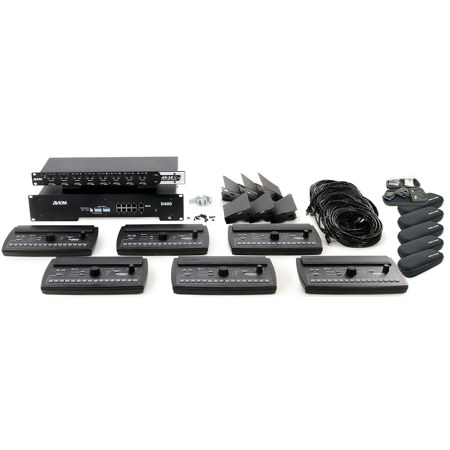

The Mix320-A Personal Mixing System features the analog AN-16/i v.2 Input Module as the front end of the system, a D400 A-Net Distributor to supply A-Net digital data and DC power to the mixers, and six A320 Personal Mixers for the performers. It also includes six MT-1a Mic Stand Mounts for attaching the A320 mixers to mic stands, as well as all the Cat-5e cables you'll need to connect the products.
Intuitive Mixing
The A320 Personal Mixer gives performing and recording musicians simple, intuitive control over their monitor mixes. It features 16 mono or stereo mix channel buttons, individual volume controls, and easy-to-use Stereo Placement controls. Connect headphones, ear buds, or a wireless in-ear monitoring system to the Personal Mixer and you're ready to start mixing.
Analog Front End
The analog AN-16/i v.2 Input Module allows up to 16 line-level signals to be connected as the inputs to the personal mixing system. Each channel features a 1/4-inch TRS balanced input and thru jack that make it easy to interface with direct outs, aux sends, or insert points on your mixing console or recording interface. Analog audio is converted to 48kHz, 24bit A-Net digital data for distribution to the Personal Mixers.
Power and Audio Over Cat-5
For distributing the A-Net digital data and DC power to the A320 Personal Mixers, the Mix320-A system includes the D400 A-Net Distributor. The D400 has A-Net In and Out jacks plus eight powered A-Net ports for Personal Mixers.
The mixing system packages are also easy to expand when you're ready-just add more Personal Mixers and A-Net Distributor as needed.
Aviom Mix320-A Features
- A320 Personal Mixers
- 16 mono or stereo sources
- 32-channel mix engine
- Per-channel volume and Stereo Placement
- Eight customizable mix presets
- Three-band master tone controls optimized for in-ear monitors
- Per-channel solo and mute
- Compatible with existing Aviom personal mixing systems
- AN-16/i v.2 Input Module
- Sixteen balanced audio inputs (1/4-in TRS connectors)
- Sixteen balanced Thru connectors (TRS)
- A-Net In with four-position slot range selector switch
- Stereo Link switches for each channel pair
- Four-position gain switches (+22, +4, 0, -10dB)
- Signal present and clip LEDs per channel
- D400 A-Net Distributor
- One A-Net In, one A-Net Out
- A-Net Offset for shifting the base slot for audio going to Personal Mixers
- Lowest cost
- Simple, cost-effective connectivity for Aviom Personal Mixers
- Provides DC power and audio data to up to 8 Personal Mixers
- Unpowered A-Net Out for connecting additional A-Net Distributor
- Stereo link switches for assigning stereo channels to Personal Mixers
- Compatible with A640, A360, A320, and A-16II Personal Mixers
- MT-1a Mic Stand Mounts
- Attaches to any standard mic stand
- Threaded ring nuts included
- Cat-5e Cables
- Flexible black jacket
- Standard RJ45 connectors
Warranty Information
This product has a limited warranty of 12 months for parts and 12 months for labor.
