Aviom Mix320-D Personal Mixing System with Dante Interface

SKU: AVIMIX320D MFR: MIX320-D
Earn VIP Reward Points

Key Features

  • Experience pristine sound quality with the Aviom Mix320-D personal mixing system.
  • Customize your monitor mix with 32 channels via the Dante interface for total control.
  • Enjoy low noise performance, ensuring a clean and professional audio experience.
  • Each musician gets a personalized mix with intuitive EQ control, enhancing performances.
  • Built for durability, this Aviom mixer withstands rigorous use in live sound environments.
  • Streamline your setup with included Cat-5e cables and mic stand mounts for easy integration.
See More Product Details
Temporarily On Backorder?Expected Availability: 09/2025
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

2 Year

$499.99

3 Year

$649.99

5 Year

$949.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Aviom Mix320-D Specifications

A320 Personal Mixers

A320 Personal Mixers

Jump to...
  • Color

    Black

  • Audio Output

    1/4" TRS stereo, headphone or line level

  • Stereo Mix Output, Headphone/Line

    Tip: Audio Left;
    Ring: Audio Right;
    Sleeve: Ground

  • A-Net I/O

    1 A-Net In, RJ45 connector;
    Supports Pro16 and Pro16e

  • D/A Conversion

    44.1/48kHz, 24-bit

  • Stereo Operation

    Stereo Link, per channel pair;
    Set at the input module;
    Variable pan per mono channel or pan/spread per stereo channel pair

  • Headphone Output

    275 mW per side into 50 Ohms (both sides driven)

  • Output Impedance

    5 Ohms

  • Freq. Response

    3Hz-22kHz +0.2dB/-3dB at 50 Ohms

  • THD +N

    < 0.003%

  • Output Voltage for Personal Mixers

    24VDC, 0.5 amp

  • Output Voltage for Personal Mixers

    24VDC, 0.5 amp

  • Signal to Noise (unweighted)

    -106dB (measured with zero data into all channels)

  • Latency

    0.880 msec (measured from analog input to analog output)

  • Pro16e A-Net

    Use Cat-5e (or better) cable;
    Maximum 400 ft (122 m) between devices;
    Supports Power Over A-Net

  • Cat-5 cable

    Use shielded Cat-5e (or better) cable to stay below the CISPR 22 Class B, ICES-003, and FCC 47 CFR Part 15 Class B emissions limits.

  • Power

    24 VDC, 0.5 amp;
    Power is supplied over the Cat-5 cable when connected to an Aviom A-Net Distributor

  • Dimensions (W x D x H)

    10.26 x 6.14 x 1.91" (260.6 x 155.95 x 48.51mm)

  • Weight

    20.81 oz (590g)

D400-Dante A-Net Distributor

Jump to...
  • Color

    Black

  • Compatibility

    A640, A360, A320, and A-16II Personal Mixers

  • A-Net Out to Personal Mixers

    Eight RJ45 connectors, powered;
    Compatible with A640, A360, A320, and A-16II Personal Mixers

  • A-Net Out

    Pro16e A-Net;
    RJ45 connector, unpowered
    Supports system expansion and the A-16II, A320, and A360 Personal Mixers

  • LEDs

    Power On (red); Network Sync (green)

  • Stereo Link

    Two 8-position DIP switch blocks (1-16, 17-32)

  • Output Voltage for Personal Mixers

    24VDC, 0.5 amp;
    Transmitted over the Cat-5e cable

  • A-Net Cables

    Front Panel Connections: Shielded Cat-5e (or better) cable must be used to stay below the CISPR 22 Class B, ICES-003, and FCC 47 CFR Part 15 Class B emissions limits.
    Unshielded Cat-5e cable may be used on all other network connections

  • Power Supply

    Internal, IEC connector

  • Input Voltage

    100-120 VAC or 200-240 VAC (with selector switch); 50-60Hz @220 W max

  • AC Fuse Types

    115V range: T2.5AL/250V, slow-acting
    230V range: T1.25AL/250V; slow-acting

  • Dante Interface

    32 channels from a Dante network
    (44.1/48kHz Sample Rate only)

  • Dante Primary I/O

    RJ45 connector

  • Dante Secondary I/O

    RJ45 connector

  • Dante LEDs

    Network Activity (green);
    1GB Network Connection Active (yellow)

  • Static IP support

    Yes

  • AES67 Support

    Yes

  • Dimensions

    W x D x H: 19 x 7.25 x 3.5" (482.6 x 182 x 88.9mm);
    2U high

  • Weight

    12 lbs (5.44kg)

MT-1a Mic Stand Mounts

Jump to...
  • Color

    Black

  • Compatibility

    Attaches with three screws to bottom of an A640, A320, A360, A-16II, or A-16CS

  • Connectors

    Screw Size: 6-32, 1/4" (6.35mm) long screws (includes three)

  • Dimensions

    Wide at front: 6.25" (158.75mm)
    Wide at rear: 4.5" (114.3mm)
    High: 3" (76.2mm)

Cat-5e Cables

Jump to...
  • Color

    Black

  • Compatibility

    Any Pro16 or Pro64 gear

  • Length

    25' (7.6m)

About Aviom Mix320-D

The Mix320-D Personal Mixing System has been designed specifically for use with Dante enabled mixing consoles and networks. It includes everything you need to create a personal mixing system for six performers.

The A320 Personal Mixers get their digital data and power over the same cable, so all you need to do is connect a Cat-5 cable and you're ready to start using the system.

A complete monitoring system in a box, ready to use!

The Mix320-D Personal Mixing System is available in two versions. The standard version is great if you already have in-ear monitors and /or headphones. If you're new to personal mixing and need IEMs, there is an enhanced version of the kit with six MEE Audio M6 Pro in-ear monitors included. These single-driver IEMs include a 72-inch cable, an assortment of ear tips, and a case.

The Mix320-D Personal Mixing System makes it easy to add Aviom monitoring to a Dante-enabled mixing console or audio network. No analog input module or console card is required; inputs get patched directly from your Dante network.

The Mix320-D system includes a D400-Dante A-Net Distributor that allows up to 32 channels to be patched from the Dante network to the personal mixing system inputs. The D400-Dante is also used to supply A-Net digital data and DC power to the mixers. The Mix320-D system includes six A320 Personal Mixer for the performers, plus six MT-1a Mic Stand Mounts for attaching the A320 mixers to mic stands, as well as all the Cat-5e cables you'll need to connect the products.

Intuitive Mixing
The A320 Personal Mixer gives performing and recording musicians simple, intuitive control over their monitor mixes. It features a 32-channel mix engine with 16 mono or stereo mix channels buttons and easy to use Stereo Placement controls.

Connect headphones, ear buds, or a wireless in-ear monitoring system to the Personal Mixer and you're ready to start mixing.

Distribute Power and Audio Over Cat-5
For distributing the A-Net digital data and DC power to the A320 Personal Mixers, the system includes the D400-Dante A-Net Distributor.

The D400-Dante also serves as the system's input device; it allows up to 32 channels from your Dante network to be assigned to the eight powered A-Net ports on its front panel. Stereo Link switches allow adjacent channels to be treated as a stereo pairs on the A320 Personal Mixers where they will appear on a single mix channel button.

The mixing system packages are also easy to expand when you're ready-just add more Personal Mixers and A-Net Distributor as needed.

Aviom Mix320-D Features

  • A320 Personal Mixers
  • 16 mono or stereo sources
  • 32-channel mix engine
  • Per-channel volume and Stereo Placement
  • Eight customizable mix presets
  • Three-band master tone controls optimized for in-ear monitors
  • Per-channel solo and mute
  • Compatible with existing Aviom personal mixing systems
  • D400-Dante A-Net Distributor
  • Up to 32 Dante inputs at 44.1/48kHz
  • One Dante Primary; one Dante Secondary
  • One A-Net Out
  • Simple, cost-effective connectivity for Aviom Personal Mixers
  • Provides DC power and audio data to up to 8 Personal Mixers
  • Unpowered A-Net Out for connecting additional A-Net Distributor
  • Stereo link switches for assigning stereo channels to Personal Mixers
  • Compatible with A640, A360, A320, and A-16II Personal Mixers
  • MT-1a Mic Stand Mounts
  • Attaches to any standard mic stand
  • Threaded ring nuts included
  • Cat-5e Cables
  • Flexible black jacket
  • Standard RJ45 connectors

Warranty Information

This product has a limited warranty of 12 months for parts and 12 months for labor.

Key Features

  • Experience pristine sound quality with the Aviom Mix320-D personal mixing system.
  • Customize your monitor mix with 32 channels via the Dante interface for total control.
  • Enjoy low noise performance, ensuring a clean and professional audio experience.
  • Each musician gets a personalized mix with intuitive EQ control, enhancing performances.
  • Built for durability, this Aviom mixer withstands rigorous use in live sound environments.
  • Streamline your setup with included Cat-5e cables and mic stand mounts for easy integration.

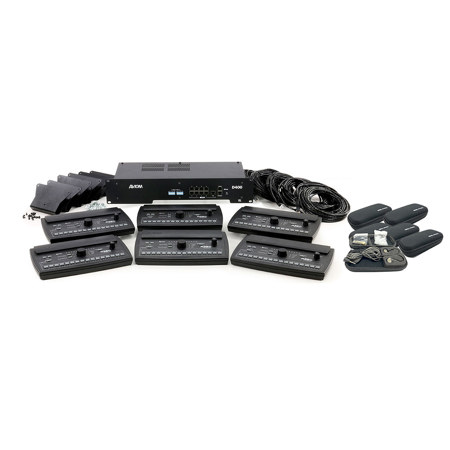

What's in the box:

  • 6x A320 Personal Mixer
  • D400-Dante A-Net Distributor
  • 6x MT-1a Mic Stand Mounts
  • 7x Cat-5e Cables
  • Aviom 1 Year Limited Warranty
