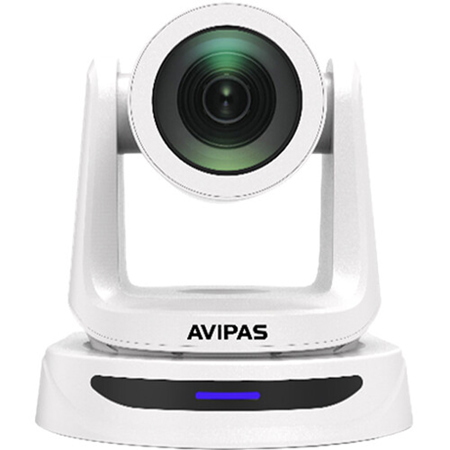

AViPAS AV-2010 Full HD USB/IP 20x PTZ Camera with PoE+ White

SKU: AVAV2010W MFR: AV-2010W
Earn VIP Reward Points

Key Features

  • Capture crystal-clear visuals with Full HD resolution, perfect for professional presentations or remote learning.
  • Experience versatile coverage with powerful optical zoom options, ensuring every detail is perfectly framed.
  • Enjoy smooth, rapid pan/tilt movements, ideal for dynamic event recording or interactive video conferencing.
  • Perform reliably in diverse lighting conditions, from bright studios to dimly lit conference rooms, with low light sensitivity.
  • Benefit from flexible connectivity options, including USB and IP, for seamless integration into any existing setup.
  • Save and recall multiple preset camera positions instantly, streamlining your workflow for recurring events.
See More Product Details
Special Order?Estimated to Ship: 07/03/2026
Free Shipping

See Options

1
Add to ListGet Sale Alert

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What video resolutions does the AV-2010 Full HD PTZ Camera support?

The AV-2010 PTZ Camera supports Full HD video resolution up to 1920x1080.

Can the AV-2010 PTZ Camera be used with any video conferencing software?

Yes, the AV-2010 PTZ Camera is compatible with a wide range of video conferencing and streaming software thanks to its IP (PoE+) and USB 2.0 video output interfaces.

Does the AV-2010 PTZ Camera offer remote control capabilities?

Yes, the camera supports multiple control protocols including VISCA, PELCO-P, PELCO-D, ONVIF, and VISCA over IP, allowing for remote control over both TCP and UDP.

What audio features does the AV-2010 PTZ Camera include?

The AV-2010 PTZ Camera includes line-in function, AAC, and LPCM audio encoding, ensuring clear and high-quality sound.

What is the zoom capability of the AV-2010 PTZ Camera?

The camera comes with a 20x optical zoom and an additional 2x digital zoom, allowing for detailed image capture at various distances.

Reviews about this item

Review Summary

AViPAS AV-2010 Specifications

  • Video Format

    USB: 1920x1080P30; 1280x720P30; 1024x576P30; 960x540P30; 720x576P30; 640x480P30; 640x360P30; 352x288P30; 320x240P30
    RJ45: 1920x1080@3-30 / 1280x720@3-30 / 1024x576 @3-30 (Main stream); 1280x720@3-30 / 1024x576@3-30 / 640x360 @3-30 (Sub stream)

  • Video Interface

    RJ45, USB2.0

  • Sensor

    1/2.8" 2.1MP CMOS sensor

  • Zoom

    f4.9-98mm, F1.5-3.0 View angle: 60 Degree (Far)-3.23 Degree (Near)

  • Rotation Angle

    Pan: -170 Degree - +170 Degree Tilt: -90 Degree - +90 Degree

  • Rotation Speed

    Pan: 0 Degree -120 Degree /s Tilt: 0 Degree -80 Degree /s

  • Preset

    Remote controller: 10
    RS232: 128
    Accuracy: 0.1 Degree

  • Control Port

    RS232, RJ45 (VISCA over IP), USB2.0(UVC1.1)

  • Network Speed

    1000M

  • Video encode

    H.264/H.265 (default: H.264)

  • Bit Rate Control

    Variable Bit Rate, Constant Bit Rate

  • Video Bit Rate

    1024Kbps-16384Kbps

  • IP Protocol

    TCP/IP, HTTP, RTSP, RTMP, DHCP, Onvif, VISCA over IP, NTP

  • POE+

    Support

  • Daisy Chain

    RS232 serial daisy chain (up to 7 units under VISCA protocol)

  • Minimum Lux

    0.1 Lux (F1.5)

  • White Balance

    Auto/Indoor/Outdoor/Manual/AWT/PUSH

  • Exposure

    Auto/Manual/Bright/Shutter/Iris

  • Focus

    Auto/Manual

  • Iris

    Auto/Manual

  • Electric Shutter

    Auto/Manual

  • Gamma

    Support

  • WDR

    Support

  • BLC

    Support

  • 2D/3D Noise Reduction

    Support

  • Anti-Flicker

    OFF/50Hz/60Hz

  • H/V Flip

    Support

  • Input Voltage

    DC12V/ POE+

  • Dimensions

    6.6 x 6.6 x 7.1" (167.5 x 168 x 180.5mm)

  • Weight

    3.1 lbs (1.4kg)

  • UPC Codes

    White: 858738005671 | Dark Gray: 858738005688

About AViPAS AV-2010

Let the AV-2010 Full HD USB/IP 20x PTZ Camera with PoE+ elevate your video conferencing experience. This high-tech camera is equipped with a 1/2.8-inch 2.1MP sensor, enhanced by an advanced ISP, to deliver crystal clear, full HD video. The sophisticated 20x optical zoom and 2x digital zoom lens offer a wide 60-degree field of view, providing exceptional flexibility in framing shots and capturing intricate details from afar.

With a resolution reaching up to 1920 x 1080 and a frame rate of up to 30fps, this innovative camera ensures smooth, high-quality video transmission. It supports both H.264 and H.265 video compression, ensuring efficient data usage with minimal network delay.

The AV-2010 is designed for seamless integration, featuring both IP (PoE+) and USB 2.0 video output interfaces, making it compatible with any video conferencing or streaming software. It also supports line-in function, AAC, and LPCM audio encoding, ensuring superior audio quality to match its impressive visuals.

Control protocol options are abundant, including VISCA, PELCO-P, PELCO-D, ONVIF, and VISCA over IP, providing flexibility over both TCP and UDP. This state-of-the-art PTZ camera is the perfect solution for businesses seeking advanced, reliable, and high-quality video conferencing capabilities.

AViPAS AV-2010 Features

  • Adopts advanced ISP, 1/2.8-inch 2.1MP sensor, providing full HD video resolution
  • High-quality 20x optical zoom, 2x digital zoom lens with 60-degree field of view
  • IP, USB video output interface, compatible with different applications
  • Advanced focusing algorithm: fast and precise focusing performance during movement
  • Smooth PTZ mechanism, accurate pan tilt motor control
  • Up to 128 presets available
  • White balance/ Exposure/ Focus/ Iris can be adjusted automatically or manually
  • Support PoE+: one single CAT5/6 for video, control and power, highly efficient video encoding
  • Support line-in function, AAC and LPCM audio encoding
  • Support VISCA, PELCO-P, PELCO-D, ONVIF and VISCA over IP control protocol; IP VISCA over both TCP and UDP
  • Support RS232 daisy chain, up to 7 cameras under VISCA protocol
  • Support upside-down (ceiling) installation, H/V flip
  • Support RS232/UVC control
  • Standard UVC1.1 protocol, seamlessly compatible with all major video conferencing software and platforms

Key Features

  • Capture crystal-clear visuals with Full HD resolution, perfect for professional presentations or remote learning.
  • Experience versatile coverage with powerful optical zoom options, ensuring every detail is perfectly framed.
  • Enjoy smooth, rapid pan/tilt movements, ideal for dynamic event recording or interactive video conferencing.
  • Perform reliably in diverse lighting conditions, from bright studios to dimly lit conference rooms, with low light sensitivity.
  • Benefit from flexible connectivity options, including USB and IP, for seamless integration into any existing setup.
  • Save and recall multiple preset camera positions instantly, streamlining your workflow for recurring events.

What's in the box:

  • AViPAS AV-2010 Full HD USB/IP 20x PTZ Camera with PoE+
  • Power Adapter
  • Power Cord
  • RS-232 Control Cable
  • USB2.0 Cable
  • Remote Controller
  • User Manual
  • AViPAS 2 Year Limited Warranty
