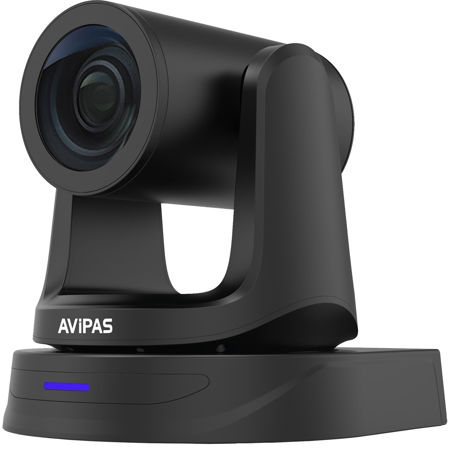

AViPAS AV-2020 Full HD All-In-One 20x PTZ Camera with PoE+ Dark Gray

SKU: AVAV2020G MFR: AV-2020G
Earn VIP Reward Points

Key Features

  • Experience crystal-clear Full HD 1080p video resolution, perfect for professional broadcasts and conferences.
  • Enjoy versatile connectivity with HDMI, 3G-SDI, USB, and Ethernet options for seamless integration.
  • Capture every detail with powerful optical zoom capabilities, ensuring sharp images from any distance.
  • Benefit from fast and precise pan/tilt movements, allowing you to track subjects smoothly and efficiently.
  • Achieve excellent video quality even in challenging lighting conditions, thanks to superior low-light performance.
  • Simplify installation and power with Power over Ethernet (PoE+) support, reducing cable clutter and setup time.
See More Product Details
Special Order?Estimated to Ship: 07/03/2026
Free Shipping

See Options

1
Add to ListGet Sale Alert

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the resolution and frame rate of the AV-2020 Full HD All-In-One 20x PTZ Camera?

The AV-2020 PTZ Camera delivers Full HD resolution up to 1920 x1080 pixels and a frame rate of up to 60fps for smooth motion capture.

What video compression does the AV-2020 PTZ Camera support?

The AV-2020 supports H.264 and H.265 video compression, ensuring low network delay for high-quality video conferencing or streaming.

What audio encoding does the AV-2020 PTZ Camera support?

The AV-2020 supports line-in audio through IP, with embedded audio through IP only. It also supports AAC and LPCM audio encoding for clear and crisp sound.

What control protocol options does the AV-2020 PTZ Camera offer?

The AV-2020 offers versatile control protocol options, including VISCA, PELCO-P, PELCO-D, VISCA over IP (over both TCP and UDP), and ONVIF.

What is the field of view of the AV-2020 PTZ Camera?

The AV-2020 features a 20x optical zoom lens with a wide 60-degree field of view, ensuring clear, distortion-free imaging within a 100-foot range.

Reviews about this item

Review Summary

AViPAS AV-2020 Specifications

  • Video Format

    HDMI: 1920x1080P60/59.94/50/30/29.97/25/24; 1920x1080I60/59.94/50
    1280x720P60/59.94/50/30/29.97/25

    SDI: 1920x1080P60/59.94/50/30/29.97/25/24; 1920x1080I60/59.94/50
    1280x720P60/59.94/50/30/29.97/25

    USB: 1920x1080P30; 1280x720P30; 1024x576P30; 960x540P30; 720x576P30; 640x480P30; 640x360P30; 352x288P30; 320x240P30

  • Video Format (Contd.)

    RJ45: 1920x1080@1-30 / 1280x720@1-30 / 1024x576 @1-30 (Main stream)
    1280x720@1-30 / 1024x576@1-30 / 640x360 @1-30 (Sub stream)

  • Video Interface

    HDMI,3G-SDI, RJ45, USB2.0

  • Sensor

    1/2.8" 2.1MP CMOS sensor

  • Zoom

    f4.9-98mm, F1.5-3.0 View angle: 60 Degree (Far)-3.23 Degree (Near)

  • Rotation Angle

    Pan: -170 Degree - +170 Degree Tilt: -90 Degree - +90 Degree

  • Rotation Speed

    Pan: 0 Degree -120 Degree /s Tilt: 0 Degree -80 Degree /s

  • Preset

    Remote controller: 10; RS232: 128; Accuracy: 0.1 Degree

  • Control Port

    RS232, RJ45 (VISCA over IP, ONVIF), USB2.0 (UVC1.1)

  • Network Speed

    100M

  • Video encode

    H.264/H.265 (default: H.264)

  • Bit Rate Control

    Variable Bit Rate, Constant Bit Rate

  • Video Bit Rate

    0Kbps-15360Kbps

  • IP Protocol

    TCP/IP, HTTP, RTSP, RTMP, DHCP, Onvif

  • PoE+

    Support

  • Daisy Chain

    RS232 serial daisy chain (up to 7 units under VISCA protocol)

  • Minimum Lux

    0.1 Lux ( F1.5)

  • White Balance

    Auto/Indoor/Outdoor/Manual/AWT/PUSH

  • Exposure

    Auto/Manual/Bright/Shutter/Iris

  • Focus

    Auto/Manual

  • Iris

    Auto/Manual

  • Electric Shutter

    Auto/Manual

  • Gamma

    Support

  • WDR

    Support

  • BLC

    Support

  • 2D/3D Noise Reduction

    Support

  • Anti-Flicker

    OFF/50Hz/60Hz

  • H/V Flip

    Support

  • Input Voltage

    DC12V/ PoE+

  • Power Consumption

    11W

  • Dimensions

    6.6 x 6.6 x 7.1" (67.5 x 168 x 180.5mm)

  • Weight

    3.1 lbs (1.4kg)

  • UPC Codes

    Dark Gray: 858738005596 | White: 858738005640

About AViPAS AV-2020

Overwhelm your senses with the AV-2020 Full HD All-In-One 20x PTZ Camera, a top-tier choice for professional video conferencing and streaming. This sleek camera boasts a 1/2.8 inch 2.1MP sensor, coupled with an advanced ISP, to deliver high-definition video quality. Experience the clarity of Full HD resolution, reaching up to 1920 x1080 pixels, and enjoy smooth motion capture with a frame rate of up to 60fps.

The AV-2020 stands out with its 20x optical zoom lens, offering a wide 60-degree field of view. This feature ensures clear, distortion-free imaging within a 100-foot range, making it an ideal choice for various settings, from conference rooms to lecture halls.

Equipped with H.264 and H.265 video compression capabilities, this PTZ camera ensures low network delay, maintaining the quality of your live streams or video conferences. The AV-2020 is designed with multiple video output interfaces, including IP (PoE+), HDMI, 3G-SDI, and USB2.0, making it compatible with any video conferencing or streaming software.

For superior audio quality, the AV-2020 supports line-in audio through IP, with embedded audio through IP only. It also supports AAC and LPCM audio encoding, ensuring clear and crisp sound to accompany your high-definition video.

Control protocol options are versatile, including VISCA, PELCO-P, PELCO-D, VISCA over IP (over both TCP and UDP), and ONVIF. This makes the AV-2020 a flexible and adaptable choice for various video communication needs.

In summary, the AV-2020 Full HD All-In-One 20x PTZ Camera with PoE+ is a comprehensive solution for your professional video and audio needs, offering superior quality, versatility, and compatibility.

AViPAS AV-2020 Features

  • Advanced ISP, 1/2.8 inch 2.1MP sensor, providing full HD video
  • 20x optical zoom lens, 2x digital zoom with 60-degree FOV
  • IP (PoE+), HDMI, 3G-SDI, USB2.0 video output interface
  • White Balance/ Exposure/ Focus/ Iris can be adjusted manually
  • Support PoE: one single CAT5/6 for video, control, and power
  • Support line-in audio function: through IP stream only. AAC and LPCM audio encoding
  • Control options: RS232/UVC1.1; Control protocol options: VISCA, PELCO-P, PELCO-D, VISCA over IP and ONVIF
  • Support daisy chain, max 7 cameras connected under VISCA protocol

Key Features

  • Experience crystal-clear Full HD 1080p video resolution, perfect for professional broadcasts and conferences.
  • Enjoy versatile connectivity with HDMI, 3G-SDI, USB, and Ethernet options for seamless integration.
  • Capture every detail with powerful optical zoom capabilities, ensuring sharp images from any distance.
  • Benefit from fast and precise pan/tilt movements, allowing you to track subjects smoothly and efficiently.
  • Achieve excellent video quality even in challenging lighting conditions, thanks to superior low-light performance.
  • Simplify installation and power with Power over Ethernet (PoE+) support, reducing cable clutter and setup time.

What's in the box:

  • AViPAS AV-2020 Full HD All-In-One 20x PTZ Camera with PoE+
  • Power Adapter
  • Power Cord
  • RS-232 Control Cable
  • USB2.0 Cable
  • Remote Controller
  • User Manual
  • AViPAS 2 Year Limited Warranty
