Aviom Mix320-D Personal Mixing System, Includes 6x A320 Personal Mixer, D400-Dante A-Net Distributor and 6x MEE Audio M6 Pro In-Ear Monitors

SKU: AVMIX320DMEE MFR: MIX320-D-MEE
Earn VIP Reward Points

Key Features

  • Experience crystal-clear audio with these MEE Audio in-ear monitors, perfect for live performances.
  • Enjoy a comfortable and secure fit with multiple ear tip sizes for extended studio sessions.
  • Achieve excellent noise isolation, blocking distractions for focused monitoring on stage.
  • Durable construction ensures these in-ear monitors withstand the rigors of touring and travel.
  • Low latency design provides real-time audio feedback for seamless performances every time.
  • Get incredible value with these high-quality in-ear monitors, offering pro features at a great price.
See More Product Details
Special Order?Estimated to Ship: 09/06/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$499.99

3 Year

$649.99

5 Year

$949.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Aviom Mix320-D Specifications

Personal Mixer

Personal Mixer

Jump to...
  • Audio Output

    1/4" TRS stereo, headphone or line level

  • Stereo Mix Output, Headphone/Line

    Tip: Audio Left;
    Ring: Audio Right;
    Sleeve: Ground

  • A-Net I/O

    1 A-Net In, RJ45 connector;
    Supports Pro16 and Pro16e

  • D/A Conversion

    44.1/48kHz, 24-bit

  • Stereo Operation

    Stereo Link, per channel pair;
    Set at the input module;
    Variable pan per mono channel or pan/spread per stereo channel pair

  • Headphone Output

    275 mW per side into 50 Ohms (both sides driven)

  • Output Impedance

    5 Ohms

  • Freq. Response

    3Hz-22kHz +0.2dB/-3dB at 50 Ohms

  • THD +N

    < 0.003%

  • Output Voltage for Personal Mixers

    24VDC, 0.5 amp
    Transmitted over the Cat-5e cable

  • Signal to Noise (unweighted)

    -106dB (measured with zero data into all channels)

  • Latency

    0.880 msec (measured from analog input to analog output)

  • Pro16e A-Net

    Use Cat-5e (or better) cable;
    Maximum 400 ft (122 m) between devices;
    Supports Power Over A-Net

  • Cat-5 cable

    Use shielded Cat-5e (or better) cable to stay below the CISPR 22 Class B, ICES-003 and FCC 47 CFR Part 15 Class B emissions limits

  • Power

    24 VDC, 0.5 amp;
    Power is supplied over the Cat-5 cable when connected to an Aviom A-Net Distributor

A-Net Distributor

Jump to...
  • Dante Interface

    32 channels (44.1/48kHz Sample Rate)

  • Dante Primary I/O

    RJ45 connector

  • Dante Secondary I/O

    RJ45 connector

  • Dante LEDs

    Network Activity (green);
    1GB Network Connection Active (yellow)

  • A-Net Out to Personal Mixers

    Eight RJ45 connectors, powered

  • A-Net Out

    Pro16e A-Net;
    RJ45 connector, unpowered

  • LEDs

    Power On (red); Network Sync (green)

  • Stereo Link

    Two 8-position DIP switch blocks (1-16, 17-32)

  • Output Voltage for Personal Mixers

    24VDC, 0.5 amp
    Transmitted over the Cat-5e cable

  • A-Net Cables

    Front Panel Connections: Shielded Cat-5e (or better) cable must be used to stay below the CISPR 22 Class B, ICES-003 and FCC 47 CFR Part 15 Class B emissions limits.
    Unshielded Cat-5e cable may be used on all rear panel connections

  • Power Supply

    Internal, IEC connector

  • Input Voltage

    100-120 VAC or 200-240 VAC (with selector switch); 50-60Hz at 220 W max

  • AC Fuse Types

    115V range: T2.5AL/250V
    230V range: T1.25AL/250V

In-Ear Monitors

Jump to...
  • Earpiece: Design

    In-Ear (Intra-Aural)

  • Earpiece: Driver Size

    0.39" (10mm)

  • Earpiece: Driver Type

    Dynamic

  • Earpiece: Number of Drivers

    1, per earpiece

  • Earpiece: Active Noise Cancellation

    No

  • General: Frequency Response

    20 Hz to 20 kHz

  • General: Sensitivity

    100 dB at 1 kHz / 1 mW

  • General: Impedance

    16 Ohms

  • General: Maximum Power Handling

    30 mW

  • Microphone: Pickup Pattern

    Omni-Directional

  • Microphone: Frequency Response

    100 Hz to 10 kHz

  • Microphone: Sensitivity

    -42 dB

  • Connectivity: Audio Connector

    1/8" (3.5mm) TRS Right-Angled
    1/8" (3.5mm) TRRS Right-Angled

  • Connectivity: Adapter (Included)

    1/4" (6.3mm) TRS

  • Cable: Design

    Y-Type

  • Cable: Detachable

    Yes

  • Cable: In-Line Remote/Microphone

    Yes

  • Cable: Full Remote OS Support

    Android, iOS

  • Cable: Cable Length

    72" (182.88cm)

  • IP Rating

    IPX5

General

Jump to...
  • Dimensions

    Personal Mixer (WxDxH): 10.26 x 6.14 x 1.91" (26.06 x 15.60 x 4.85cm)
    A-Net Distributor (WxDxH): 19 x 7.39 x 3.5" (48.26 x 18.77 x 8.89cm), 2U
    Mic Stand Mount (Front WxH): 6.3 x 3.0" (16.00 x 7.62cm)
    Mic Stand Mount (Rear WxH): 4.5 x 3.0" (11.43 x 7.62cm)

  • Weight

    Personal Mixer: 1.3 lbs (0.59kg)
    A-Net Distributor: 12.0 lbs (5.44kg)

About Aviom Mix320-D

Enhance your audio production and personal mixing experience with the Mix320-D Personal Mixing System. Specifically designed for use with Dante-enabled mixing consoles and networks, this high-quality system is your all-in-one solution for professional audio mixing.

The Mix320-D Personal Mixing System is a comprehensive package that includes six A320 Personal Mixers, a D400-Dante A-Net Distributor, and six MEE Audio M6 Pro In-Ear Monitors. The A320 Personal Mixers are powered and receive digital data over the same cable, simplifying setup and operation. All you need is a Cat-5 cable, and your personal mixing system is ready to go.

The A320 Personal Mixer offers musicians intuitive control over their monitor mixes, featuring a 32-channel mix engine with 16 mono or stereo mix channels buttons and user-friendly Stereo Placement controls. Simply connect your headphones, ear buds, or wireless in-ear monitoring system to the Personal Mixer, and you're ready to start mixing.

The D400-Dante A-Net Distributor included in the system serves a dual purpose. It distributes A-Net digital data and DC power to the A320 Personal Mixers, and also functions as the system's input device. It allows up to 32 channels from your Dante network to be assigned to the eight powered A-Net ports on its front panel. Stereo Link switches enable adjacent channels to be treated as stereo pairs on the A320 Personal Mixers, where they will appear on a single mix channel button.

The system also includes six MEE Audio M6 Pro In-Ear Monitors. These professional-grade IEMs feature detachable, replaceable cords and come with a variety of flexible ear tips that reduce outside noise and ensure a comfortable fit. Each IEM set also includes custom-engraved metal faceplates and a protective case.

In summary, the Mix320-D Personal Mixing System is a durable, innovative, and advanced solution for personal mixing and audio production. It's perfect for performers who need a reliable, high-quality audio system that offers easy networking and control.

Aviom Mix320-D Features

  • High-quality personal mixing system, ideal for use with Dante-enabled mixing consoles and networks
  • Includes six A320 Personal Mixers with intuitive controls and a 32-channel mix engine
  • Features a D400-Dante A-Net Distributor for easy distribution of A-Net digital data and DC power
  • Provides six MEE Audio M6 Pro In-Ear Monitors with detachable, replaceable cords and flexible ear tips
  • Complete audio system with Stereo Link switches for treating adjacent channels as stereo pairs
  • Designed for professional audio production & personal mixing, offering easy networking & control

Warranty Information

This product has a limited warranty of 12 months for parts and 12 months for labor.

Key Features

  • Experience crystal-clear audio with these MEE Audio in-ear monitors, perfect for live performances.
  • Enjoy a comfortable and secure fit with multiple ear tip sizes for extended studio sessions.
  • Achieve excellent noise isolation, blocking distractions for focused monitoring on stage.
  • Durable construction ensures these in-ear monitors withstand the rigors of touring and travel.
  • Low latency design provides real-time audio feedback for seamless performances every time.
  • Get incredible value with these high-quality in-ear monitors, offering pro features at a great price.

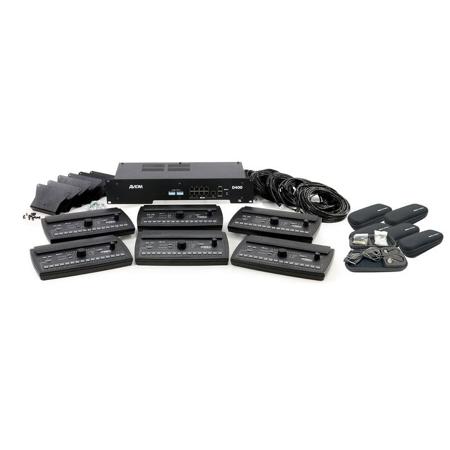

What's in the box:

  • 6x Aviom A320 Personal Mixer
  • D400-Dante A-Net Distributor
  • 6x MT-1a Mic Stand Mounts
  • 7x Cat-5e Cables
  • 6x MEE Audio M6 Pro In-Ear Monitors
  • 72 " Cable
  • Assortment of Ear Tips
  • Case
  • Aviom 1 Year Warranty
