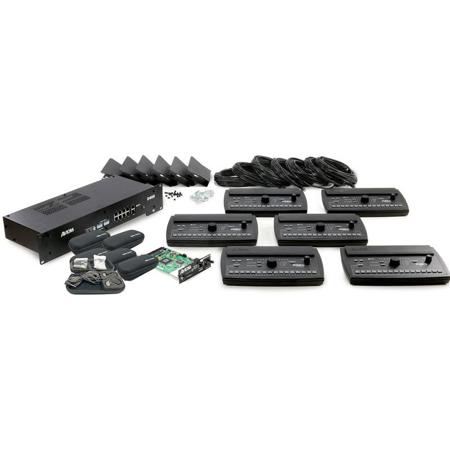

Aviom Mix320-Y Personal Mixing System, Includes 6x A320 Personal Mixer, Y1 A-Net Card for Yamaha, D400 A-Net Distributor and 6x MEE Audio M6 Pro In-Ear Monitors

SKU: AVMIX320YMEE MFR: MIX320-Y-MEE
Earn VIP Reward Points

Key Features

  • Experience crystal-clear audio with these MEE Audio in-ear monitors, perfect for musicians.
  • Enjoy superior comfort with multiple ear tip sizes, ensuring a snug fit for long sessions.
  • Achieve excellent noise isolation, blocking distractions for focused monitoring on stage.
  • Rely on detachable, durable cables for longevity and easy replacement of your in-ear monitors.
  • Seamlessly connect to your Aviom system with included cables for immediate use, low latency.
  • Utilize the in-line remote for convenient control during live performances and practice.
See More Product Details
Special Order?Estimated to Ship: 08/13/2025
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

2 Year

$499.99

3 Year

$649.99

5 Year

$949.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Aviom Mix320-Y Specifications

Personal Mixer

Personal Mixer

Jump to...
  • Audio Output

    1/4" TRS stereo, headphone or line level

  • Stereo Mix Output, Headphone/Line

    Tip: Audio Left;
    Ring: Audio Right;
    Sleeve: Ground

  • A-Net I/O

    1 A-Net In, RJ45 connector;
    Supports Pro16 and Pro16e

  • D/A Conversion

    44.1/48kHz, 24-bit

  • Stereo Operation

    Stereo Link, per channel pair;
    Set at the input module;
    Variable pan per mono channel or pan/spread per stereo channel pair

  • Headphone Output

    275 mW per side into 50 Ohms (both sides driven)

  • Output Impedance

    5 Ohms

  • Freq. Response

    3Hz-22kHz +0.2dB/-3dB at 50 Ohms

  • THD +N

    < 0.003%

  • Output Voltage for Personal Mixers

    24VDC, 0.5 amp
    Transmitted over the Cat-5e cable

  • Signal to Noise (unweighted)

    -106dB (measured with zero data into all channels)

  • Latency

    0.880 msec (measured from analog input to analog output)

  • Pro16e A-Net

    Use Cat-5e (or better) cable;
    Maximum 400 ft (122 m) between devices;
    Supports Power Over A-Net

  • Cat-5 cable

    Use shielded Cat-5e (or better) cable to stay below the CISPR 22 Class B, ICES-003 and FCC 47 CFR Part 15 Class B emissions limits

  • Power

    24 VDC, 0.5 amp;
    Power is supplied over the Cat-5 cable when connected to an Aviom A-Net Distributor

A-Net Card

Jump to...
  • A-Net Pro16 Output

    16 channels of A-Net digital data;
    8 channels on PM1D

  • Interface Format

    Yamaha mini-YGDAI (MY) Expansion Card

  • Maximum Expansion

    Limited only by the number of available MY expansion slots in the digital mixer

  • Sample Rate

    44.1kHz to 48kHz, +/-10%

  • Digital Conversion

    24-bit

  • A-Net Output

    A-Net Out: 1; etherCON RJ45 connector

  • DIP Switch

    Switch 1-8: Stereo Link on/off
    Switch 9-10: A-Net mode
    A-Net Modes: 8-channel, 16-channel, Aviom, Test

  • A-Net Pro16

    A-Net allows 16 channels of audio to be transmitted over one Cat-5e cable
    Use unshielded Cat-5e UTP (or better) cable;
    Max. length 500 feet (150m) between devices

  • Latency

    <0.880 msec (measured from analog input to analog output)

  • Power Supply

    Not required
    Uses Yamaha host device as source of power

A-Net Distributor

Jump to...
  • A-Net Input

    Pro16 or Pro16e A-Net;
    RJ45 connector

  • A-Net Offset Base Slot

    2-position DIP switch selects the starting channel that Personal Mixers will receive from the network (1, 17, 33, or 49)

  • Defeat Stereo Switches

    Chooses between local (front panel) stereo links (up) or network stereo links (down)

  • A-Net Out to Personal Mixers

    Eight RJ45 connectors, powered

  • A-Net Out

    Pro16e A-Net;
    RJ45 connector, unpowered

  • LEDs

    Power On (red); Network Sync (green)

  • Stereo Link

    Two 8-position DIP switch blocks (1-16, 17-32)

  • Output Voltage for Personal Mixers

    24VDC, 0.5 amp
    Transmitted over the Cat-5e cable

  • A-Net Cables

    Front Panel Connections: Shielded Cat-5e (or better) cable must be used to stay below the CISPR 22 Class B, ICES-003 and FCC 47 CFR Part 15 Class B emissions limits.
    Unshielded Cat-5e cable may be used on all rear panel connections

  • Power Supply

    Internal, IEC connector

  • Input Voltage

    100-120 VAC or 200-240 VAC (with selector switch); 50-60Hz at 220 W max

  • AC Fuse Types

    115V range: T2.5AL/250V
    230V range: T1.25AL/250V

In-Ear Monitors

Jump to...
  • Earpiece: Design

    In-Ear (Intra-Aural)

  • Earpiece: Driver Size

    0.39" (10mm)

  • Earpiece: Driver Type

    Dynamic

  • Earpiece: Number of Drivers

    1, per earpiece

  • Earpiece: Active Noise Cancellation

    No

  • General: Frequency Response

    20 Hz to 20 kHz

  • General: Sensitivity

    100 dB at 1 kHz / 1 mW

  • General: Impedance

    16 Ohms

  • General: Maximum Power Handling

    30 mW

  • Microphone: Pickup Pattern

    Omni-Directional

  • Microphone: Frequency Response

    100 Hz to 10 kHz

  • Microphone: Sensitivity

    -42 dB

  • Connectivity: Audio Connector

    1/8" (3.5mm) TRS Right-Angled
    1/8" (3.5mm) TRRS Right-Angled

  • Connectivity: Adapter (Included)

    1/4" (6.3mm) TRS

  • Cable: Design

    Y-Type

  • Cable: Detachable

    Yes

  • Cable: In-Line Remote/Microphone

    Yes

  • Cable: Full Remote OS Support

    Android, iOS

  • Cable: Cable Length

    72" (182.88cm)

  • IP Rating

    IPX5

General

Jump to...
  • Dimensions

    Personal Mixer (WxDxH): 10.26 x 6.14 x 1.91" (26.06 x 15.60 x 4.85cm)
    A-Net Card (WxDxH): 4.75 x 6.25 x 1.5" (12.07 x 15.88 x 3.81cm)
    A-Net Distributor (WxDxH): 19 x 7.39 x 3.5" (48.26 x 18.77 x 8.89cm), 2U
    Mic Stand Mount (Front WxH): 6.3 x 3.0" (16.00 x 7.62cm)
    Mic Stand Mount (Rear WxH): 4.5 x 3.0" (11.43 x 7.62cm)

  • Weight

    Personal Mixer: 1.3 lbs (0.59kg)
    A-Net Card: 0.8 lbs (0.36kg)
    A-Net Distributor: 12.0 lbs (5.44kg)

About Aviom Mix320-Y

Take your live performances and studio recordings to the next level with the Mix320-Y Personal Mixing System. This comprehensive package includes six A320 Personal Mixers, a Y1 A-Net Card for Yamaha, a D400 A-Net Distributor, and six MEE Audio M6 Pro In-Ear Monitors, providing a complete, ready-to-use personal mixing solution for up to six performers.

Designed specifically for Yamaha digital mixing consoles, the Y1 A-Net Card effortlessly integrates into any open MY expansion slot on your console. With no complex configurations required, simply assign your desired sources from the Yamaha user interface to the card's 16 channels, and they will instantly appear on the Personal Mixer's channel buttons.

The A320 Personal Mixers receive both digital data and power via the same cable, streamlining your setup process. Simply connect a Cat-5 cable and your system is ready to go. This all-in-one monitoring system is available in two versions, catering to both seasoned performers with their own in-ear monitors or headphones, and newcomers to personal mixing who require IEMs.

The enhanced version of the Mix320-Y Personal Mixing System includes six MEE Audio M6 Pro in-ear monitors. These single-driver IEMs come complete with a 72-inch cable, a variety of ear tips for optimal comfort and fit, and a protective case.

The Mix320-Y Personal Mixing System sources its inputs from a Y1 A-Net card installed in your Yamaha digital mixing console. The included D400 A-Net Distributor supplies A-Net digital data and DC power to the mixers. The package also includes six MT-1a Mic Stand Mounts for attaching the A320 mixers to mic stands, and all the Cat-5e cables required for connecting the components.

The A320 Personal Mixer offers musicians straightforward, intuitive control over their monitor mixes. With 16 mono or stereo mix channel buttons, individual volume controls, and user-friendly Stereo Placement controls, you can plug in your headphones, earbuds, or wireless in-ear monitoring system and start mixing immediately.

The Y1 A-Net Card for Yamaha allows up to 16 sources from the console to be assigned as inputs to the personal mixing system. You can assign any combination of channels, direct outputs, aux sends, groups, or sub-mixes from the Yamaha console user interface to the Y1 card.

The D400 A-Net Distributor included in the system distributes the A-Net digital data and DC power to the A320 Personal Mixers. Simply connect the console card to the distributor's A-Net In and use the D400's powered A-Net ports for connecting Personal Mixers.

The enhanced version of the Mix320-A system includes six MEE Audio M6 Pro IEMs. These earbuds feature detachable, replaceable cords and come with an assortment of flexible ear tips that reduce outside noise and ensure a comfortable fit. Each IEM set also includes custom-engraved metal faceplates and a protective case.

Aviom Mix320-Y Features

  • Comprehensive personal mixing system designed for Yamaha digital mixing consoles
  • Includes six A320 Personal Mixers, a Y1 A-Net Card for Yamaha, a D400 A-Net Distributor, and six MEE Audio M6 Pro In-Ear Monitors
  • Easy integration and setup with no complex configurations required
  • A320 Personal Mixers offer straightforward, intuitive control over monitor mixes
  • Enhanced version includes six MEE Audio M6 Pro IEMs with detachable, replaceable cords and custom-engraved metal faceplates
  • Package includes all necessary components for immediate use, including six MT-1a Mic Stand Mounts and Cat-5e cables for connectivity

Warranty Information

This product has a limited warranty of 12 months for parts and 12 months for labor.

Key Features

  • Experience crystal-clear audio with these MEE Audio in-ear monitors, perfect for musicians.
  • Enjoy superior comfort with multiple ear tip sizes, ensuring a snug fit for long sessions.
  • Achieve excellent noise isolation, blocking distractions for focused monitoring on stage.
  • Rely on detachable, durable cables for longevity and easy replacement of your in-ear monitors.
  • Seamlessly connect to your Aviom system with included cables for immediate use, low latency.
  • Utilize the in-line remote for convenient control during live performances and practice.

What's in the box:

  • 6x Aviom A320 Personal Mixer
  • Y1 A-Net Card for Yamaha
  • D400 A-Net Distributor
  • 6x MT-1a Mic Stand Mounts
  • 7x Cat-5e Cables
  • 6x MEE Audio M6 Pro In-Ear Monitors
  • 72 " Cable
  • Assortment of Ear Tips
  • Case
  • Aviom 1 Year Warranty
