Avinair Spectre 7" Dual Rack LED Monitor, HDMI, 3G/HD/SD-SDI, Video & Audio
See all Avinair items

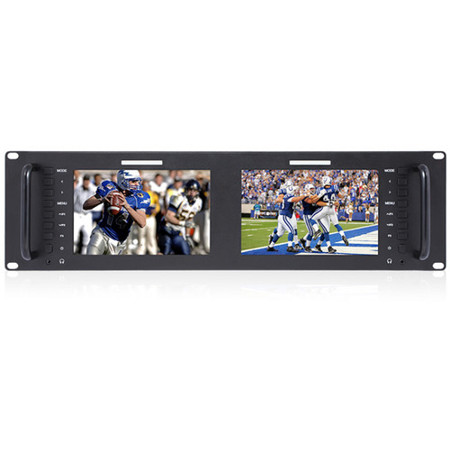

Avinair Spectre 7" IPS Dual Rack LED Monitor with HDMI, 3G/HD/SD-SDI, Video & Audio (L/R) Inputs, 1280x800

SKU: AVNRMM7X2
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Avinair Spectre Specifications

  • Screen Size

    7"

  • Resolution

    1280 x 800 pixels

  • Dot Pitch (HxV)

    0.117 x 0.117mm

  • Brightness

    400 cd/m2

  • Contrast

    800:1

  • Viewing Angle

    L/R: 89/89 deg.
    U/D: 89/89 deg.

  • Backlight

    LED

  • Control Input

    1x Ethernet

  • Video Formats

    PAL: 4.43 / NTSC: 3.58

  • Slot

    Earphone

  • Power Consumption

    <=20 W

  • Input Voltage

    9 to 24 VDC

  • Connector

    12 VDC / 4-pin XLR

  • Tally

    Red, Green and Yellow

  • Working Temperature

    -4 to 131 deg. F (-20 to 55 deg. C)

  • Storage Temperature

    -22 to 149 deg. F (-30 to 65 deg. C)

  • Inputs

    1x 3G / HD / SD-SDI
    1x HDMI
    1x Video
    1x Audio (L/R)

  • Outputs

    1x 3G / HD / SD-SDI
    1x HDMI
    1x Video

  • Modes

    SDI:
    480i, 576i, 720p (60 / 59.94 / 50 / 30 / 29 / 25 / 24 / 23.98)
    1080i (60 / 59.94 / 50)
    1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 24sF / 23.98 / 23.98sF)

    HDMI:
    480i, 576i, 720p (60 / 59.94 / 50 / 30 / 29 / 25 / 24 / 23.98)
    1080i (60 / 59.94 / 50)
    1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 24sF / 23.98 / 23.98sF)

  • Dimensions (LxWxH)

    19 x 5.2 x 1.2" (48.26 x 13.21 x 3.05cm)

  • Weight

    4.17 lbs (1.89kg)

About Avinair Spectre

The Avinair Spectre Dual Rack Monitor features 2x 7" 1280 x 800 screens for viewing of SD, HDMI and 3G-SDI videos. This lightweight rack monitor is suitable for all levels of TV news production, including broadcasting, special vehicle video surveillance and post production. With a brightness output of up to 400 nits and a 178/178 deg. viewing angle, you can see accurate and consistent images from any point of view and without brightness dots or streaking. The network control is attained by GPIO software over a single Ethernet connection.

The rack monitor is built with a full metal shell and is equipped with a 4-pin XLR DC power socket, cast iron hand grips and a variety of inputs and outputs including HDMI in/out, CVBS in/out, audio L/R and 3G/SDI in/out.

Avinair Spectre Features

  • Dual 7" IPS 1280 x 800 high-resolution screens
  • Slim design and 3RU size
  • 400 cd/m2 brightness
  • Contrast ratio of 800:1
  • HDMI, 3G/HD/SD-SDI input and loop-through
  • Image Freeze
  • Peaking Focus Assist (red highlight over parts of the monochrome image in focus)
  • Check Field (red, green, blue, mono)
  • Pixel to pixel function
  • Center marker
  • Safe marker (80%, 85%, 90%, 93%, 96%, 2.35:1)
  • Image Flip (horizontal, vertical, horizontal and vertical)
  • Smooth video transmission with no blue screen in case of a signal loss
  • Supports composite video RCA input
  • Multi-color format support for selecting the same format as your camera
  • Monitoring via front panel 3.5mm stereo headphone jacks
  • Built-in LED tally indicators (Red, Green, Yellow)
  • Can be powered via 12 VDC power supply or standard 4-pin XLR

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Avinair Spectre 7 " IPS Dual Rack LED Monitor
  • 3A Power Adapter
  • Tally Kit
  • Avinair 1 Year Limited Warranty
