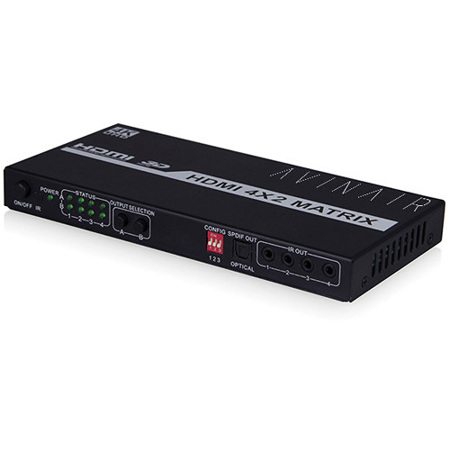

Avinair Spitfire Pro 4x2 HDMI Matrix
See all Avinair items

Avinair Spitfire Pro 4x2 HDMI Matrix

SKU: AVNSFHM402A

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Avinair HDMI Matrix Specifications

  • Video Format

    HDMI 1.4, RGB/YUV: 24/30/36 bits per pixel, 4K/2K, 1080p, 1080i, 720p, 576p, 480p, 576i, 480i

  • Audio Format

    PCM, Dolby - AC3, DTS 7.1, DSD, Maximum 8 channels

  • Interface (Inputs/Outputs)

    Inputs
    HDMI: 4x HDMI type A female
    IR: 2x IR 3.5 mm
    Outputs
    HDMI: 2x HDMI type A female
    IR: 4x IR 3.5 mm
    SPDIF: 1x TOSLINK optical port

  • Input Video Signal

    Amplitude: 0.5 to 1.0V p-p
    DDC Signal: 5V p-p (TTL)

  • Cable Distance

    Input 26 AWG Cable
    =16' / 4.88m
    =32' / 9.75m

  • Indicator LEDs

    Power: Green
    Matrix Status: Yellow

  • Temperature Range

    Operating: 32 to 104 deg. F / 0 to 40 deg. C
    Storage: -4 to 140 deg. F / -20 to 60 deg. C

  • Compliance

    FCC
    CE

  • Power

    Voltage: 5VDC
    Consumption: 1.85W

  • Dimensions

    7.9 x 3.7 x 0.87" / 200.66 x 93.98 x 22.10mm

  • UPC Code

    753807557276

About Avinair HDMI Matrix

• 2-channel HDMI 1.4b 4K x 2K ultra HD HDMI signal output up to 3.4Gbps data rate.
• Support 1080p 3D video signal
• Support 12-bit deep color
• Support audio format-LCPM 71 and other uncompressed audio formats, such as Dolby True HD, DTS-master, etc
• Support multi-channel EDID management, ensure maximum compatibility of video sources and display terminals
• HDCP 14 compatible
• Industrial metal case, easy to install
• UL, CCC, CE, FCC compliance
• Input/Output cable length:<=15m 24AWG HDMI Cable

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Avinair Spitfire Pro 4x2 HDMI Matrix
  • 5 VDC Adapter
  • IR Remote
  • 4x 59 " IR Extension Transmitter Cable
  • 2x 29.5' IR Extension Receiver Cable
  • Avinair 1 Year Limited Warranty
