Avinair Spitfire Pro Mini HDMI to VGA Converter, Plastic Case
See all Avinair items

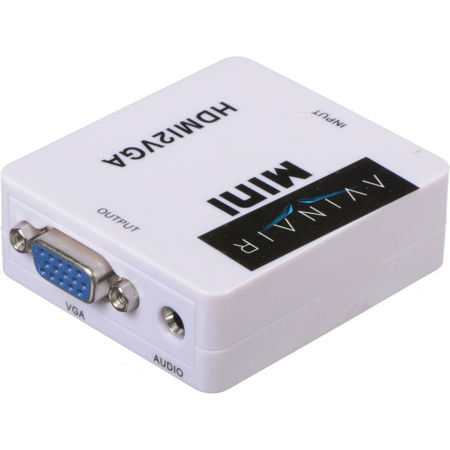

Avinair Spitfire Pro Mini HDMI to VGA Converter, Plastic Case

SKU: AVNSFHVG102B
(1)

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

2020-07-03T06:51:57

Rated 4 out of 5

Great Quality Build and Video, Needs Power Supply

Overall great quality conversion. One less start because it says it doesn’t need a power supply, but once you open the box, they give you a power supply anyway. My suspicion was it needed it even before I bought it, but I just found it funny the description and box says you don’t need it, but you need it and they provide one.

KEITH L.

Avinair Spitfire Pro Converter Specifications

  • Input Video Signal

    0.5 to 1.0 vpp

  • Input DDC Signal

    5 vpp (TTL)

  • Video Input Ports

    HDMI A female (19-pin)

  • Output Ports

    VGA, R/L

  • VGA Support

    640 x 480 (60 Hz to 75 Hz), 1024 x 768 (60 Hz to 75 Hz), 1280 x 720 (60 Hz to 75 Hz), 1280 x 768 (60 Hz to 75 Hz), 1280 x 800 (60 Hz to 75 Hz), 1280 x 960 (60 Hz to 75 Hz), 1280 x 1024 (60 Hz to 75 Hz), 1366 x 768 (60 Hz to 75 Hz), 1440 x 900 (60 Hz to 75 Hz), 1600 x 1200 (60 Hz to 75 Hz), 1920 x 1080 (60 Hz to 75 Hz)

  • SDTV/HDTV Timing Modes

    480i, 576i, 480p, 576p, 720p, 1080i, 1080p

  • Operating Frequency

    Up to 165 MHz

  • Video Amplifier Bandwidth

    1.65 GB/s / 165 MHz

  • Operating Temperature

    32 to 158 deg. F (0 to 70 deg. C)

  • Operating Humidity

    10 to 85% RH (no condensation)

  • Storage Temperature

    14 to 176 deg. F (-10 to 80 deg. C)

  • Storage Humidity

    5 to 95% RH (no condensation)

  • External Power Supply

    5 VDC

  • Dimensions (LxWxH)

    3.5 x 2.7 x 1.0" (88.90 x 68.58 x 25.40mm)

  • Weight

    0.45 lbs (0.20kg)

About Avinair Spitfire Pro Converter

Enclosed in a plastic case, the Spitfire Pro Mini HDMI to VGA Converter from Avinair turns an HDMI input signal into analog VGA output. It is compatible with any computer, TV or device with VGA and/or HDMI inputs and has seamless plug-and-play capability, as it auto-scales to any display's native resolution.

Avinair Spitfire Pro Converter Features

  • Plug-and-play capability allows automatic installation without setting
  • Capacity for extra VGA and R/L audio outputs for connecting to the PC monitor and speakers
  • HDCP pass-through

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Avinair Spitfire Pro Mini HDMI to VGA Converter
  • 5 VDC Power Adapter
  • Avinair 1 Year Limited Warranty
