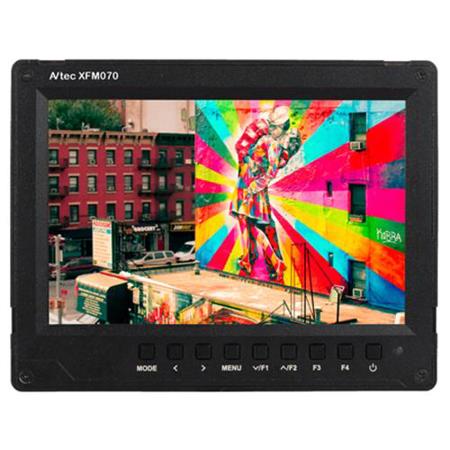

AVtec XFM070 Ultra Thin 7" Full HD On-Camera LED Monitor, 1920x1080

SKU: AVXFM070

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

AVtec XFM070 Specifications

  • Panel Size

    IPS LCD 7.0 inch

  • Panel Type

    IPS LCD

  • Resolution

    1920x1080

  • Backlight

    LED

  • Dot Pitch

    0.07875 (W) x 0.07875 (H)

  • Aspect Ratio

    16:9

  • Brightness

    400cd/sq. m

  • Contrast Ratio

    1200:1

  • Viewing Angle

    80 deg. /80 deg. (Left/Right) 80 deg. /80 deg. (Up/Down)

  • Input Signal

    Video / Audio / HDMI

  • Video Color System

    NTSC 3.58 / PAL 4.43

  • HDMI Support Format

    480i /480p /576i /576p
    720p (60/59.94/50/30/29/25/24/23.98)
    1080i (60/59.94/50)
    1080p (60/59.94/50/30/29.97/25 / 24/24fps /23.98/23.98fps)
    4K UHD 3840x2160p - (30/29.97/25/24/23.98 Hz), 2096x2160p (24 Hz)

  • Headphone Output

    Stereo 3.5mm

  • Input Voltage

    DC: 7.4-24V

  • Power Consumption

    <=8W

  • Installation Method

    1/4 inch bracket screw hole, can be easily connected to the hot shoe mount, tripod fixed installation

  • Working Temperature

    -20 to 55 deg. C (-4 to 131 deg. F)

  • Storage Temperature

    -30 to 65 deg. C (-22 to 149 deg. F)

  • Dimensions (LxWxH)

    7.09 x 5.51 x 0.67" (18.01 x 14.00 x 1.70cm)

  • Weight

    0.49kg (1.08 lbs)

About AVtec XFM070

Ultra Thin 7" Full HD Monitor
The AVtec XFM070 7" LCD On-Camera monitor is one of the best monitors of its kind. Thanks to AVtec's good price-quality ratio, many professional photographers and videographers choose for AVtec. The ultra-thin & lightweight AVtec XFM070 enables you to focus clearly on your shots and eliminate the guesswork from framing. It blows up your tiny built-in camera screen to a much larger display that enables easier viewing and won't strain your eyes.

With brightness levels of 400 cd/sq. m, a 800:1 contrast ratio and 160deg. vertical and horizontal viewing angles this monitor is a useful tool when shooting video or stills, providing you with a larger image than your camera's built-in viewfinder or LCD screen. Connect it directly to any DSLR or HD/4K video through HDMI and monitor your shots in 1920x1080 resolution on the 7" IPS LCD screen. It supports both NTSC and PAL compatible signals.

Professional Functions
Analyze focus, exposure and other characteristics with Histogram, Audio Monitoring, False Color, Exposure (Zebras), Focus Assist, Pixel-to-Pixel and alltogether over a dozen features. Assign often-used menu functions to one of the four function buttons on the front panel for quick and easy access. The focus and exposure-assist features mentioned above are only some of the image control features available on the monitor. The entire set of professional functions consists of the following 14 functions; Histogram, Audio Monitoring, Anamorphic Mode, False Color, Nine Grid Image, Exposure (Zebras), Focus Assist, Center Marker, Safe Frame, Check Field, Camera Mode, Image Flip, Pixel-to-Pixel and Image Freeze.

The monitor also features an on-screen multilingual menu where you can adjust brightness, contrast, hue, saturation etc., to fine-tune your display. The default aspect ratio is 16:9 but you can easily switch to 4:3, Panorama or Automatic in the menu. For audio monitoring, the XFM070 features a built-in speaker on the rear and a headphone output on the front panel.

Lots of Accessories Included!
The monitor comes with three interchangeable battery brackets for Canon LP-E6, Sony NP-F & BP-U batteries. Don't be afraid losing the bracket or being disconnected from the monitor, 4 screws keep the bracket and battery in place. Do you prefer using a AC/DC adapter No problem! The monitor standard comes with a power adapter supplied with 4 interchangeable plugs for international use in the US, UK, Europe and Australia / New Zealand.

The monitor is provided with a foldable sun hood and sun hood attachment to protect against glare from any bothersome light source, including sunlight. The XFM070 incorporates a 1/4"-20 threaded mounting hole and includes a ball head accessory that allows you to mount the monitor directly to your camera's hot/cold shoe. Also included is a 36" HDMI to HDMI Mini cable with a HDMI plug lock, valuable for using the AVtec XFM070 with camcorders, DSLRs and mirrorless cameras with Mini HDMI outputs.

AVtec XFM070 Features

  • Ultra Thin 7" Full HD IPS LCD Panel Aluminum housing
  • 1920x1080 HD screen, PAL/NTSC color system
  • Supports 4K UHD HDMI input
  • Built-in speaker & integrated jack port for headphones
  • Four assignable function buttons
  • Firmware upgradable through USB
  • AC/DC adapter with EU, UK, US & AU plugs included
  • Detachable sun hood attachment & foldable sun hood
  • Focus Assist, Center Marker, Safe Frames, Check Field
  • Image Freeze, Image Flip & Pixel-to-Pixel

What's in the box:

  • AVtec XFM070 Ultra Thin 7 " Full HD On-Camera LED Monitor
  • 3x Battery Bracket for NP-F/BP-U & LP-E6 Batteries
  • AC/DC Power Supply (with EU
  • UK
  • US
  • AU Adapters)
  • Sun Hood Attachment & Detachable Sun Hood
  • Ball Head with 1/4 " Camera Screw
  • 36 " HDMI to HDMI Mini Cable & HDMI Plug Lock
  • Operational Manual
  • AVtec 1 Year Warranty
