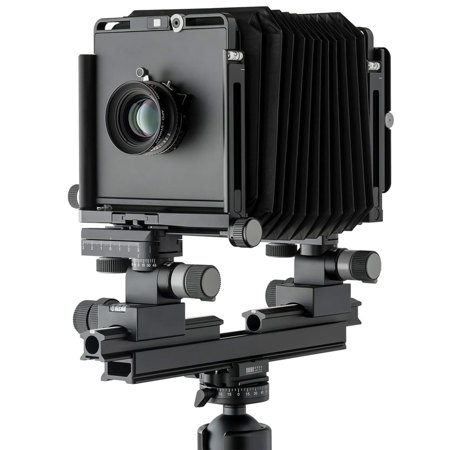

Arca Swiss F-Metric C 4x5" View Camera with Orbix Micrometric Tilt

How does the Arca Swiss F-Metric C 4x5" View Camera with Orbix Micrometric Tilt stand out in the professional photography world? This camera's design is universally appreciated by professional photographers for its unique features and superior stability. Unlike the Arca Swiss F-Classic, the F-Metric model boasts two key differences that enhance its functionality and performance.

Firstly, the horizontal displacement in the F-Metric is executed through a self-locking precision drive. This feature ensures that both the ground glass and the lens standard are guided in a dovetail-like guide during the shift, resulting in significantly improved stability.

Secondly, the F-Metric's vertical adjustment is integrated into the format frame and is performed with a self-locking fine drive. This feature makes the F-Metric an invaluable tool for architecture and landscape photographers who require precise adjustments for their work.

The F-Metric is also available in a compact version, known as the C version. This model includes a foldable optical bench instead of the extendable one, making it a more portable option for photographers on the go.

One of the standout features of this camera is the Orbix Micrometric Tilt. This option allows for the retrofitting of existing F and M Line models without the Orbix function. All that's required is the front frame of your camera. The Orbix function enables the lens to tilt in the central axis, ensuring the pendulum movement occurs in the optical axis and not in the rail plane. This feature facilitates the correct adjustment of the focal plane, providing additional latitude, particularly with short focal lengths.

The Orbix function comes in two versions: the Orbix dynamic and the Orbix micrometric. The dynamic version allows you to manually push the frame to your desired position, where it remains due to the self-locking mechanism. A 5-degree grid aids in this process. The micrometric version, on the other hand, uses a gear screw for adjustment, offering even greater precision.

In conclusion, the Arca Swiss F-Metric C 4x5" View Camera with Orbix Micrometric Tilt is a versatile and precise tool, designed to meet the demanding needs of professional photographers.
