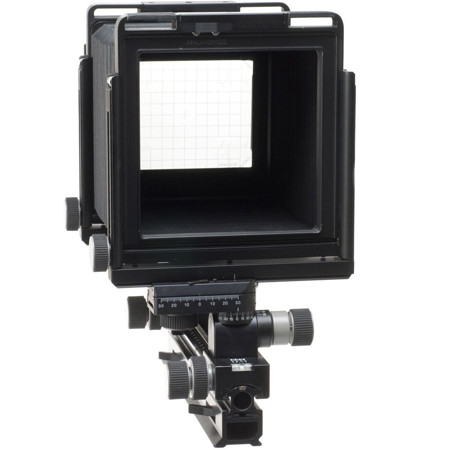

Arca Swiss F-Metric C 4x5" View Camera

SKU: AW13145

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What makes the Arca Swiss F-Metric C 4x5" View Camera different from the Arca Swiss F-Classic?

The Arca Swiss F-Metric C 4x5" View Camera has a self-locking precision drive for horizontal displacement and a self-locking fine drive for vertical adjustments, providing enhanced stability and precision. It also features a compact design with a foldable optical bench, unlike the F-Classic.

What does the 'C' in Arca Swiss F-Metric C 4x5" View Camera stand for?

The 'C' in Arca Swiss F-Metric C 4x5" View Camera stands for 'compact', indicating its user-friendly and portable design.

Who is the Arca Swiss F-Metric C 4x5" View Camera designed for?

The Arca Swiss F-Metric C 4x5" View Camera is designed for professional photographers, particularly those specializing in architecture and landscape photography.

What are the benefits of the self-locking precision drive in the Arca Swiss F-Metric C 4x5" View Camera?

The self-locking precision drive in the Arca Swiss F-Metric C 4x5" View Camera ensures superior horizontal displacement, providing photographers with greater control and stability during shoots.

Does the Arca Swiss F-Metric C 4x5" View Camera come with an extendable optical bench?

No, the Arca Swiss F-Metric C 4x5" View Camera comes with a foldable optical bench, making it a more portable and convenient option for photographers on the go.

Reviews about this item

Review Summary

2022-11-28T14:08:30

Rated 5 out of 5

Arca Swiss 8x10 camera

Give a five star, the best 8x10 camera to buy. All movement is precise geared. Excellent choice for fine art photography work.

Michael M.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Arca Swiss F-Metric Specifications

  • Tilts

    Front and Rear (base): 30 Degree forward and backward

  • Swings

    Front and Rear: 45 Degree left, right - calibrated 360 Degree swing capability

  • Rise & Fall

    Front and Rear: 3.9" (100mm) rise, geared

  • Shifts

    Front and Rear: 1.2" (30mm) left and right, geared, plus 50mm, non-geared

  • Camera Back

    4x5" Vertical/Horizontal quick-change Standard Graflok Ground glass with grid-lines, 6x7, 6x9, 6x12, Polaroid markings, fresnel screen

  • Interchangeable Bellows

    Yes

  • Minimum Extension

    With standard bellows and flat lensboard: 3.2" (80mm)
    With standard bellows, 13mm recessed lensboard: 2.6" (65mm)
    With wide-angle bellows, 13mm recessed lensboard: 2.2" (55mm)

  • Maximum Extension

    -240mm

  • Lensboard

    141 x 141mm Arca Swiss

  • Dimensions

    11.8 x 8.2 x 13" (30 x 20 x 34 cm)

  • Weight

    7.93 lbs (3.6kg)

About Arca Swiss F-Metric

FEATURED REVIEWS

Arca Swiss 8x10 camera

By Michael M.

Give a five star, the best 8x10 camera to buy. All movement is precise geared. Excellent choice for fine art photography work.

For professional photographers seeking a reliable and high-quality tool, the Arca Swiss F-Metric C 4x5" View Camera stands out as a superior choice. This camera's design is a testament to its versatility, making it a favorite among both architecture and landscape photographers.

The Arca Swiss F-Metric C 4x5" View Camera boasts two key features that set it apart from the Arca Swiss F-Classic. Firstly, it employs a self-locking precision drive for horizontal displacement. This feature, coupled with the ground glass and lens standard's dovetail guide, ensures an enhanced level of stability that is noticeably superior.

Secondly, the camera incorporates a self-locking fine drive for vertical adjustments, seamlessly integrated into the format frame. This feature provides photographers with the precision they need when capturing intricate details in their shots.

The 'C' in the Arca Swiss F-Metric C 4x5" View Camera stands for 'compact', indicating its user-friendly design. Instead of an extendable optical bench, this model comes with a foldable optical bench, making it a more portable and convenient option for photographers on the go.

In summary, the Arca Swiss F-Metric C 4x5" View Camera is a durable, professional-grade camera that offers superior stability and precision, making it an ideal choice for photographers who demand the best from their equipment.

Arca Swiss F-Metric Features

  • Vertical adjustment integrated
  • F-metric is carried out with a Self-locking fine drive
  • F-metric is the ultimate tool for architecture and landscape photographers

Key Features

  • High-quality Arca Swiss F-Metric C 4x5" View Camera for professional photography
  • Self-locking precision drive for superior horizontal displacement
  • Enhanced stability achieved through a dovetail guide for ground glass and lens standard
  • Integrated self-locking fine drive for precise vertical adjustments
  • Compact design with a foldable optical bench for increased portability
  • Ideal for architecture and landscape photographers seeking precision and reliability

What's in the box:

  • Arca Swiss F-Metric C 4x5" View Camera
  • 30cm Extendable Optical Bench (043130)
  • Function Carrier F-Metric Front (052101)
  • Function Carrier F-Metric Rear (052102)
  • Format Frame F-Metric 4x5" Front (062010)
  • Format Frame F-Metric 4x5" Rear (062011)
  • Cassette and Ground Glass Frame with Fresnel (080007)
  • 38cm Synthetic Bellows Standard (4x5") (072040)
  • Arca Swiss 3 Year Limited Warranty
