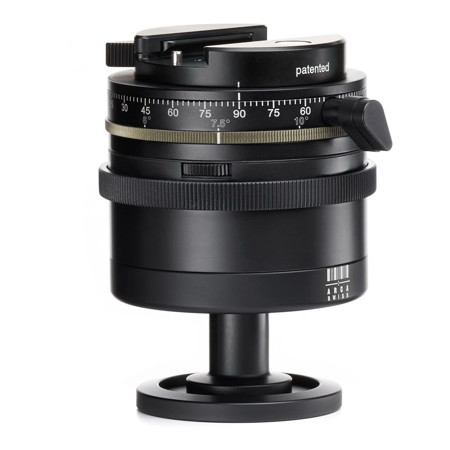

Arca Swiss Monoball p1+ Tripod Head with clicPan and monoballFix Quick Release

SKU: AW801156 MFR: 801156
Earn VIP Reward Points

Key Features

  • Arca Swiss Monoball p1+ head supports up to 66 lbs for secure, stable shooting.
  • Achieve smooth panning with clicPan; this tripod head is ideal for panoramas.
  • Arca-Swiss compatible quick release ensures fast, secure camera mounting.
  • Enjoy precise control with adjustable friction memory on this robust ball head.
  • Compact & lightweight design makes this tripod head perfect for travel photography.
  • Capture perfectly level shots using the integrated bubble level on the head.
See More Product Details
Special Order?Estimated to Ship: 08/18/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$79.99

3 Year

$99.99

4 Year

$129.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Arca Swiss Monoball p1+ Specifications

  • Type

    Ball head

  • Base Mount

    3/8"-16 threaded socket

  • Panning at Base

    No

  • Panning at Top

    Yes, clicPan with free or adjustable step by step angular rotation, lockable, with precision scale graduated in degrees

  • Tilt Range

    +/- 35 Degree + body recess to reach 90 Degree

  • Friction Control

    Yes, with adjustable friction memory

  • Level Control

    Yes-target bubble level located on the quick release

  • Compatible Plates

    Arca Swiss monoballFix

  • Base Diameter

    2.95" (75mm)

  • Weight Capacity

    66 lbs (30kg)

  • Dimensions (L x W x H)

    3.58 x 2.95 x 4.21" (91 x 75 x 107mm)

  • Weight

    1.33 lbs (605g)

3 Accessories for Arca Swiss Monoball p1+ Tripod Head with clicPan and monoballFix Quick Release

  • All Accessories (3)
  • Quick Release Plates (3)

About Arca Swiss Monoball p1+

What sets the Monoball p1+ Tripod Head apart is its robust design, tailored to support heavier photography equipment with unparalleled ease. As the advanced counterpart to the Monoball p0+, this model retains all the admired features while introducing a larger-diameter ball for enhanced smoothness and precision in operation.

Crafted for Strength and Elegance, the Monoball p1+ head is a lightweight powerhouse, tipping the scales at approximately 545 g (1.2 lbs), yet capable of securely supporting a substantial load of up to 40 kg (88 lbs). Its design echoes the sleekness of its sibling, the Monoball p0+, featuring a knurled ring for tightening that is intuitively larger for better grip and control.

The Inverted Ball Head design is a game-changer, allowing the head to rotate around the ball, significantly reducing exposure to dust and splashes while improving camera control. This innovative feature ensures that your equipment remains in pristine condition, even in challenging environments.

Instinctive and Maximum Control is at the forefront of the Monoball p1+'s design. Whether you're left or right-handed, the head's ambidextrous design allows for swift and secure locking of your camera position with a simple turn of the locking ring. This intuitive mechanism means you can operate the head by touch, keeping your focus on capturing the perfect shot.

The Monoball p1+ boasts a Powerful clamping force, thanks to its unique epicyclic gear train with three planetary gears, all operated by the knurled ring. This innovative system ensures even pressure distribution, providing a secure hold on your camera.

Security is paramount, and the Monoball p1+ features an aspherical ball that increases friction as the camera's angle of inclination rises, adding an extra layer of security to prevent any sudden movements or tipping.

With a 90 Degree Tilt and Top Panning capability, the Monoball p1+ allows for extreme camera angles and movements. The recess in the body of the ball head facilitates a full 90-degree tilt, while the upper lockable panning base enables you to capture overhead or downward views with precision.

The Friction + system is a testament to the Monoball p1+'s attention to detail, allowing you to set and memorize the desired level of friction for the ball's movement. This feature is adjustable based on the weight of your camera, ensuring smooth operation and added security.

The cp - clicPan feature introduces a variable interval top panning base that is both low-profile and lightweight. With 10 selectable positions and an off position for free panning, photographers can achieve consistent angular steps with tactile and audible confirmation at each increment. The graduated scale and locking lever provide precise control and security during panning.

Finally, the Monoball p1+ is equipped with the MonoballFix Quick-Release system, which is lighter, thinner, and quicker to use than ever before. It accommodates narrower plates and rails, has an impressive clamping force capable of holding up to 30 kg (66 lbs), and features a discreet lever with three positions for secure attachment and quick adjustments.

In summary, the Monoball p1+ Tripod Head with clicPan and MonoballFix Quick Release is a sophisticated tool for professional photographers who demand strength, precision, and ease of use in their equipment. Its innovative design and advanced features ensure that your camera is held securely and can be maneuvered with exceptional control, making it an essential addition to your photography gear.

Arca Swiss Monoball p1+ Features

  • Monoball p1+ now with 90 degree positioning and improved friction control
  • The Monoball p1+ is the ideal tripod head for larger cameras and longer focal length lenses. Its larger ball ensures higher capacity with fluid movements
  • Monoball p1+ has a new slotted opening, allowing the head to tilt 90 Degree. It is quick and easy to change the monoballp1+ from horizontal to vertical camera orientation, or into positions for unusual overhead or ground views
  • ARCA-SWISS has improved the friction control of the monoballp1
  • The new monoballp1+ offers the choice of more control over heavier loads, or less tension with lighter loads
  • These choices provide added stability and improved control for fine adjustments
  • A sensitivity threshold can be set by turning the knurled wheel and memorized by turning the friction wheel
  • Adjust the tension for movement according to the weight and leverage load of the camera
  • The Monoball p1+ has a top panning mechanism located directly under the quick release with a panning range of 360 Degree
  • With a physical weight of only 545g, Monoball p1+ will carry loads up to 30kg, over 50 times its own weight

Warranty Information

This product has a limited warranty of 36 months for parts and 36 months for labor.

Key Features

  • Arca Swiss Monoball p1+ head supports up to 66 lbs for secure, stable shooting.
  • Achieve smooth panning with clicPan; this tripod head is ideal for panoramas.
  • Arca-Swiss compatible quick release ensures fast, secure camera mounting.
  • Enjoy precise control with adjustable friction memory on this robust ball head.
  • Compact & lightweight design makes this tripod head perfect for travel photography.
  • Capture perfectly level shots using the integrated bubble level on the head.

What's in the box:

  • Arca Swiss Monoball p1+ Tripod Head with clicPan and monoballFix Quick Release
  • User Manual
  • (Camera Plate Not Included)
  • Arca Swiss 3 Year Limited Warranty
