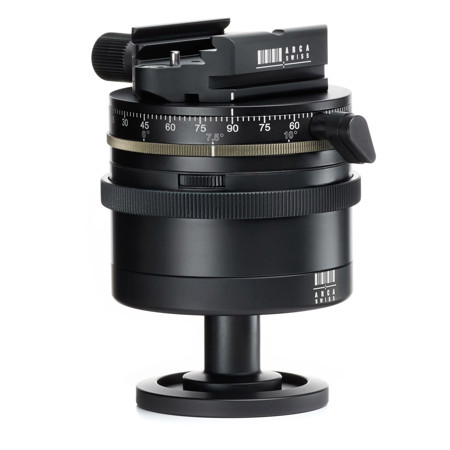

Arca Swiss Monoball p1+ Tripod Head with clicPan and Classic Quick Release

SKU: AW801157 MFR: 801157
Earn VIP Reward Points

Key Features

  • Achieve smooth, precise shots with this Arca Swiss ball head, ideal for landscape photography.
  • Enjoy secure camera mounting; this tripod head supports up to 66 lbs with ease and stability.
  • Capture panoramic perfection using the clicPan feature for indexed, repeatable panning movements.
  • Benefit from Arca-Swiss compatibility, ensuring quick swaps with your existing camera plates.
  • Adjust friction easily for optimal control, guaranteeing sharp images with this sturdy ball head.
  • Compact and robust, this Arca Swiss tripod head is perfect for travel and on-location shoots.
See More Product Details
Special Order?Estimated to Ship: 08/18/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$79.99

3 Year

$99.99

4 Year

$129.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Arca Swiss Monoball p1+ Specifications

  • Type

    Ball head

  • Base Mount

    3/8"-16 threaded socket

  • Panning at Base

    No

  • Panning at Top

    Yes, clicPan with free or adjustable step by step angular rotation, lockable, with precision scale graduated in degrees

  • Tilt Range

    +/- 35 Degree + body recess to reach 90 Degree

  • Friction Control

    Yes, with adjustable friction memory

  • Level Control

    Yes-target bubble level located on the quick release

  • Compatible Plates

    Arca Swiss Classic or monoballFix

  • Base Diameter

    2.95" (75mm)

  • Weight Capacity

    66 lbs (30kg)

  • Dimensions (L x W x H)

    3.58 x 2.95 x 4.57" (91 x 75 x 116mm)

  • Weight

    1.42 lbs (645g)

3 Accessories for Arca Swiss Monoball p1+ Tripod Head with clicPan and Classic Quick Release

  • All Accessories (3)
  • Quick Release Plates (3)

About Arca Swiss Monoball p1+

Discover the Monoball p1+ Tripod Head, a robust and refined piece of equipment designed for photographers seeking smooth operation and superior control. As the larger sibling of the Monoball p0+, this tripod head retains all the exceptional features of its predecessor while offering enhanced capabilities for handling heavier equipment.

The Monoball p1+ Tripod Head is a testament to strength and elegance, weighing approximately 545g (1.2 lbs) and boasting a load capacity of up to 40 kg (88 lbs). It features a larger-diameter ball for improved smoothness and a knurled ring for tightening, offering a slightly bigger size than the Monoball p0+.

Experience the benefits of the inverted ball head concept, where the head rotates around the ball. This design not only protects the ball from dust and splashes but also enhances camera control. Whether you're left or right-handed, the Monoball p1+ allows for instinctive and maximum control, enabling faster locking in position and better motion control.

The Monoball p1+ Tripod Head utilizes an epicyclic gear train with three planetary gears, operated by the knurled ring, to generate a unique level of clamping force. This powerful clamping force is applied equally to both sides of the ball, ensuring stability and precision.

Like all ARCA-SWISS ball heads, the Monoball p1+ features an aspherical ball that increases friction as the camera's angle of inclination increases, providing an extra layer of security to prevent sudden camera tipping. It also offers a 90-degree tilt and top panning, allowing for extreme movements and overhead or downward views.

The Monoball p1+ Tripod Head is equipped with the Friction + system, which allows you to set and memorize the desired level of friction for ball movement, offering an additional measure of security. The clicPan feature provides a variable interval top panning base, allowing for free to angular, step-by-step rotation.

The Classic Quick Release system is compatible with Classic ARCA-SWISS plates as well as the new, narrower & lighter monoballFix standard plates. It features a simple screw knob for tightening and a target bubble level for easy visualization of leveling.

In conclusion, the Monoball p1+ Tripod Head is a versatile and reliable tool for photographers seeking superior control, smooth operation, and enhanced security.

Arca Swiss Monoball p1+ Features

  • Monoball p1+ now with 90 degree positioning and improved friction control
  • The Monoball p1+ is the ideal tripod head for larger cameras and longer focal length lenses. Its larger ball ensures higher capacity with fluid movements
  • Monoball p1+ has a new slotted opening, allowing the head to tilt 90 Degree. It is quick and easy to change the monoballp1+ from horizontal to vertical camera orientation, or into positions for unusual overhead or ground views
  • ARCA-SWISS has improved the friction control of the monoballp1
  • The new monoballp1+ offers the choice of more control over heavier loads, or less tension with lighter loads
  • These choices provide added stability and improved control for fine adjustments
  • A sensitivity threshold can be set by turning the knurled wheel and memorized by turning the friction wheel
  • Adjust the tension for movement according to the weight and leverage load of the camera
  • The Monoball p1+ has a top panning mechanism located directly under the quick release with a panning range of 360 Degree
  • With a physical weight of only 545g, Monoball p1+ will carry loads up to 30kg, over 50 times its own weight

Warranty Information

This product has a limited warranty of 36 months for parts and 36 months for labor.

Key Features

  • Achieve smooth, precise shots with this Arca Swiss ball head, ideal for landscape photography.
  • Enjoy secure camera mounting; this tripod head supports up to 66 lbs with ease and stability.
  • Capture panoramic perfection using the clicPan feature for indexed, repeatable panning movements.
  • Benefit from Arca-Swiss compatibility, ensuring quick swaps with your existing camera plates.
  • Adjust friction easily for optimal control, guaranteeing sharp images with this sturdy ball head.
  • Compact and robust, this Arca Swiss tripod head is perfect for travel and on-location shoots.

What's in the box:

  • Arca Swiss Monoball p1+ Tripod Head with clicPan and Classic Quick Release
  • User Manual
  • (Camera Plate Not Included)
  • Arca Swiss 3 Year Limited Warranty
