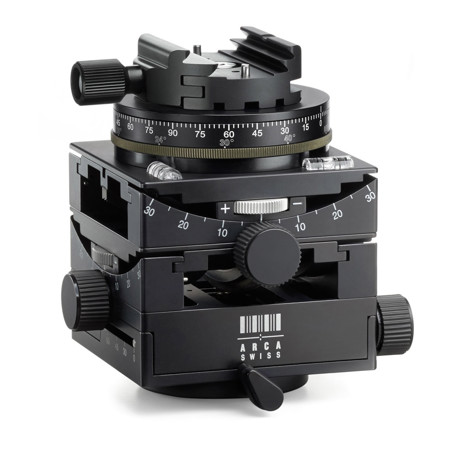

Arca Swiss C1 Cube Geared Tripod Head with clicPan, Classic Quick Release and Leather Case

SKU: AW8501503 MFR: 8501503
Earn VIP Reward Points

Key Features

  • Achieve smooth panning and precise control with this Arca Swiss geared tripod head.
  • Enjoy quick setup with the classic quick release system, perfect for fast-paced shoots.
  • This sturdy build Arca Swiss head supports up to 88 lbs, ideal for heavy camera setups.
  • Experience secure locking mechanisms for stable shots, ensuring your camera stays put.
  • Use the clicPan feature for adjustable, step-by-step rotation on your tripod head.
  • Its lightweight design at 2.56 lbs makes this tripod head easy to transport on location.
See More Product Details
Special Order?Estimated to Ship: 08/19/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$99.99

3 Year

$119.99

4 Year

$154.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Arca Swiss C1 Cube Specifications

  • Type

    Geared tripod head

  • Base Mount

    3/8"-16 threaded socket

  • Panning at Base

    Yes, 360 Degree lockable free movement

  • Panning at Top

    Yes, clicPan with free or adjustable step by step angular rotation, lockable, with precision scale graduated in degrees
    Alternative Panning Option: gp (geared panning) for free or geared movement

  • Tilt Range X and Y Axes

    +/- 30 Degree self-locking geared controls - (8 Degree per knob rotation)

  • Base Tilt

    0-60 Degree - manual

  • Base Manual Tilt + Top Geared Tilt

    > 90 Degree

  • Friction Control

    Yes, for X and Y axes

  • Level Control

    2 tubular bubble levels for X and Y axes

  • Compatible Plates

    ARCA-SWISS Classic or monoballFix

  • Base Diameter

    2.36" (60mm)

  • Weight Capacity

    88 lbs (40kg)

  • Dimensions (L x W x H)

    4.33 x 4.33 x 4.76" (110 x 110 x 121mm)

  • Weight

    2.56 lbs (1.16kg)

3 Accessories for Arca Swiss C1 Cube Geared Tripod Head with clicPan, Classic Quick Release and Leather Case

  • All Accessories (3)
  • Quick Release Plates (3)

About Arca Swiss C1 Cube

C1 Cube
The Cube is reputed to be one of the best tripod heads in the world and its unique design makes it immediately recognizable.

It is a best seller, and a favourite of the most renowned photographers: its patented design and robustness are acclaimed by the most demanding among them.

The Cube is a geared tripod head which provides fine and completely secure positioning of all camera types through a combination of high-precision movements.

Efficient, Gear-Driven Tilts
The perpendicular levelling cradles, each with a tilt range of +/- 30 Degree , have their axes of rotation close to the optical centre of the camera.

Their adjustment therefore has very little effect on framing and perspective, which means setting-up is now faster than ever. The controls are so easy and instinctive to use that both axes can be adjusted at the same time with a minimum of corrections.

Each axis can be moved by a pair of knobs which can be used together for heavy cameras, or separately when operating in tight spaces.

A separate friction control is provided for each axis, for ease of use when working with the lightest or heaviest of loads.

The Cube's geared controls are self-locking, so when a change is needed, simply turn a control knob to make a change then release it.

90 Degree Tilt Movement
With a combination of the base manual tilt and the top geared tilt, the Cube can be moved into extreme positions.

A feature of the C1 Cube is the ability to open up like a clamshell to allow for vertical shooting without an L-bracket, or to increase the degree to which you can pitch and roll the camera.

The Cube base is hinged and is secured with a locking knob. Once unlocked, the Cube may be opened manually and relocked at 60 Degree to the horizontal. To achieve the final vertical position, the geared tilt control can fine tune the camera position beyond 90 Degree . Overhead views may be achieved in this same position, using top pan to rotate the camera upwards.

Dual Panning Mechanisms
Manual base panning permits initial alignment of the camera with the subject.

A second, top panning movement sited above the levellers gives precise and stable rotation once all is levelled horizontally. A scale graduated in degrees enables control of the rotation angle. It is manually operated as standard fit: additionally, two options are available:

• The gp option provides a fine geared control of rotation (gp = geared pan)
• The cp option provides panning in pre-set selectable steps (cp = clicPan)

Both panning mechanisms can be locked with levers.

Large and Visible Level Controls
Two large, clear and easy-to-read bubble levels are located on the top plate.

Solid Design and Handmade, High-Quality Assembly
The Cube is machined from solid, aeronautical quality aluminium which gives lightness and robustness. It weights around 1kg (2.2 lbs) and can support a load of up to 40kg (88 lbs). ARCA-SWISS makes no compromise on quality: the Cube is manufactured and assembled by hand with the greatest care to ensure an outstanding experience and many years of pleasure when using it.

cp-clicPan (Top Panning in Angular Steps)
The clicPan is a low-profile and lightweight mechanism which provides a variable interval top panning base. It can be easily switched from free to angular, step-by-step rotation.

10 positions can be selected on a setting ring - 40 Degree (9 steps), 30 Degree (12 steps), 24 Degree (15 steps), 20 Degree (18 steps), 15 Degree (24 steps), 12 Degree (30 steps), 10 Degree (36 steps), 7.5 Degree (48 steps), 6 Degree (60 stops) with an off position for free panning movement.

Once a setting is chosen, the camera will pan in equal increments, and give a tactile and audible clic as it stops at each set step.

The graduated scale around the edge of the base shows the exact angle turned through and a locking lever prevents further movement of the panning base.

Classic Quick-Release
The Classic quick-release has two channels, which make it compatible with Classic ARCA-SWISS plates (the most widely used) as well as plates made to the new, narrower & lighter monoballFix standard.

When used with monoballFix plates, two pins on its base prevent any unintended slippage of the camera.

Tightening is done by a simple screw knob with which the photographer can ensure the camera is properly and securely fixed in position. It is equipped with a target bubble level to visualize levelling.

We recommend the use of original ARCA-SWISS plates, but the Classic quick- release is also compatible with different plates made to ARCA-SWISS Classic standards, although tolerances may vary between brands.

Leather Case
The genuine leather case is made by hand and is designed to protect the Cube in all conditions. A shoulder strap allows for ease of carriage and the case has a riveted brass closure to keep the Cube safe. The case also makes a fine and elegant accessory to go with a Cube.

Arca Swiss C1 Cube Features

  • The classic lever clamps the camera plate or L-bracket by rotation
  • All camera plates, L-brackets, monorails & optical benches from Arca Swiss fit into the classic quick release
  • Also other manufacturers that are Arca Swiss compatible fit into the classic quick release
  • When the manufacturer of the finest ball heads and view cameras of the finest, mechanical grade, designs a gearhead, the result is a 3-axis head like the Cube!
  • Not only because of its construction, but also because of its iconic design, it has been the benchmark ever since
  • In order to be able to work efficiently with the horizontal and vertical lines that are important in both architectural and still life photography, it is essential to be able to pan the camera in the mm range
  • Which brings us to the next topic: The Cube's individual parts spend an entire day on milling machines operated by technicians who used to make the very finest mechanical watches in the Jura (Switzerland)
  • The C1 Cube is perfect for landscape, still life and architectural photography, as it allows the photographer to adjust even heavy cameras with absolute accuracy
  • The Cube has two panoramic axes: the lower one at the base and the upper one for horizontal panning, e.g. for accurate panoramic shots
  • The fine gear mechanism allows fine adjustment of the X and Y axes. The two adjustment wheels are easy and smooth to operate due to the self-locking gear mechanism

Warranty Information

This product has a limited warranty of 36 months for parts and 36 months for labor.

Key Features

  • Achieve smooth panning and precise control with this Arca Swiss geared tripod head.
  • Enjoy quick setup with the classic quick release system, perfect for fast-paced shoots.
  • This sturdy build Arca Swiss head supports up to 88 lbs, ideal for heavy camera setups.
  • Experience secure locking mechanisms for stable shots, ensuring your camera stays put.
  • Use the clicPan feature for adjustable, step-by-step rotation on your tripod head.
  • Its lightweight design at 2.56 lbs makes this tripod head easy to transport on location.

What's in the box:

  • Arca Swiss C1 Cube Geared Tripod Head with clicPan and Classic Quick Release
  • Leather Case
  • User Manual
  • (Camera Plate Not Included)
  • Arca Swiss 3 Year Limited Warranty
