AirWise Solutions H520E US Cyber Secure Drone

SKU: AWH520EUSC

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

AirWise Solutions H520E Specifications

Drone
  • Flight Time

    25 - 30 minutes

  • Max Speed

    20 m/s

  • Max Ascent Speed

    5 m/s

  • Max Angular Velocity

    120 degrees/s

  • Motors

    720 KV

  • Charger

    SC4000 - 4H

  • Operating Temperature

    32 Degree F - 104 Degree F (0 Degree C - 40 Degree C)

  • Storage Temperature

    14 Degree F - 122 Degree F (-10 Degree C - 50 Degree C)

  • Flight Controller and adding functions

    M7 Process at 2x the speed for easy 'add on' functions

  • Video and Telemetry Link

    2.4 GHz OFDM for an extended range of 3 km and increased reliability

  • Battery Connector

    12 pin for greater stability

  • Camera Interface

    30 pin X connector with USB and CAN interfaces for more compatibility

  • Autonomous Flights

    Survey, structure, and orbit scans

  • Battery

    LiPo

  • Battery Capacity / Voltage

    6200mAh 4S/15.2V (79.8Wh)

  • Transmitter

    ST16E Personal Ground Station

  • Maximum Flying Height

    1640' (500m) (Relative altitude)

  • Maximum Rotation Rate

    120 deg/s

  • Maximum Roll Angle

    35 Degree

  • Maximum Climbing Speed

    4m/s

  • Maximum Horizontal Speed (Manual Mode)

    17m/s (38mph)

  • Maximum Horizontal Speed (Angle Mode)

    13.5 m/s (30mph)

  • Maximum Descending Speed

    2.5m/s

  • Operating System

    Android

  • Number of Channels

    16

  • Control Transmission Distance/Range

    FCC Compliance: Up to 1.6km/1 mile CE Compliance: Up to 1.6km/1 mile (Optimum Conditions)

  • Video Link Frequency Band

    HD 720p

  • Video Transmission Distance/Range

    FCC Compliance: Up to 1.6km/1 mile CE Compliance: Up to 1.6km/1 mile (Optimum Conditions)

  • Flight Systems Telemetry Data (OSD)

    Yes (On Screen Display)

  • LCD Screen Size

    7" (17.78cm)

  • Built-In Li-ion Battery Voltage/Capacity

    3.6V 8700mAh 31.32Wh Li-ion

  • Battery Info

    Required, included

  • Battery Material

    Lithium ion

  • Battery Type

    Non-universal

  • Battery Quantity

    2

  • Diagonal Length

    20" (520mm) (Without rotor blades)

  • Dimensions

    21.6 x 19 x 12.1" (551 x 482 x 309mm)

  • Weight

    3.62 lbs (1.64kg) (With Battery)
    Take Off: 4.1 lbs (1.85kg) (Without payload)

Obstacle Avoidance System

Jump to...
  • Sensor

    Ultrasonic

  • Flight Speed

    4 m/s

  • Operating Environment

    Height > 5' (1.5m). Distance to Obstacles < 16' (5m)

ST16E Controller

Jump to...
  • Operating System

    Android

  • Number of Channels

    16

  • Transmission Distance Range

    4km (Europe) / 6km (FCC) (Optimum Conditions)

  • Frequency Band

    2.4 GHz

  • Video Link Resolution

    HD 720p

  • UPC Code

    810088770029

About AirWise Solutions H520E

With a lightweight, easy-to-setup build and unmatched stability in the air, the AirWise drone platform is your ultimate aerial workhorse. It's also US Certified by AirWise with hardware, software and firmware independently verified for unmatched safety and data security.

A versatile workhorse for a variety of applications including surveying, mapping, search & rescue, and construction. The H520E is a quick-deploy, easily transportable drone with hot-swappable payloads. The controller is included with a 7" touchscreen and HDMI output. The transmission between the controller and the drone stays in a closed loop with one another - no information is relayed anywhere else unless independently directed so by the pilot.

This tried and true hexacopter platform by Yuneec has undergone rigorous code compiling and then inspection by an independent third party ensuring that the source code is clean and safe.

AirWise Solutions H520E Features

  • US Certified for superior safety and security
  • Stable flight in up to 45 mph winds
  • Reliable hexacopter design, so it still completes mission if a single motor fails
  • Lightweight and portable
  • Hot-swappable cameras and versatile payloads
  • 5-Motor Fail Safe
  • Powerful flight control processor
  • Improved battery connector with fail safe design
  • Long range OFDM module
  • Designed for professional, commercial and governmental requirements
  • High-precision, low-interference compass
  • 30-pin payload interface
  • No data transfer to external servers
  • Stable and safe 6 rotor system
  • Energy efficient and quiet operation
  • ST16E with integrated 7" touch display, voice output and comprehensive DataPilot software
  • HDMI signal directly from the ST16E to output the drone's live image onto larger monitors

Key Features

  • US Certified for superior safety and security
  • Stable flight in up to 45 mph winds
  • Reliable hexacopter design, so it still completes mission if a single motor fails
  • Lightweight and portable
  • Hot-swappable cameras and versatile payloads
  • 5-Motor Fail Safe

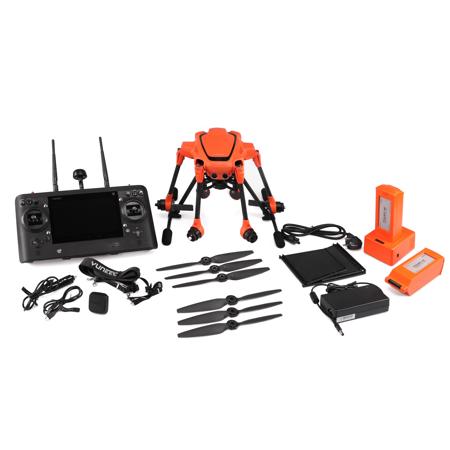

What's in the box:

  • AirWise H520E US Cyber Secure Drone
  • Flight Planning Software (Download)
  • 10x Propellers (5A+5B)
  • 2x Batteries
  • ST16E Controller
  • SC4000-4U Balancing Smart Charger
  • Power Supply
  • Charging Cords
  • Controller Neck Strap
  • (Payload Not Included)
  • AirWise 1 Year Limited Warranty
