Axis Communications F1004 Pinhole Sensor Unit
See all Axis Communications items

Axis Communications F1004 Pinhole Sensor Unit

SKU: AX01003001

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Axis Communications Pinhole Sensor Unit Specifications

  • Camera: Image sensor

    1/4" (effective) progressive scan RGB CMOS

  • Camera: Lens

    Fixed iris, fixed focus, pinhole
    3.7 mm, F2.5

  • Camera: Angle of View

    Horizontal: 57 Degree
    Vertical: 31 Degree

  • Camera: Resolutions

    Max 1280x720

  • Camera: Wide dynamic range

    WDR

  • Camera: Minimum illumination

    Color: 0.5 lux

  • Camera: Shutter time

    1/24500 s to 1/6 s

  • Camera: Frame rate

    Max 25/30 fps (50/60 Hz)

  • Casing

    Metal casing (aluminum)

  • Operating conditions

    -20 Degree C to 50 Degree C (-4 Degree F to 122 Degree F)
    Humidity 10-85% RH (non-condensing)

  • Storage conditions

    -40 Degree C to 65 Degree C (-40 Degree F to 149 Degree F)

  • Approvals

    IEC/EN/UL 60950-1, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, EN 55024, EN 61000-6-1, EN 61000-6-2, EN 61000-3-2, EN 61000-3-3, EN 50581, EN 55022 Class B, FCC Part 15 Subpart B Class B, ICES-003 Class B, VCCI Class B, RCM AS/NZS CISPR 22 Class B

  • Required hardware

    AXIS F Main Unit

  • Dimensions

    27 x 20 x 18 mm (1 1/16 x 13/16 x 11/16")

  • Weight

    Sensor Unit Cable: 128 g (4.5 oz)
    AXIS F1004 Pinhole Sensor Unit: 14 g (0.5 oz)

  • UPC Code

    7331021054462

About Axis Communications Pinhole Sensor Unit

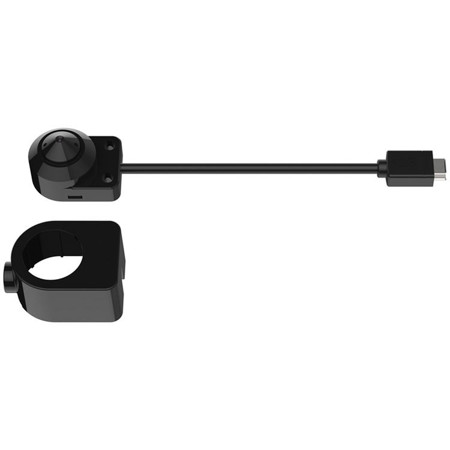

AXIS F1004 Pinhole Sensor Unit

Pinhole lens for extremely discreet surveillance

Extremely discreet surveillance

AXIS F1004 Pinhole Sensor Unit has a pinhole lens for extremely discreet indoor video surveillance. Only a very small hole would be visible externally. It is ideal for use in retail stores, ATMs, and ticket/vending and health monitoring machines. The sensor unit can be mounted in tight places, and behind a metal, plastic or glass panel that is up to 5.2 mm (3/16") thick when used with the included mounting bracket.

AXIS F1004 PInhole offers a 57 Degree horizontal field of view, a 720p video resolution, and good low-light performance in color. It comes with a detachable 8 m (26 ft) cable for connection to an AXIS F Main Unit.

Axis Communications Pinhole Sensor Unit Features

  • Pinhole lens for extremely discreet surveillance
  • 57 Degree horizontal field of view
  • HDTV 720p resolution
  • Detachable cable for easy and flexible installation

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Pinhole lens for extremely discreet surveillance
  • 57 Degree horizontal field of view
  • HDTV 720p resolution
  • Detachable cable for easy and flexible installation

What's in the box:

  • F1004 Pinhole Sensor Unit
  • F8206 Mounting Bracket (5-Pack)
  • 26' Black Sensor Cable
  • Axis Communications 3 Year Limited Warranty
