1/2.7" progressive scan RGB CMOS
2.9mm, F2.0
Horizontal field of view: 102 Degree
Vertical field of view: 73 Degree
Minimum focus distance: 3.3' (1m)
Fixed iris, IR corrected
Automatic IR-cut filter
Hybrid IR filter
With WDR and Lightfinder:
Color: 0.16 lux at 50 IRE, F2.0
B/W: 0 lux at 50 IRE, F2.0
0 lux with IR illumination on
1/50000s to 1/5s
Pan +/-190 Degree, tilt -10 to +80 Degree, rotation +/-190 Degree
ARTPEC-8
1024 MB RAM, 8192 MB Flash
Deep learning processing unit (DLPU)
H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles
H.265 (MPEG-H Part 2/HEVC) Main Profile
Motion JPEG
16:9: 2688x1512 to 160x90
4:3: 2304x1728 to 160x120
Up to 30/25 fps (60/50 Hz) in all resolutions
Multiple, individually configurable streams in H.264, H.265, and Motion JPEG
Axis Zipstream technology in H.264 and H.265
Controllable frame rate and bandwidth
VBR/ABR/MBR H.264/H.265
Low latency mode
Up to 8 individually cropped out view areas
Saturation, contrast, brightness, sharpness, Forensic WDR: Up to 120 dB depending on scene, white balance, day/night threshold, local contrast, tone mapping, exposure mode, exposure zones, defogging, barrel distortion correction, compression, rotation: 0 Degree, 90 Degree, 180 Degree, 270 Degree including Corridor Format, mirroring, dynamic text and image overlay, polygon privacy mask
Digital PTZ
Two-way audio via edge-to-edge technology
AAC 8/16/32/44.1/48 kHz, G.711 8 kHz, G.726 8 kHz, Opus
8/16/48 kHz, LPCM 48 kHz
Configurable bit rate
External microphone input or line input, ring power, digital audio input, automatic gain control Network speaker pairing
IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS, HTTP/2, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTCP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, ARP, SOCKS, SSH, SIP, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf)
Open API for software integration, including VAPIX and AXIS Camera Application Platform; One-click cloud connection
ONVIF Profile G, ONVIF Profile M, ONVIF Profile S, and ONVIF Profile T
Support for Session Initiation Protocol (SIP) for integration with Voice over IP (VoIP) systems, peer to peer or integrated with SIP/PBX.
Day/night shift
Defogging
Wide dynamic range
Video streaming indicator
IR illumination
Enable-disable all privacy masks
Play media clip
Analytics, external input, supervised external input, virtual inputs through API
Digital audio: digital signal contains Axis metadata, digital signal has invalid sample rate, digital signal missing, digital signal okay
I/O: digital input, manual trigger, virtual input
Device status: above operating temperature, above or below operating temperature, below operating temperature, within operating temperature
IP address removed, new IP address, network lost, system ready, ring power overcurrent protection, live stream active, casing open
Call: state, state change
Video: average bitrate degradation, day-night mode, live stream open, tampering
Audio: audio detection, audio clip playing, audio clip currently playing
Edge storage: recording ongoing, storage disruption, storage health issues detected
Scheduled and recurring: schedule
MQTT: stateless
Overlay text, day/night mode, flash status LED, use lights, set defog mode, set WDR mode
I/O: toggle I/O once, toggle I/O while the rule is active
MQTT: publish
Notification: HTTP, HTTPS, TCP and email
Audio clips: play, stop
Record video: SD card and network share
Upload of images or video clips: FTP, SFTP, HTTP, HTTPS, network
share and email
Pre- and post-alarm video or image buffering for recording or upload
Calls: answer call, end SIP call, make SIP call
SNMP traps: send, send while the rule is active
Event data
Pixel counter, straighten image, level grid
Included
AXIS Object Analytics, Scene metadata, AXIS Video Motion
Detection, active tampering alarm, audio detection
AXIS Live Privacy Shield
Supported
Support for AXIS Camera Application Platform enabling installation of third-party applications
Object classes: humans, vehicles (types: cars, buses, trucks, bikes)
Scenarios: line crossing, object in area, crossline counting, occupancy in area, time in area
Up to 10 scenarios
Other features: triggered objects visualized with trajectories, color-coded bounding boxes and tables
Polygon include/exclude areas
Perspective configuration
ONVIF Motion Alarm event
Object classes: humans, faces, vehicles (types: cars, buses, trucks, bikes), license plates
Object attributes: vehicle color, upper/lower clothing color, confidence, position
EN 55032 Class A, EN 61000-6-1, EN 61000-6-2
Australia/New Zealand: RCM AS/NZS CISPR 32 Class A
Canada: ICES-3(A)/NMB-3(A)
Japan: VCCI Class A
Korea: KC KN35KC, KN32 Class A
USA: FCC Part 15 Subpart B Class A
IEC/EN/UL 62368-1, IEC/EN/UL 60950-22, IEC 62471 risk group exempt, IS 13252
IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, IEC/EN 60529 IP66, IEC/EN 62262 IK10, NEMA 250 Type 4X, NEMA TS 2 (2.2.7-2.2.9)
NIST SP500-267
ETSI EN 303 645
Software: Signed firmware, brute force delay protection, digest authentication and OAuth 2.0 RFC6749 OpenID Authorization
Code Flow for centralized ADFS account management, password protection
Hardware: Axis Edge Vault cybersecurity platform Secure element (CC EAL 6+), system-on-chip security (TEE), Axis device ID, secure keystore, signed video, secure boot, encrypted filesystem (AES-XTS-Plain64 256bit)
IEEE 802.1X (EAP-TLS, PEAP-MSCHAPv2), IEEE 802.1AE (MACsec PSK/EAP-TLS), IEEE 802.1AR, HTTPS/HSTS, TLS v1.2/v1.3, Network Time Security (NTS), X.509
Certificate PKI, host-based firewall
IP66-, NEMA 4X- and IK10-rated
Polycarbonate hard-coated dome
Plastic casing, sunshield (PC/ASA)
Color: white NCS S 1002-B
Mounting bracket with junction box holes (double-gang, single-gang, and 4" octagon) and for wall or ceiling mount 1/2" (M20) or 3/4" (M25) conduit side entry, with conduit adapter
Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 3
Typical 4.8 W, max 10.8 W
Network: Shielded RJ45 10BASE-T/100BASE-TX PoE
I/O: 4-pin 0.098" (2.5mm) terminal block for 1 supervised
digital input and 1 digital output (12 V DC output, max. load 25 mA)
Audio: 3.5 mm mic/line in
OptimizedIR with power-efficient, long-life 850 nm IR LEDs Range of reach 98' (30m) or more depending on the scene
Support for microSD/microSDHC/microSDXC card and encryption
Recording to network-attached storage (NAS)
-40 Degree F to 122 Degree F (-40 Degree C to 50 Degree C)
Maximum temperature according to NEMA TS 2 (2.2.7): 165 Degree F (74 Degree C)
Start-up temperature: -22 Degree F to 122 Degree F (-30 Degree C to 50 Degree C)
Humidity: 10-100% RH (condensing)
-40 Degree F to 149 Degree F (-40 Degree C to 65 Degree C)
Humidity: 5-95% RH (non-condensing)
Installation guide, Windows decoder 1-user license, drill hole template, RESISTORX TR20 bit, terminal block connector, cable gaskets, connector guard, weathershield
AXIS Companion, AXIS Camera Station, video management software from Axis Application Development Partners
English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Polish, Traditional Chinese, Dutch, Czech, Swedish, Finnish, Turkish, Thai, Vietnamese
PVC free, BFR/CFR free in accordance with JEDEC/ECA Standard
JS709
RoHS in accordance with EU RoHS Directive 2011/65/EU/ and EN 63000:2018
REACH in accordance with (EC) No 1907/2006.
Renewable carbon-based plastic content: 12% (bio-based)
Screened for conflict minerals in accordance with OECD guidelines
Without weathershield: 4.0 x 5.9" (102 x 149mm)
With weathershield: 1.74 lbs (791g)
7331021076556
Models | SKU: AX02372001 MFR: 02372-001 $689.00 Special Order Generally ships in 7-14 days, subject to availability | SKU: AXC01968004 MFR: AXC-01968004 $2,299.00 Temporarily On Backorder Although this item is temporarily on Backorder, you can order it now and it will ship as soon as it arrives. Your card will only be charged once item is shipped. | SKU: LRXLNZ45P25 MFR: LNZ45P25 $459.99 $549.99 Save:$90.00 (16%) Temporarily On Backorder Although this item is temporarily on Backorder, you can order it now and it will ship as soon as it arrives. Your card will only be charged once item is shipped. |
---|---|---|---|
Special Features | Day & Night Security, Network/IP, Outdoor & Night Vision, Storage Card Port | Day & Night Security, Network/IP | Day & Night Security, Network/IP, Outdoor & Night Vision |
Resolution | FHD (1920x1080) | HD (1280x720) | 4 MP (2560x1440) |
Kit Style | Base | - | Base |
Storage Capacity | NA | NA | - |
Sensor Type | CMOS | CMOS | CMOS |
Chassis Type | Dome Style | Dome Style | Dome Style |
Under the umbrella of advanced security solutions, the M3216-LVE 4MP Full HD Outdoor Network Dome Security Camera with 2.9mm Fixed Lens stands out as a cost-effective and high-performance choice. This fixed focal dome camera is engineered to deliver superior image quality under any lighting conditions, making it an ideal choice for round-the-clock surveillance.
Built on the robust ARTPEC-8 platform, this camera supports advanced analytics based on deep learning on the edge. This feature allows for enhanced processing and storage capabilities, enabling the collection and analysis of more data than ever before.
The M3216-LVE camera guarantees high-quality 4MP resolution images, regardless of lighting conditions. It is equipped with Axis Lightfinder technology for sharp, color images in low light, and Axis Forensic WDR for clarity in scenes with both dark and light areas. Additionally, Axis OptimizedIR technology enables effective surveillance in total darkness up to 30 m (98 ft) or more, depending on the scene.
This camera also features Axis Zipstream technology with support for H.264 and H.265, significantly reducing bandwidth and storage requirements without compromising image quality.
The M3216-LVE camera is not just about capturing images; it's about understanding them too. With AXIS Object Analytics, it can detect and classify humans, vehicles, and types of vehicles, all tailored to your specific needs. Additionally, with support for ACAP version 4, you can enhance your system with custom applications based on deep learning on the edge.

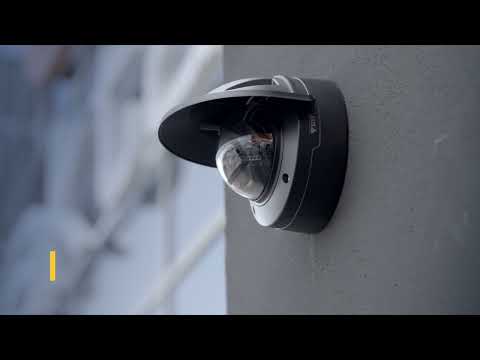

Designed with a weather shield, this IK10-rated camera offers protection from rain, snow, and sun. It's easy to install with Power over Ethernet (PoE) and comes with a bracket for mounting on walls, ceilings, or junction boxes.
The camera also supports audio, allowing you to listen in on the scene and benefit from audio analytics, such as detecting aggressive behavior.
In terms of cybersecurity, the M3216-LVE camera is packed with built-in features to prevent unauthorized access and safeguard your system. For instance, Axis Edge Vault protects your Axis device ID and simplifies the authorization of Axis devices on your network.
In conclusion, the M3216-LVE 4MP Full HD Outdoor Network Dome Security Camera with 2.9mm Fixed Lens is a high-performance, secure, and versatile solution for your surveillance needs.
