Review Summary
1/2.8" (effective) progressive scan RGB CMOS
Fixed iris 3-6 mm, F2.0
With AXIS F34/F41/F44 in 1080p:
Horizontal angle of view: 108deg, to 53 deg.
Vertical angle of view: 57.5 deg. to 30 deg.
With AXIS F34/F44 in 720p:
Horizontal angle of view: 65 deg. to 35 deg.
Vertical angle of view: 36 deg. to 20 deg.
Max. 1920 x 1200/1080
WDR Forensic Capture
With AXIS F41: 1080p, 25/30 fps (50/60Hz)
With AXIS F44: 720p, 12.5/15 fps (50/60Hz)
Color: 0.3 lux
With AXIS F34/F44:
HDTV 720p 25/30 fps: 1/28000 s to 2 s
1080p 12.5/15 fps: 1/22500 s to 2 s
With AXIS F41:
HDTV 1080p 25/30/50/60 fps: 1/143000 s to 2 s
WUXGA (1920x1200) 25/30 fps: 1/143000 s to 2 s
Max. 50/60 fps (50/60 Hz)
Aluminum
-30 to 55 deg. C / -22 to 131 deg. F
-40 to 65 deg. C / -40 to 149 deg. F
10-85% RH (condensing)
ECE R10 rev.04, EN 50121-4, IEC/EN/UL 60950-1, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-30, IEC 60068-2-78, IEC 60529 IP4X, IEC 62236-4, EN 55022 Class B, EN 55024, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class B, ICES-003 Class B, VCCI Class B, C-tick AS/NZS CISPR 22 Class B, KCC KN22 Class B, KN24, EN 50581, IEC 60068-2-6, IEC 60068-2-27
3m / 9.84'
69 x 30mm / 2.72 x 1.18"
120g / 4.23oz with cable
7331021045521

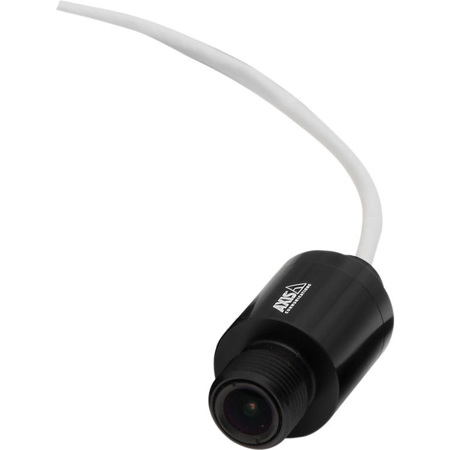

AXIS F1015 Sensor Unit, together with an AXIS F Main Unit, is ideal for use in highly discreet indoor surveillance applications. The sensor unit can be installed in tight places and flush-mounted in a wall or ceiling, while the main unit can be placed further away where there is space. AXIS F1015 comprises an image sensor with 1080p resolution (1920 x 1080 pixels) and a varifocal lens that provides between a 53deg and 108deg horizontal field of view. A varifocal lens gives users the flexibility to adjust the field of view to suit the application. In tele mode, finer details can be captured in a narrower field of view. In wide mode, more of a scene can be covered.
AXIS F1015 also supports Wide Dynamic Range (WDR) - Forensic Capture, which can be activated when the sensor unit is connected to a main unit that supports this feature. WDR - Forensic Capture enables a high level of detail to be visible in both the bright and dark areas of a scene. AXIS F1015 comes with a 3m or 12m (10' or 39') pre-mounted cable for connection to an AXIS F Main Unit. An AXIS F8201 Vari-angle Mounting Bracket is included and enables the sensor unit to be secured and tilted in any position.
