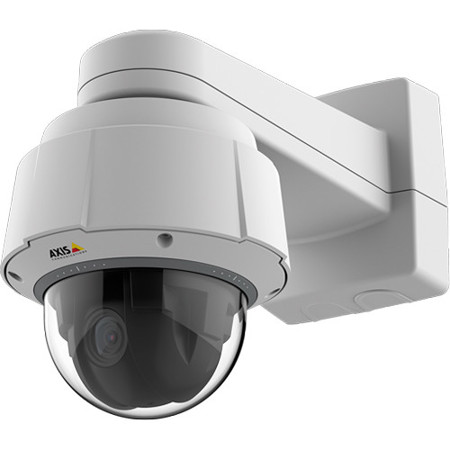

Axis Communications Q6052-E Outdoor Day&Night D1 60Hz PTZ Network Dome Camera, 36x Optical Zoom, Up to 50/60 fps, H.264, MJPEG, PoE

SKU: AX0902004

This item is no longer available.

Overview
Compare
Accessories
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Axis Communications Q6052-E Specifications

  • Image sensor

    1/2.8" progressive scan CMOS

  • Lens

    3.3-119 mm, F1.4-4.2
    Horizontal field of view: 47.0 deg.-1.5 deg.
    Vertical field of view: 35.5 deg.-1.1 deg.
    Autofocus, auto-iris

  • Day and night

    Automatically removable infrared-cut filter

  • Minimum illumination

    Color: 0.15 lux at 30 IRE F1.4
    Color: 0.25 lux at 50 IRE F1.4
    B/W: 0.008 lux

  • Shutter time

    1/30000 s to 1.0 s with 60Hz

  • Pan/Tilt/Zoom

    Pan: 360 deg. endless, 0.05 deg. - 450 deg./s
    Tilt: 220 deg., 0.05 deg.-450 deg./s
    36x optical zoom and 12x digital zoom, total 432x zoom
    E-flip, 256 preset positions, Tour recording, Guard tour, Control queue, On-screen directional indicator, Set new pan 0 deg., Adjustable zoom speed

  • Video compression

    H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles
    Motion JPEG

  • Video Resolution

    D1 720x480 to 176x120 (60 Hz)

  • Video Frame rate

    Up to 50/60 fps (50/60 Hz) in all resolutions
    Capture mode PAL: Up to 50 fps in all resolutions
    Capture mode NTSC: Up to 60 fps in all resolutions

  • Video streaming

    Multiple, individually configurable streams in H.264 and Motion JPEG
    Axis Zipstream technology
    Controllable frame rate and bandwidth
    VBR/MBR H.264

  • Video Image settings

    Manual shutter time, compression, color, brightness, sharpness, white balance, exposure control, exposure zones, fine tuning of behavior at low light, rotation: 0 deg., 180 deg., text and image overlay, 32 individual 3D privacy masks, image freeze on PTZ, automatic defog, backlight compensation
    Electronic Image Stabilization (EIS)
    Wide Dynamic Range (WDR): 110 dB, shadows and highlights recovery

  • Security

    Password protection, IP address filtering, HTTPS encryption, IEEE 802.1X network access control, Digest authentication, User access log, Centralized Certificate Management

  • Supported protocols

    IPv4/v6, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SFTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, NTCIP, LLDP

  • Application Programming Interface

    Open API for software integration, including VAPIX and AXIS Camera Application Platform
    AXIS Video Hosting System (AVHS) with One-Click Connection, ONVIF Profile S and ONVIF Profile G

  • Analytics

    AXIS Video Motion Detection, Autotracking, Active Gatekeeper Audio detection
    Support for AXIS Camera Application Platform enabling installation of third-party applications

  • Event triggers

    Detectors: Live stream accessed, video motion detection, shock detection, audio detection
    Hardware: fan, network, temperature
    PTZ: autotracking, error, moving, ready, preset reached
    Storage: disruption, recording
    System: system ready
    Time: recurrence, use schedule
    Input signal: manual trigger, virtual input, digital input

  • Event actions

    Day/night mode, overlay text, video recording to edge storage, pre- and post-alarm video buffering, send SNMP trap
    PTZ: PTZ preset, start/stop guard tour
    File upload via FTP, SFTP, HTTP, HTTPS network share and email
    Notification via email, HTTP, HTTPS and TCP

  • Data streaming

    Event data

  • Built-in installation aids

    Pixel counter

  • Casing

    IP66-, NEMA 4X- and IK10-rated
    Metal casing (aluminum), polycarbonate (PC) clear dome, sunshield (PC/ASA)

  • Sustainability

    PVC free

  • Memory

    512MB RAM, 256MB Flash

  • Power

    Axis High PoE midspan 1-port: 100-240V AC, max 74W
    Camera consumption: typical 16W, max 60W

  • Connectors

    RJ45 10BASE-T/100BASE-TX PoE, RJ45 Push-pull Connector (IP66) included

  • Storage

    Support for SD/SDHC/SDXC card
    Support for SD card encryption
    Support for recording to network-attached storage (NAS)

  • Operating Temperature

    With 30W midspan: -20 to 50 deg. C (-4 to 122 deg. F)
    With 60W midspan: -50 to 50 deg. C (-58 to 122 deg. F)
    Maximum temperature (intermittent): 60 deg. C(140 deg. F)
    Arctic Temperature Control: Start-up as low as -40 deg. C (104 deg. F)

  • Operating Humidity

    10-100% RH (condensing)

  • Storage conditions

    -40 to 65 deg. C (-40 to 149 deg. F)

  • Approvals

    EMC
    EN 55022 Class A, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, EN 55024, FCC Part 15 Subpart B Class A, ICES-003 Class A, VCCI Class A, RCM AS/NZS CISPR 22 Class A, KCC KN32 Class A, KN35
    Safety: IEC/EN/UL 60950-1
    IEC/EN/UL 60950-22

  • Approvals (Cont.)

    Environment: EN 50121-4, IEC 62236-4, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, NEMA 250 Type 4X
    IEC/EN 60529 IP66
    IEC 60721-4-3, IEC 60068-2-30, IEC 60068-2-60, IEC 60068-2-78, NEMA TS-2-2003 v02.06, Subsection 2.2.7, 2.2.8, 2.2.9; IEC 62262 IK10, ISO 4892-2
    Midspan: EN 60950-1, GS, UL, cUL, CE, FCC, VCCI, CB, KCC, UL-AR

  • Video management software

    AXIS Companion, AXIS Camera Station, Video management software from Axis' Application Development Partners

  • Languages

    English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Traditional Chinese

  • Dimensions

    (Dia.) 232 x 280mm (9.13 x 11.02")

  • Weight

    3.7kg (8.16 lbs)

  • UPC Code

    7331021051812

0 Accessories for Axis Communications Q6052-E Outdoor Day&Night D1 60Hz PTZ Network Dome Camera, 36x Optical Zoom, Up to 50/60 fps, H.264, MJPEG, PoE

About Axis Communications Q6052-E

AXIS Q6052-E is a top-of-the-line, outdoor-ready PTZ dome with D1 resolution, 36x optical zoom and fast and precise pan/tilt performance. The focus recall feature offers instant focus in predefined areas, while Axis Lightfinder technology and the day/night functionality ensure high image quality even in low-light conditions. Axis Zipstream technology reduces bandwidth and storage requirements, while Arctic Temperature Control ensures safe startup in extreme cold. AXIS Q6052-E also offers shock detection, video motion detection, electronic image stabilization, automatic defog and Active Gatekeeper.

• Axis Lightfinder technology
• D1 resolution and 36x optical zoom
• Focus recall
• Axis' Zipstream technology
• IP66-rated protection against dust and dripping water
• Vandal-resistant

For demanding conditions
Sweeping overviews and zoomed-in detail. Instant focus and full-color footage-even in low light. AXIS Q6052-E is an advanced outdoor-ready PTZ dome that gives you all that. Designed for demanding conditions, it's ideal for surveillance at airports, train stations, intersections, arenas and parking lots - anywhere you need fast and precise, round-the-clock pan/tilt/zoom operation.

In focus in an instant
Focus recall helps you get more out of your AXIS Q6052-E in challenging light conditions. There's no need to focus manually or wait the second or two it takes for autofocus to adjust. Focus recall gives you instantaneous focus even in low-contrast scenes or scenes with point-shaped light sources such as headlights in oncoming traffic. And 36x zoom makes it possible to zoom in from great distance.

Living color - 24-hours a day
AXIS Q6052-E is equipped with Axis' Lightfinder technology. In dark environments, Lightfinder "finds" light - to deliver excellent image quality with low noise and a wealth of detail. And where other PTZ cameras switch to black and white, Lightfinder provides color images that help you better understand situations and identify individuals. AXIS Q6052-E also features WDR, which ensures excellent detail when there are both bright and darker areas in a scene.

Sharp images. Low bandwidth
AXIS Q6052-E also features Axis' Zipstream technology, which significantly lowers bandwidth and storage requirements while preserving high-quality images.

A camera that can take it
With a robust aluminum casing, AXIS Q6052-E can withstand temperatures as low as -50deg.C and as high as 60deg.C (-58deg.F to 140deg.F). Arctic temperature control ensures safe start-up at temperatures down to -40deg.C, even after a power failure. And with IP66, NEMA 4X and IK10 ratings, you can rest assured that the camera housing is resistant to both harsh weather conditions and impact.

Axis Communications Q6052-E Features

  • Axis' Lightfinder technology
  • D1 resolution and 36x optical zoom
  • Focus recall
  • Axis' Zipstream technology
  • IP66-rated protection against dust and dripping water
  • Vandal-resistant

What's in the box:

  • Axis Communications Q6052-E Outdoor Day&Night D1 60Hz PTZ Network Dome Camera
  • Clear Dome Cover (Premounted)
  • Axis High PoE 60W Midspan 1-Port
  • IP66-Rated RJ45 Push-Pull Connector
  • Sunshield
  • Printed Materials (Installation Guide/2x Extra Serial Number Label/AVHS Authentication Key)
  • Axis Communications 3 Year Limited Warranty
