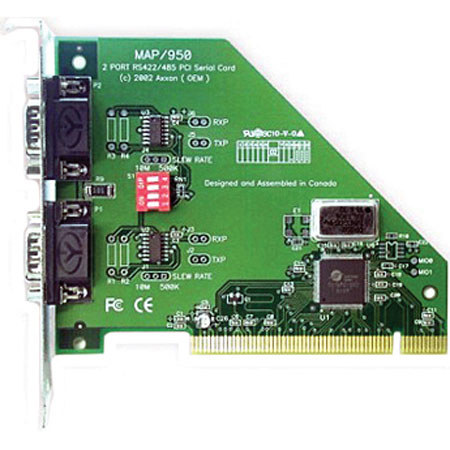

Axxon 2 Port RS422/RS485 PCI Controller Card
See all Axxon items

Axxon 2 Port RS422/RS485 PCI Controller Card

SKU: AXLF547KB
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Axxon 2 Port RS422/RS485 PCI Controller Card Specifications

  • Ports

    2x RS422/RS485 with 16C950 UART

  • Form Factor

    Standard Height PCI

  • System Requirements

    Available 5V PCI Expansion Slot
    Compatible with AMD Athlon/Pentium CPU Motherboards

  • Buffer

    128B Transmit/Receive

  • Data Transfer Speed

    Up to 10Mbps

  • Supported Operating Systems

    Windows 10, 8.x, 7.0, 2000, 2003 Server, XP32/XP64, NT4, Vista, Server 2008, Windows Server 2012; VMWare; Plug and Play in Linux

About Axxon 2 Port RS422/RS485 PCI Controller Card

The 2-Port RS422/RS485 PCI Controller Card from Axxon connects to a 5V PCI slot, adding two RS422/RS485 ports to your computer. It's designed with a standard-height mounting bracket.

Axxon 2 Port RS422/RS485 PCI Controller Card Features

  • Ultra fast speed: Supports up to 10Mbps using RS422/485 interface
  • New Design with Slew Rate controlled transceivers for slow to fast communication modes
  • TX+ and TX- lines; RX+ and RX- lines
  • RS422/RS485 switch selectable operation modes
  • RS422 Mode: TX and RX Active
  • RS485: Full/Half Duplex support
  • 15kv ESD HBM Surge Protection (25kv IEC61000-4-5 optional)
  • Fail Safe Receiver Biasing
  • RS485 Auto-gating of the transmitter via hardware
  • Plug & Play Compatible
  • Support for TX and RX line reversals
  • Slew Rate controlled transceivers for Error-free communications
  • Short-Circuit and current protected transceivers
  • Onboard switch selectable 120 ohm terminators (user provided terminators are optional)
  • Default clock 1.8432Mhz (460k max operation; Higher speeds will require optional clock modification)
  • Power Management 1.0 Compliant
  • Compatible with AMD Athlon/Pentium CPU Motherboards
  • Low Noise 4 Layer PCB
  • IRQ Sharing Capable (Both ports use single Interrupt)
