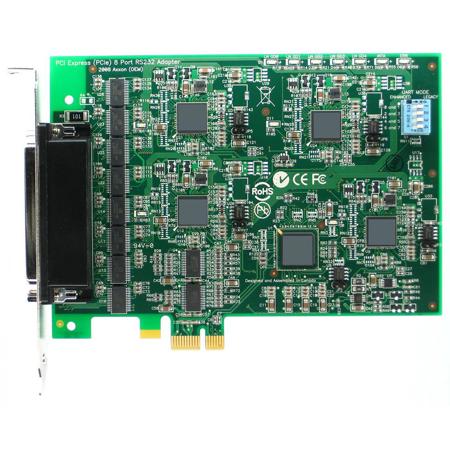

Axxon 8 Serial Port RS232 I/O Card

Where innovation meets functionality, the Axxon LF799KB is the industry's first 8 Serial Port RS232 I/O Card designed for PCI Express (PCIe) expansion slots. This groundbreaking technology allows for the swift integration of eight RS232 serial ports into any computer system equipped with the latest PCIe expansion slots.

The single-slot adapter comes complete with a sophisticated 8-port cable (HD78 to 8 of DB9M), providing a seamless connection. It features eight high-speed 16C950 serial ports, compatible with 1x, 4x, 8x, and 16x lane expansion slots. The standard height mounting and the inclusion of a complex cable (HD78M to 8 of DB9M) ensure easy installation and setup.

The Axxon LF799KB card is equipped with a 16C950 UART, offering eight times the buffer capacity of the 16550 model. It also boasts 128 Byte Transmit/Receive Buffers and hardware auto-flow control for efficient data management. The true 1 Megabaud RS232 transceivers ensure high-speed data transfer.

This plug-and-play compatible card features software-selectable non-volatile clock divisors and an RS232F electrical interface. It also offers robust protection with 15 kv ESD surge serial port protection and short-circuit, thermal, and current protected RS232 transceivers.

The transceivers contain an onboard charge pump, further enhancing the card's performance. The Axxon LF799KB card supports a wide range of operating systems, including Microsoft Windows 9x, ME, 2000, XP, XP64, NT4, 2003-32 bit, 2003-64 bit, QNX, OS/2 Warp 4.0, and Linux.

Linux users, in particular, will appreciate the ease of installation of this advanced card, as it does not require kernel recompilation, embedding of add-on device drivers, or insertion of add-on modules. The Axxon LF799KB card is plug-and-play supported by all current Linux kernels, making it a versatile and user-friendly choice for all your RS232 serial port needs.
