Axis Communications M3027-PVE Day & Night Vandal-Resistant Outdoor-Ready Fixed Mini Dome Network Camera, 5MP, H.264 Compression

SKU: AXM3027PVE

This item is no longer available.

Recommended Alternatives

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?MICHAEL S : work

Reviews about this item

Review Summary

Axis Communications M3027-PVE Specifications

  • Image sensor

    1/3.2" progressive scan RGB CMOS

  • Lens

    M12 mount, Fixed iris, Megapixel resolution, IR corrected
    2.8 mm, 187deg. view, F2.0

  • Day & Night

    Automatically removable infrared - cut filter

  • Light sensitivity/ minimum illumination

    Color: 0.3-200000 lux, F2.0, B/W: 0.06 lux, F2.0

  • Shutter Time

    1/24000 s to 2 s

  • Camera angle adjustment

    Rotation: +/-180deg.

  • Video compression

    H.264 Main Profile ( MPEG - 4 P art 1 0/A VC), Motion JPEG
    Also H.264 Baseline Profile

  • Video Resolutions

    2592x1944 ( 5 MP) to 160x120

  • Frame rate

    12 fps in 360deg. overview and panoramic views with power line frequency 50/ 60 Hz

  • Video streaming

    Multiple, individually configurable streams in H.264 and Motion JPEG, Controllable frame rate and bandwidth VBR/CBR H.264

  • Multi-view streaming

    360deg. overview . Dewarped panorama, double panorama and quad views. Up to 4 individually cropped out and dewarped view areas. When streaming 4 dewarped view areas and one 360deg. overview in VGA resolution, the frame rate is 1 0 fps per stream

  • Pan/Tilt/Zoom

    Digital PTZ of view areas, Preset positions, Guard tour . Digital PT of panorama, double panorama and quad views

  • Image settings

    Compression, Color, Brightness, Sharpness, Contrast, White balance, Exposure control, Backlight compensation, Wide Dynamic Range - dynamic contrast, T ext and image overlay, Mirroring of images, Privacy mask
    Exposure zones, Fine tuning of low light behavior, Rotation: 0deg., 180deg.

  • Security

    Password protection, IP address filtering, HTTPS encryption, IEEE 80 2.1X network access control, Digest authentication, User access log

  • Supported protocol

    IPv4/v6, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMPv1/v2c/v3 (MIB - II), DNS, DynDNS, NTP, RTSP, RTP, T CP, UDP, IGMP, RT CP, ICMP, DHCP, ARP, SOCKS, SSH

  • Application Programming Interface

    Open API for software integration, including VAPIX and AXIS Camera Application Platform
    AXIS Video Hosting System (A VHS) with One - Click Camera Connection
    ONVIF Profile S

  • Intelligent video

    Video motion detection, Active tampering alarm, AXIS Camera Application Platform enabling installation of additional applications

  • Event triggers

    Intelligent video, Edge storage events, External input

  • Event actions

    File upload: FTP, HTTP, network share and email
    Notification: email, HTTP and TCP
    External output activation
    Video recording to edge storage
    Pre - and post - alarm video buffering, Go to PTZ preset, Guard tour

  • Data streaming

    Event data

  • Built - in installation aids

    Pixel counter

  • Casing

    IP66 - and NEMA 4X - rated, IK1 0 impact - resistant aluminum casing with transparent, polycarbonate cover and dehumidifying membrane, Encapsulated electronics, Captive screws (resitorx 10) Color: White NCS S 1002 - B

  • Memory

    512 MB RAM, 128 MB Flash

  • Power

    Power over Ethernet IEEE 80 2.3af /80 2.3at Type 1
    Class 2, max. 4.5 W

  • IR illumination

    High - efficiency, long - life 850 nm IR LEDs. Range of reach up to 10m (33') depending on scene

  • Connectors

    Male RJ45 1 0BASE - T/1 00BASE - TX P oE on a 2 m ( 6.6') network cable

  • Edge storage

    MicroSD/microSDHC/microSDXC slot supporting memory card up to 64GB (card not included), Support for recording to dedicated network - attached storage (NAS)

  • Operating conditions

    -30 deg.C to 50 deg.C ( - 22 deg.F to 122 deg.F) Humidity 1 0-1 00% RH (condensing)

  • Approvals

    EN 55022 Class B, EN 61000-6-1, EN 61000-6-2, EN 55024, FCC Part 15 Subpart B Class B, ICES-003 Class B, VCCI Class B, AS/NZS CISPR 22 Class B, KCC KN22 Class B, KN24, IEC/EN/UL 60950-22, EN 50581, IEC 60529 IP66, NEMA 250 Type 4X, IEC 62262 IK10

  • Video management software

    AXIS Camera Companion (included), AXIS Camera Station and video management software from Axis' Application Development Partners (not included). Client side dewarping of AXIS M30 27 - PVE 360deg. overview is supported in Axis' video management software

  • Weight

    740g / 26.10oz

  • UPC Code

    7331021043343

About Axis Communications M3027-PVE

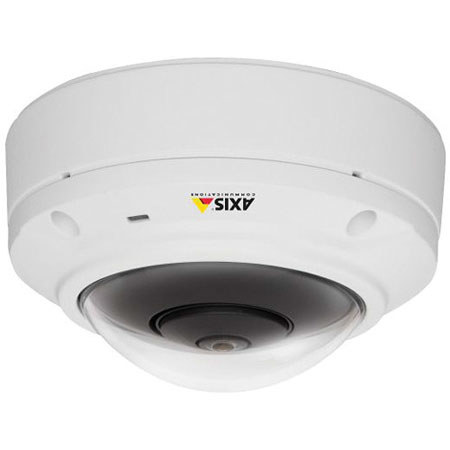

The Axis Communications M3027-PVE Day & Night Vandal-Resistant Outdoor-Ready Fixed Mini Dome Network Camera is a 5-megapixel fixed mini dome that provides detailed, high quality 360deg. or 180deg. panoramic views. The vandal resistant, outdoor-ready mini dome can be used to detect activities, track the flow of people and improve area management. The camera is ideal for installations indoors or outdoors at hotels, gas stations, boutiques, restaurants, schools and offices.

Different views

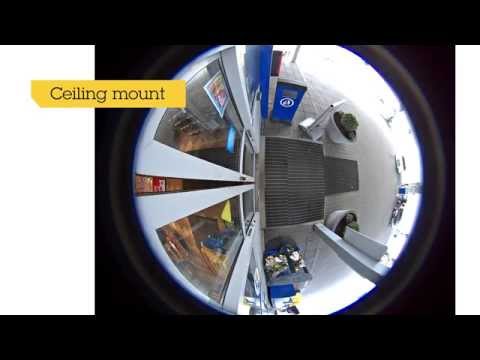

Axis M3027-PVE offers different views: 360deg. overview and dewarped views such as panorama, double panorama and quad views. The quad view is suitable, for instance, when the camera is positioned at an intersection. The camera also provides four individually cropped out and dewarped view areas where users can digitally pan, tilt and zoom in on areas of interest. Multiple video streams in H.264 and Motion JPEG can be sent simultaneously.

Outdoor-ready, day & night
It can be mounted on a wall or ceiling. The camera comes focused at delivery, which shortens the installation time. It has a 2 m (6.6 ft.) network cable attached and supports Power over Ethernet (IEEE 802.3af), which eliminates the need for power cables and reduces installation costs.

Intelligent video and video management
It offers video motion detection and active tampering alarm. The camera also supports the installation of intelligent video applications, such as people counting and heat mapping, through the AxIS Camera Application Platform. In addition, the camera's built-in microSDHC card slot enables several days of recording to be stored locally on a memory card. When local storage is used together with the free Axis Camera Companion, users have an easy way to remotely view and manage video from up to 16 cameras per site.

What's in the box:

  • Axis Communications M3027-PVE Day & Night Vandal-Resistant Outdoor-Ready Fixed Mini Dome Network Camera
  • Installation Guide
  • Installation and Management Software CD
  • Windows Decoder 1 User License
  • Drill Hole Template
  • Resitorx L-key
  • Terminal Block Connector
  • Axis Communications 1 Year Limited Warranty
