Axis Communications M3206-LVE Specifications

Camera
  • Image sensor

    1/2.5" progressive scan RGB CMOS

  • Lens

    2.9 mm, F2.0
    Horizontal field of view: 105 Degree
    Vertical field of view: 79 Degree
    Fixed iris, IR corrected

  • Day and night

    Automatically removable infrared-cut filter

  • Minimum illumination

    Color: 0.22 lux at 50 IRE, F2.0
    B/W: 0.05 lux at 50 IRE, F2.0
    0 lux with IR illumination on

  • Shutter speed

    1/32500 s to 1/5 s

  • Camera angle adjustment

    Pan +/-175 Degree , tilt 70 Degree , rotation +/-180 Degree

System on chip (SoC)

Jump to...
  • Model

    S5L

  • Memory

    1024 MB RAM, 512 MB Flash

  • Video compression

    H.264 (MPEG-4 Part 10/AVC) High and Main Profiles
    H.265 (MPEG-H Part 2/HEVC) Main Profile
    Motion JPEG

  • Resolution

    2304x1728 to 320x240

  • Frame rate

    Up to 25/30 fps with power line frequency 50/60 Hz

  • Video streaming

    Multiple, individually configurable streams in H.264, H.265 and Motion JPEG
    Axis Zipstream technology in H.264 and H.265
    Controllable frame rate and bandwidth
    VBR/ABR/MBR H.264 and H.265
    HDMI

  • Multi-view streaming

    2 individually cropped out view areas

  • HDMI output

    HDMI 1080p (16:9) @25/30 fps (50/60 Hz)
    HDMI 720p (16:9) @50/60 fps (50/60 Hz)

  • Image settings

    Compression, color saturation, brightness, sharpness, contrast, white balance, day/night threshold, exposure control (including automatic gain control), WDR up to 115 dB depending on scene, fine tuning of low-light behavior, text and image overlay, polygon privacy masks, mirroring, rotation: 0 Degree , 90 Degree , 180 Degree , 270 Degree ,

  • Pan/Tilt/Zoom

    Digital PTZ

  • Audio input/output

    Two-way audio connectivity via optional AXIS T61 Audio and I/O Interfaces with portcast technology

Network

Jump to...
  • Security

    Password protection, IP address filtering, HTTPSa encryption, IEEE 802.1x (EAP-TLS) a network access control, digest authentication, user access log, centralized certificate management, brute force delay protection, signed firmware

  • Supported protocols

    IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTP/2, HTTPSa, SSL/TLSa, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SOCKS, SSH, SIP, LLDP, CDP, MQTT v3.1.1, Syslog, Link-Local address (ZeroConf)

System integration

Jump to...
  • Application Programming Interface

    Open API for software integration, including VAPIX and AXIS Camera Application Platform; AXIS Video Hosting System (AVHS) with One-Click Connection, One-click cloud connection
    ONVIF Profile G, ONVIF Profile S and ONVIF Profile T
    Support for Session Initiation Protocol (SIP) for integration with Voice over IP (VoIP) systems, peer to peer or integrated with SIP/PBX.

  • Event conditions

    Analytics, external input, supervision of input, edge storage events, virtual inputs through API MQTT subscribe

  • Event actions

    Record video: SD card and network share MQTT publish
    Upload of images or video clips: FTP, SFTP, HTTP, HTTPS, network share, and email
    Pre- and post-alarm video or image buffering for recording or upload
    Notification: email, HTTP, HTTPS, TCP, and SNMP trap Overlay text, external output activation

  • Data streaming

    Event data

  • Built-in installation aids

    Pixel counter, OptimizedIR with adjustable IR illumination intensity

Analytics

Jump to...
  • Applications

    Included: AXIS Motion Guard, AXIS Fence Guard, AXIS Loitering Guard AXIS Video Motion Detection, active tampering alarm
    Supported: Support for AXIS Camera Application Platform enabling installation of third-party applications

General

Jump to...
  • Casing

    IP66- and NEMA 4X-rated, IK10 impact-resistant polycarbonate casing with hard-coated dome and dehumidifying membrane Encapsulated electronics and captive screws
    Color: White NCS S 1002-B

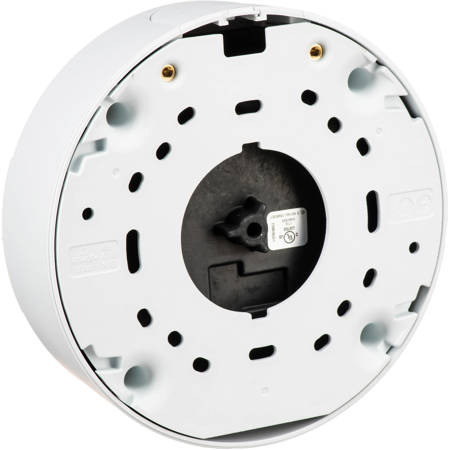

  • Mounting

    Mounting bracket with holes for junction box (double-gang, single-gang, and 4" octagon) and for wall or ceiling mount 1/4"-20 UNC tripod screw thread

  • Sustainability

    PVC free

  • Power

    Power over Ethernet IEEE 802.3af/802.3at Type 1 Class 3 Max 12.5 W, typical 4.2 W

  • Connectors

    RJ45 10BASE-T/100BASE-TX PoE
    HDMI type D
    I/O: 4-pin 2.5 mm (0.098 in) terminal block for 1 supervised digital input and 1 digital output (12 V DC output, max. load 25 mA)
    Audio and I/O connectivity via AXIS T61 Audio and I/O Interfaces with portcast technology

  • IR illumination

    Power-efficient, long-life 850 nm IR LEDs Range of reach 20 m (65 ft) or more depending on the scene

  • Storage

    Support for microSD/microSDHC/microSDXC card Support for SD card encryption (AES-XTS-Plain64 256bit)
    Recording to network-attached storage (NAS)

  • Operating conditions

    -40 Degree F to 122 Degree F (-40 Degree C to 50 Degree C)
    Start-up temperature: -22 Degree F to 122 Degree F (-30 Degree C to 50 Degree C)
    Humidity: 10-100% RH (condensing)

  • Storage conditions

    -40 Degree F to 149 Degree F (-40 Degree C to 65 Degree C)
    Humidity: 5-95% RH (non-condensing)

  • Approvals EMC

    EN 55032 Class A, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), VCCI Class A, RCM AS/NZS CISPR 32 Class A, KC KN32 Class A, KC KN35
    Safety: IEC/EN/UL 62368-1, IEC/EN/UL 60950-22, IEC/EN 62471, IS 13252
    Environment: IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, IEC/EN 62262 IK10, IEC/EN 60529 IP66, NEMA 250 Type 4X
    Network: NIST SP500-267

  • Video management software

    AXIS Companion, AXIS Camera Station, video management software from Axis Application Development Partners

  • Languages

    English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Traditional Chinese

  • Dimensions

    Without weathershield: Height: 4.06" (104mm)
    Diameter: 5.87" (149mm)

  • Weight

    With weathershield: 1.6 lbs (720g)

  • UPC Code

    7331021064492

About Axis Communications M3206-LVE

AXIS M3206-LVE Network Camera
Robust wide-angle surveillance in 4 MP with IR

AXIS M3206-LVE delivers an excellent wide-angle view in 4 MP resolution for both indoor and outdoor surveillance. This robust, cost-efficient fixed dome offers best-in-class video quality and built-in IR illumination for clarity even in complete darkness.

Uncover the darkness
AXIS M3206-LVE Network Camera offers 4 MP and a wide-angle view of 105 Degree . It features WDR to give you clarity when there's both dark and light areas in the scene. Plus, with built-in IR illumination, you'll enjoy clear, reflection-free footage in complete darkness so there's no need to spend money lighting your premises at night.

Ready to connect
AXIS M3206-LVE features edge storage so you can record directly to the camera, providing redundancy in case the network connection is lost. Plus, Zipstream enhanced with H.264 or H.265 significantly lowers bandwidth and storage requirements. It's also possible to connect devices to the I/O ports to trigger alarms or actions, and the connection to the input can be supervised so it sends an alarm if the connection is cut. Furthermore, the HDMI port can be connected to a monitor for public viewing or used as a virtual window for the backdoor or entrance.

Best-in-class quality
This cost-efficient camera delivers best-in-class video quality and enhanced surveillance capabilities with support for analytics such as AXIS Guard Suite. Additionally, you can add support for audio using AXIS T61 Audio and I/O Interface enabling you to listen in to transactions or incidents, or even communicate warnings to intruders. Vandal-resistant and outdoor ready, the camera comes with a weathershield, and can be mounted on walls, ceilings and junction boxes using the included mounting bracket.

Wide Dynamic Range - WDR
For maximum forensic value and usability in scenes with both very bright and very dark areas.

Zipstream
Save bandwidth and space without sacrificing valuable information.

Axis Communications M3206-LVE Features

  • 4 MP video quality
  • WDR and IR illumination
  • Wide-angle horizontal and vertical FOV
  • HDMI output and I/O connectivity
  • Zipstream and support for H.264/H.265

Key Features

  • 4 MP video quality
  • WDR and IR illumination
  • Wide-angle horizontal and vertical FOV
  • HDMI output and I/O connectivity
  • Zipstream and support for H.264/H.265

What's in the box:

  • Axis Communications M3206-LVE 4MP Digital PTZ Network Camera
  • Resistorx T20 L-Key
  • Terminal Block Connectors
  • Cable Gaskets
  • Connector Guard
  • Weathershield
  • Windows Decoder 1-User License
  • Drill Template
  • User Manual
  • Axis Communications 5 Year Limited Warranty
