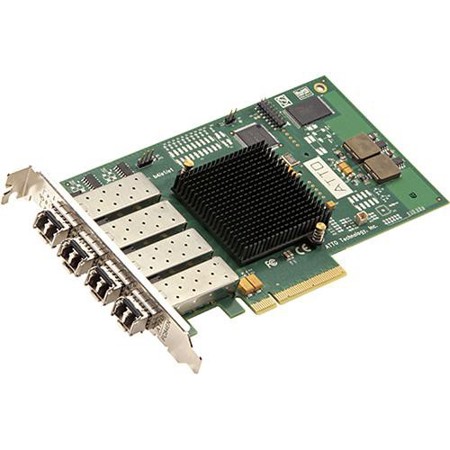

ATTO Technology Celerity FC-84E Single Channel x8 PCIe 2.0 to 8Gbps Fiber Channel Host Bus Adapter with 4x LC SFP+ Transceiver, Low Profile

The ATTO Celerity FC-84E provides an advanced storage connectivity solution with high performance, intelligence and scalability. Celerity FC-84E 8Gb/s quad-channel HBAs deliver up to 3200 MB/s in a single PCIe slot solution, allowing original equipment manufacturers and system integrators to design state-of-the-art data infrastructures. The FC-84E is well-suited for the needs of Linux and Windows platforms operating in high performance computing, virtualization and other high IOP environments typically found in enterprise data centers.

• Quad Channel
• 3200MB/s per channel throughput in full duplex mode
• Driver support for Windows, Linux, Mac OS X, VMware and more
• Exclusive Advanced Data Streaming (ADS) Technology
• ATTO ConfigTool for customized performance settings
• Proven interoperable with leading storage hardware and software vendors
• Complete SAN connectivity when combined with ATTO FibreConnect 8Gb/s Fiber Channel switches
• Support for N-Port ID Virtualization and Virtual Fabric
• Target Mode (Developer and SCST)
• Auto Negotiation to 8GB, 4GB and 2GB devices
• Supports arbitrated loop, point-to point and direct fabric/switch attach
• ANSI Fiber Channel: FC-FS, FCP, FC-AL, FC-AL2, FC-PLDA, FC-FLA
• Flash ROM for easy field upgrades
• Fiber Channel Class 3 Support
• Buffer Credit: 41
• Software RAID support with ATTO's Power Center software
• Initiator and target mode (OEM) support
• Supports Windows FDMI and WMI
• Includes 4x 8Gb/s LC SFP+
• x8 PCI Express 2.0 (PCIe 2.0) host connection
• Includes high- and low-profile form factor bracket
• Backward compatible with 4Gb/s and 2Gb/s Fiber Channel products
• Proven industry interoperability with support for SNIA HBA API
• RoHS Compliant

Meeting tomorrow's connectivity needs today, Celerity Fiber Channel Host Bus Adapters (HBAs) increase overall Fiber Channel system performance and drive intelligence all the way to the edge of the SAN utilizing ATTO's Advanced Data Streaming (ADS) Technology. Included with all ATTO HBAs are easy-to-use utilities ConfigTool and vConfigTool enabling management, monitoring and configuration which leverages an intuitive GUI. ATTO Celerity HBAs offer MultiPath Director, a specialized multipathing driver incorporated into ATTO's Fiber Channel host bus adapters that enables Mac, Windows or Linux workstations and/or servers to connect to enterprise-class storage.

Industry Proven Technology
ATTO Technology Inc, has nearly 30 years of experience developing high performance and reliable Fiber Channel storage connectivity to deliver first-to-market solutions to customers. Celerity Host Bus Adapters (HBAs) are consistently the highest performing HBAs for video editing, digital audio, video on demand and database application. The integrated family of Celerity 8Gb/s Fiber Channel HBAs boast an extensive list of customer design wins and certifications with respected industry partners.

Performance Engineered
Celerity HBAs are designed to provide fast, redundant and highly available connectivity to Fiber Channel storage and are engineered to manage latency for real time applications. ATTO's exclusive Advanced Data Streaming (ADS) technology provides controlled acceleration of data to deliver the most consistent performance and reliable data transfers. ATTO pays close attention to detail in board design and signal integrity to minimize transmission errors and data corruption. Specialized Fiber Channel drivers with support for multiple OS platforms and OEM specific solutions such as target mode and multipathing make ATTO the premier choice for high- performance Fiber Channel SAN connectivity.

Flexible Connectivity Solutions
With Quad configurations, Celerity 8Gb/s Fiber Channel HBAs are an ideal solution for users looking to achieve the highest I/O and data throughput for advanced video and enterprise class IT applications. Celerity 8Gb/s HBAs offer driver support for Windows, Linux, Mac OS X and VMware, providing a single connectivity solution for customers with heterogeneous operating system environments.

Advanced Management Tools
ATTO's easy-to-use ConfigTool features an intuitive GUI that simplifies the installation, management and monitoring of the HBA. With advanced troubleshooting and performance tuning capabilities, Celerity HBAs provide users with sophisticated diagnostics and the flexibility to control settings for specific applications.

MultiPath Director
High availability storage connectivity solutions for Media and Environment.

• Multiple paths to storage for improved data integrity and reliability
• High-performance shared storage for workgroups
• Load-balancing and fail over in heterogeneous OS environments

Applications
Celerity Fiber Channel HBAs deliver high-performance and reliable connectivity solutions for the most demanding storage environments, Including digital content creation, tape streaming and backup, rich content delivery, server clustering and complex databases. Celerity HBAs enable users to achieve the ultimate in I/O performance for real time and transactional applications.

Advanced Data Streaming (ADS)
Latency-management technology that controls the acceleration of data transfers to move large amounts of data faster and more efficiently.

User Benefits
• Superior performance for enterprise applications
• Low power consumption
• Quad port card maximizes usage of server slots
• Increase switch port availability
• Reduced cost per MB of data transferred
• Seamless integration into existing fiber channel SANs Support for virtualized server environments
• Extensive certification with SAN infrastructure components
