8 External
Low Profile
Highest available performance - 1,200 MB/s maximum sustained throughput per port; 1M+ lOPS sustained
Flexible connectivity options for internal and external storage
Compatible with SAS and SATA technology Low power consumption
Management APIs via CSMI and IOCTLs
Scriptable Command Line Interlace (CLI) for advanced functionality, including phy and cable management
ATTO ConfigTool GUI support for management and configuration
Extensive event and trace logging
External locate LED on bracket
Onboard temperature monitoring
PCI Express 3.0 x8 host interface
PCIe low profile form factor
Supports PCI Express Base Spec 3.0
Supports PCI Express CEM Spec 3.0
SFF8644 x4 Mini SAS HD connectors externally
Full cable management and reporting
Supports cable lengths up to 1m (SATA), 10m (passive copper) and 100m (active optical)
Easy-to-install full height and low profile connection brackets included
Designed to support 12Gb/s SAS signaling
UEFI v2.3.1 with HII support
4,500,000 Hours MTBF
Windows / Windows Server
SUSE Linux Enterprise Server (SLES)
Red Hat Enterprise Linux (RHEL)
Cent OS
Fedora Linux
VMware ESXi Server
FrccBSD
CE and IEC 60950
EU RoHS Compliant (2011/65/EU)
EMC Compliance
FCC Part 15, Subpart B (Class B)
ICES-003 (Canada)
EN 55022: 2010, CISPR 22 (Class B)
EN55024: 2010
VCCI V3/201 3.4
AS/NZS CISPR22:201 O
Hardware Environment:
Airflow: 100 lf/m (minimum) recommended
Temperature: 0 to 55 deg. C (32 to 131 deg. F)
Humidity: 10 to 90% (non-condensing)
Storage Environment:
Temperature: -40 to 70 deg. C (-40 to 158 deg. F)
Humidity: 5 to 95% non-condensing
11W (Typical)
6.60 x 2.71" (167.64 x 68.83mm)

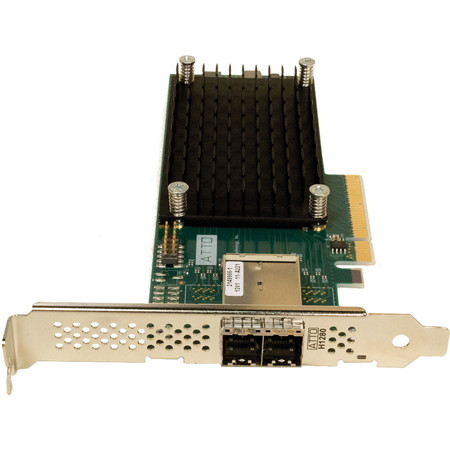

The ExpressSAS H1280 leverages next-generation storage technologies - PCIe 3.0 host interconnect and 12Gb/s SAS/SATA interface to storage. Featuring 8-external ports using the latest miniSAS HD connector, the H1280 is designed with the enterprise customer in mind. With extensive testing and qualifications, it performs flawlessly in transactional environments such as banking, finance, business intelligence, cloud computing and database applications.
9600 MB/s transfer rate
8 external ports
SFF-8644 miniSAS HD connectors designed to support 12Gb/s data rates (supports copper and optical cables
SAS, SATA, SATA II connectivity
Backward-compatible with 6Gb/s and 3Gb/s SAS/SATA products
RoHS Compliant
3-year standard product warranty
Advanced Data Streaming (ADS) Technology provides controlled acceleration for smooth high performance data streaming
NUMA support for high performance multiprocessor applications
WriteStop available for specialized data security applications for OEMs
Advanced management through ConfigTool and vConfigTool utilities
Up to 1,200 MB/s throughput per port
Over 1 million sustained lOPS
Features a high-performance x8 PCIe 3.0 host interface
Supports up to 1024 targets
Low-profile, MD2 short form factor for versatility and improved airflow
Copper and optical miniSAS HD high-density connectors with cable management support
Driver support for the latest Windows, Linux, VMware and FreeBSD operating systems
Target mode software development kit available
Automatic link negotiation: i2Gb/s, 6Gb/s and 3Gb/s SAS targets, 6Gb/s, 3Gb/s and 1/5Gb/s SATA targets
Supports Serial SCSI Protocol (SSP), SATA Tunneling Protocol (STP), SMP, SAT and direct attached SATA protocol
Supports T10-DIF/PI standards
16MB on-board flash memory to store persistent parameters
Wide-port end device support
Support for advanced format storage media: 512e, 4Kn
Supports ATAPI devices
Dual port SAS support for redundant configurations
Support for SAS tape devices and transport layer retries (TLR) for error handling
Target mode driver (TMD) development kit available for storage servers, storage systems and appliances
ATTO 12Gb SAS HBAs double the performance over previous generations of SAS/SATA cards and offer fresh new features that reduce downtime, improve efficiency and save money on the bottom line. They provide more flexibility for connecting storage, greatly decrease latency to SATA drives, make it easier to manage the overall storage infrastructure and improve connection diagnostic capabilities - all at a lower total cost of ownership. Additionally, ExpressSAS HBAs provide the highest and smoothest throughput for streaming applications such as tape backup and archiving, video post-production, geologic survey and video-on-demand applications.
Industry Proven Technology
ATTO Technology, Inc.'s ExpressSAS 12Gb/s SAS host bus adapters (HBAs) provide high-performance data protection to direct attached SAS and SATA storage. For nearly 30 years, ATTO has been at the forefront of the latest innovations in storage connectivity.
Flexible Connectivity Solutions
The ExpressSAS 12Gb/s SAS HBAs are available with a wide selection of 8, 12 and 16 port options to support a dense and efficient connection to storage from rack-mounted servers and workstations in datacenter, data warehousing, video on demand and other high-availability, high-performance applications.
Performance Engineered
ExpressSAS 12Gb/s HBAs combine 12Gb/s SAS speeds and x8 PCI Express 3.0 with powerful hardware and software elements to manage latency in real-time environments. Exclusive Advanced Data Streaming (ADSTM) technology maximizes CPU processes to deliver smooth and reliable data transfers and the highest consistent performance. ATTO pays close attention to detail in board design and signal integrity to minimize transmission errors and data corruption. These differentiating capabilities make ATTO the premier choice for high-performance direct-attached SAS/SATA storage connectivity.
Advanced Management Tools
ATTO's easy-to-use ConfigTool features an intuitive GUI that simplifies the installation, management and monitoring of the host bus adapter. With advanced troubleshooting and performance tuning capabilities, ExpressSAS HBAs provide users with sophisticated diagnostics and the flexibility to control settings for specific applications.
We offer a broad array of management and diagnostic capabilities. Cables, the most significant point of failure, are often difficult to troubleshoot. ExpressSAS 12Gb/s SAS HBAs are able to help isolate cable and connector failures (and intermittent problems) through independent control of each port, as well as discovery and cable management of data passed through the mini-SAS HD connectors.
Applications
The ExpressSAS 12Gb/s SAS/SATA family of HBAs offers the fastest available connection to direct-attached SAS or SATA storage
The impressive speed of the 12Gb/s SAS interface, coupled with a x8 PCI Express 3.0 host interface, delivers a dense and efficient connection to all types of storage - from rack-mounted servers and workstations in data center, data warehousing, VOD and other high availability, high-performance applications
ADS latency-management technology controls the acceleration of data transfers to move large amounts of data faster and more efficiently
