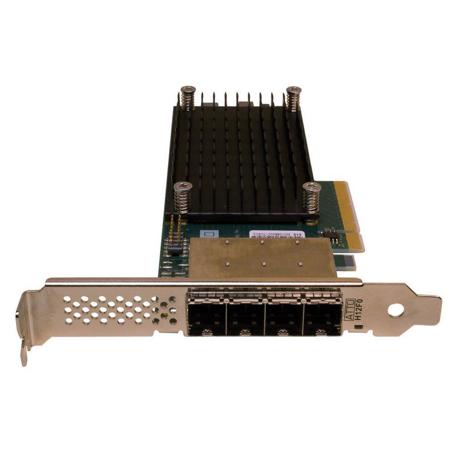

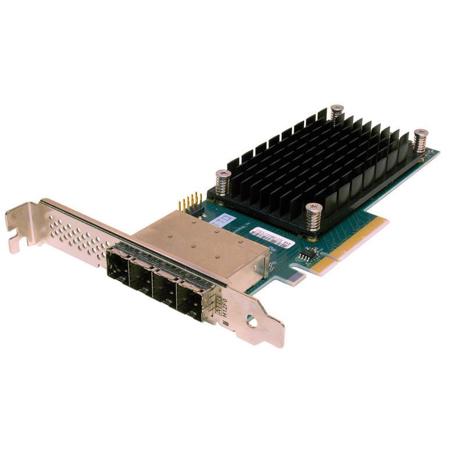

ATTO Technology ExpressSAS H12F0 16 External Port SAS/SATA to PCIe 3.0 Host Bus Adapter

SKU: AYESAH12F000 MFR: ESAH-12F0-000
Earn VIP Reward Points

Key Features

  • Boost your server's performance with this ATTO ExpressSAS H12F0 host bus adapter.
  • Experience reliable data transfers with this SAS/SATA to PCIe 3.0 adapter card.
  • Ensure compatibility; this PCIe 3.0 HBA supports Windows, Linux, and VMware ESXi.
  • Manage your storage efficiently using the ATTO ConfigTool GUI management interface.
  • Connect up to 16 external SAS/SATA devices via the external mini-SAS HD connectors.
  • Enjoy a 3-year warranty, ensuring the reliability of your ATTO Technology adapter card.
See More Product Details
Temporarily On Backorder?Expected Availability: 10/2025Request assistance or get notified
Calculate Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$124.99

3 Year

$159.99

4 Year

$189.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

ATTO Technology ExpressSAS H12F0 Specifications

  • Ports

    16x External Ports over 4x SFF 8644 (4x) External Mini-SAS HD Connectors

  • Bus Specifications

    PCIe 3.0 x8 host interface
    PCIe low profile form factor
    Supports PCIe base specification 3.0
    Supports PCIe CEM specification 3.0

  • Connectivity

    Full cable management and reporting
    Easy to install full height and low profile connection brackets (included)
    Designed to support 12Gb/s SAS signaling

  • Management Tools

    Management APIs via CSMI and IOCTLs
    Scriptable Command Line Interface (CLI) for advanced functionality, including phy and cable management
    ATTO ConfigTool GUI support for management and configuration
    Event and trace logging
    External locate LED on bracket
    Onboard temperature monitoring

  • Reliability

    755,000 hours

  • Operating System Support

    Windows Server 2008 R2 and Server 2012
    Windows 7 and Windows 8
    SUSE Linux Enterprise Server (SLES) v 11 SP1 and 11 SP2
    Red Hat Enterprise Linux (RHEL) 5 and 6
    CentOS 5 and 6
    VMware ESXi 5.5

  • Boot Support

    UEFI v2.3.1 with HII support

  • Safety and Environmental Approvals

    UL, CSA, CE and IEC 60950
    EU RoHS compliant (2011/65/EU)

  • EMC Compliance

    FCC Part 15, subpart B (Class B)
    ICES-003 (Canada)
    EN55022: 2010, CISPR 22 (Class B)
    EN55024: 2010
    VCCI V3/2013.4
    AS/NZS CISPR22: 2010

  • Power

    Maximum: 25W
    Typical: 17W

  • Operating Temperature

    Hardware Environment:
    Airflow: 100 LFM (minimum)
    Temperature: 32 to 131 deg. F / 0 to 55 deg. C
    Humidity: 10 to 90% (non-condensing)

    Storage Environment:
    Temperature: -40 to +158 deg. F / -40 to +70 deg. C
    Humidity: 5 to 95% non-condensing

  • Dimensions (L x H)

    6.6 x 2.71" / 16.76 x 6.88cm

About ATTO Technology ExpressSAS H12F0

Make the most of your data-intensive applications with the ExpressSAS H12F0 16 External Port SAS/SATA to PCIe 3.0 Host Bus Adapter, a high-performance and reliable solution for enterprise-level storage connectivity. This advanced adapter harnesses the power of PCIe 3.0 host interconnect and a 12Gb/s SAS/SATA interface, ensuring efficient and rapid data transfer rates of up to 16Gbps, which is essential for applications requiring swift movement of large data volumes.

Designed with 16 external ports featuring the latest miniSAS HD connectors, the H12F0 is engineered to meet the rigorous demands of transactional environments, including banking, finance, business intelligence, cloud computing, and database applications. Its durable construction and extensive testing guarantee flawless performance in these critical sectors.

ATTO's 12Gb/s SAS HBAs not only double the performance over previous generations but also introduce innovative features that minimize downtime, enhance efficiency, and offer a reduced total cost of ownership. These features include increased flexibility in connecting storage, significantly reduced latency to SATA drives, simplified storage infrastructure management, and improved diagnostic capabilities.

The ExpressSAS H12F0 is particularly adept at delivering the highest and most consistent throughput for streaming applications such as tape backup, archiving, video post-production, geologic survey, and video-on-demand. It is equipped with ATTO's exclusive Advanced Data Streaming (ADS) Technology, which optimizes data transfer for bandwidth-intensive applications through a combination of features that manage the acceleration of data transfers effectively.

Included with the H12F0 is ATTO's user-friendly ConfigTool and vConfigTool, which provide an intuitive graphical user interface for streamlined management, monitoring, and configuration of the adapter. These tools enhance the user experience by making it easier to leverage the full capabilities of the adapter.

In summary, the ExpressSAS H12F0 is an indispensable component for users seeking an efficient, durable, and advanced external port SAS/SATA to PCIe 3.0 host bus adapter. Its compatibility with a wide array of devices and its ability to facilitate high-speed data transfers make it an excellent choice for professionals who demand top-tier performance and reliability from their storage connectivity solutions.

ATTO Technology ExpressSAS H12F0 Features

  • 19200 MB/s transfer rate
  • SFF-8644 miniSAS HD connectors designed to support 12Gb/s data rates
  • SAS, SATA, SATA II connectivity
  • Power Center Pro RAID 0, 1, 1e, 10
  • Backward-compatible with 6Gb/s and 3Gb/s SAS/SATA products
  • Driver support for Windows, Linux, VMware
  • RoHS Compliant
  • Advanced Data Streaming (ADS) Technology provides controlled acceleration for smooth high performance data streaming
  • NUMA support for high performance multiprocessor applications
  • WriteStop available for specialized data security applications for OEMs
  • Advanced management through ConfigTool and vConfigTool utilities

Warranty Information

This product has a limited warranty of 36 months for parts and 36 months for labor.

Key Features

  • Boost your server's performance with this ATTO ExpressSAS H12F0 host bus adapter.
  • Experience reliable data transfers with this SAS/SATA to PCIe 3.0 adapter card.
  • Ensure compatibility; this PCIe 3.0 HBA supports Windows, Linux, and VMware ESXi.
  • Manage your storage efficiently using the ATTO ConfigTool GUI management interface.
  • Connect up to 16 external SAS/SATA devices via the external mini-SAS HD connectors.
  • Enjoy a 3-year warranty, ensuring the reliability of your ATTO Technology adapter card.

What's in the box:

  • ATTO Technology ExpressSAS H12F0 16 External Port SAS/SATA to PCIe 3.0 Host Bus Adapter
  • Full Height and Low Profile Connection Brackets
  • ATTO Technology 3 Year Warranty
