ATTO Technology ExpressSAS R680 8 Port External 6Gb/s SAS/SATA RAID Adapter
See all ATTO Technology items

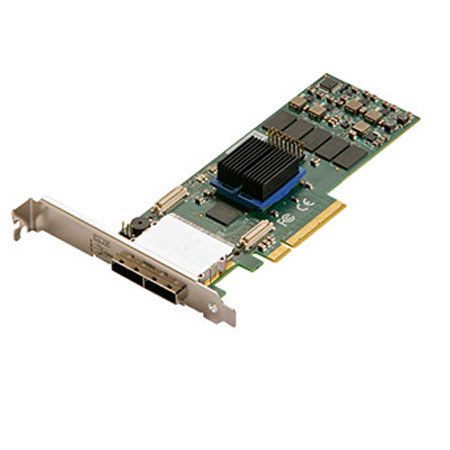

ATTO Technology ExpressSAS R680 8 Port External 6Gb/s SAS/SATA RAID Adapter

SKU: AYESASR68000
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

ATTO Technology ExpressSAS R680 Specifications

  • SAS/SATA Ports

    8

  • Port Config. (Ext/Int)

    8/0

  • Max. Data Rate

    6GB/s

  • Max. Transfer Rate

    4800MB/s

  • Bus Type

    PCIe 2.0 x8

  • Auto Negotiation

    SAS 2.0, SAS, SATA II, SATA

  • Connector Type

    (2) mini SAS (x4) SFF 8088 Internal

  • Max. Cable Length (SAS/SATA)

    32' (10m)/3.2' (1m)

  • Low-Profile Form Factor

    Yes

  • End Devices Supported

    256

  • Memory (ECC)

    512MB

About ATTO Technology ExpressSAS R680

The ATTO Technology ExpressSAS R680 8-External Port 6GB/s SAS/SATA RAID Adapter adds high-performance RAID protection to direct attached SAS and SATA JBOD storage. Delivering significant advancements in performance and flexibility with enterprise-class features, ExpressSAS R680 provides an affordable and reliable transition from 3 to 6GB/s SAS/SATA storage infrastructures in general IT, media and entertainment environments.The ExpressSAS R680 provides 6Gb/s SAS/SATA connectivity to Direct Attached Storage via 8 external ports.

ATTO Technology ExpressSAS R680 Features

  • 8 external ports in a low-profile form factor
  • x8 PCIe 2.0 host connection
  • 9.6GB/s throughput in full-duplex mode
  • SAS 2.0, SAS, SATA II, SATA connectivity
  • Supports RAID Levels 0, 1, 4, 5, 6, 10, 40, 50, 60 and DVRAID, an advanced RAID level for digital video environments
  • RAID 40, 50, 60 require ATTO Express Power Center software
  • Advanced Data Streaming (ADS) Technology
  • Cache Assure Technology
  • Drive Assure Technology
  • Data Recovery Mode for additional data protection
  • Supports up to 256 end devices
  • Windows, Linux and Mac OS X driver support
  • 512MB memory
  • Easy-to-use GUI-based configuration utility
  • Thunderbolt-aware driver for Mac OS X 10.6.8 & above and Windows 7 & 8

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • 8 external ports in a low-profile form factor
  • X8 PCIe 2.0 host connection
  • 9.6GB/s throughput in full-duplex mode
  • SAS 2.0, SAS, SATA II, SATA connectivity
  • Supports RAID Levels 0, 1, 4, 5, 6, 10, 40, 50, 60 & DVRAID, an advanced RAID level for digital video environments
  • RAID 40, 50, 60 require ATTO Express Power Center software
