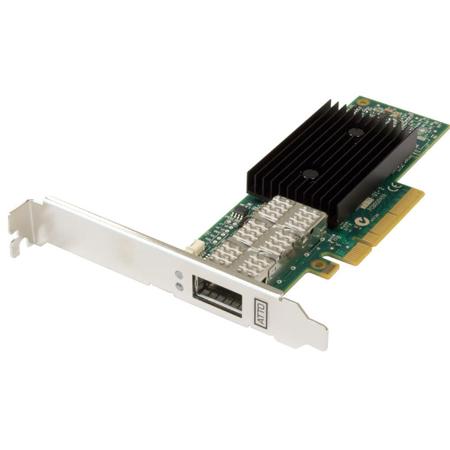

ATTO Technology FastFrame NQ41 QSFP+ Optical Single Port Network Adapter
See all ATTO Technology items

ATTO Technology FastFrame NQ41 QSFP+ Optical Single Port 40GbE PCIe 3.0 Network Adapter, Low Profile

SKU: AYFFRMNQ41

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

ATTO Technology FastFrame NQ41 Specifications

  • Ports

    Single

  • Connector

    QSFP+

  • Form Factor

    Low Profile

  • Max Transfer Rate

    5Gb/s

  • Media Type Supported

    Optical Fiber

  • Management Tools

    Easy system monitoring with Simple Network
    Management Protocol (SNMP) and Remote
    Network Monitoring (RMON) Statistic Counters

  • External Connectivity

    QSFP+
    2 LED indicators per port

  • Network Standards

    IEEE 802.3ba (40 Gigabit Ethernet)
    IEEE 802.3az (Energy Efficient Ethernet)
    IEEE 802.1p (Priority Encoding)
    IEEE 802.1q (VLAN tagging)
    IEEE 802.3ad (Link aggregation)
    IEEE 802.1qbb (Priority flow control)
    IEEE 802.1qaz (Enhanced Transmission)
    IEEE 8023.AD (Load-balancing, failover)
    802.1 Qaz: Enhanced Transmission

  • Protocol Support

    MPI, Platform MPI
    TCP/UDP
    iSER, NFS RDMA
    SMB RDMA
    Support for MSI and MSI-X

  • Host Bus

    x8 mechanical and electrical PCIExpress 3.0 interconnect

  • Driver Support

    Windows Server 2012, Windows 8.1
    Latest kernels of RHEL, SLES
    OS X (Upcoming)

  • Operating Temperature

    Temperature: 0 to 55 deg. C / 32 to 131 deg. F
    Airflow required: 100 lf/m
    Humidity: 5-95% non-condensing

  • Storage Temperature

    Temperature: -40 to 70 deg. C / -40 to 158 deg. F
    Humidity: 5-95% non-condensing

  • Agency Approvals

    FCC Part 15.107(b), Class B
    FCC Part 15.109(g), Class B
    EN55022: 2006, Class B
    EN55022: 2006 + A1: 2007, CISPR22, Class B
    EN55024: 1998 + A1: 2001 & A2: 2003

  • Compliance

    EN60950-1: 2001, IEC 60950-1: 2001
    EN60825-1: 2007, IEC 60825-1: 2007
    EN60825-2: 2004, IEC 60825-2: 2004
    RoHS

About ATTO Technology FastFrame NQ41

The ATTO FastFrame single-port NQ41 Optical Ethernet Adapter draws less power than competing solutions while providing faster throughput, meaning users can transfer more data at a lesser cost than the competition, enhancing the Total Cost of Ownership of the ATTO 40GbE solution. NQ41 includes QSFP. In addition to broad support for Windows and Linux server and desktop operating systems, ATTO is a leader in high performance I/O connectivity for Mac OS X environments (Mac OS X Driver available Q2 2016).

ATTO's comprehensive line of FastFrame products includes single port 40GbE models suitable for a wide variety of high-performance applications and provides the high-quality and high-performance experience ATTO customers are accustomed to.

• 10/40GbE support
• Energy Efficient Ethernet
• Priority-based flow control
• RDMA over converged Ethernet
• TCP/UDP/IP stateless offload
• Remote boot over Ethernet, iSCSI
• TCP/UDP, iSER, NFS RDMA, SMB RDMA support
• Jumbo frame support
• 6us latency TCP <1us RoCE
• 3 year standard product warranty
• RoHS compliant
• Includes QSFP

40GbE Interface
• 1us MPI ping latency via RoCE
• Up to 40Gbps transfer rate with RoCE
• CPU offload of transport operations
• Guaranteed bandwidth and low-latency services
• Energy efficient Ethernet

Offloads (reduce CPU Overhead)
• RDMA over Converged Ethernet
• TCP/UDP/IP stateless offloads

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • ATTO Technology FastFrame NQ41 QSFP+ Optical Single Port 40GbE PCIe 3.0 Network Adapter
  • FastFrame NQ41 QSFP+ Optical Interface
  • QSFP+ Transceiver
  • ATTO Technology 3 Year Warranty
