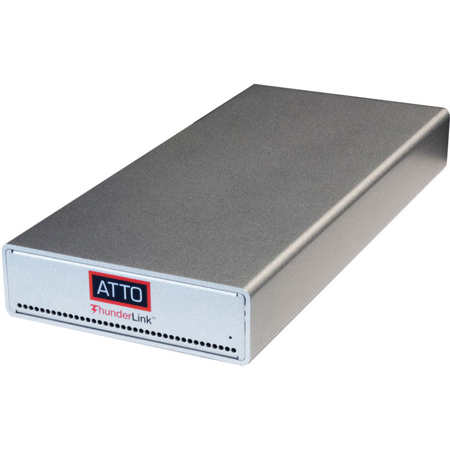

ATTO Technology ThunderLink FC 3322 2-Port 40Gb/s Thunderbolt 3 to 2-Port 32Gb/s Fibre Channel Adapter with 2x SFP+ LC Optical Modules, Desktop

The ATTO ThunderLink FC 3322 acts as an external Thunderbolt 3 to Fibre Channel adapter, connecting Thunderbolt enabled workbooks and mobile workstations to the latest 32Gb/s Fibre Channel networks and storage devices. With dual channel configurations, the 32Gb/s Fibre Channel ThunderLink is an ideal solution providing support for failover and load balancing through ATTO's exclusive MultiPath Director. With the combined power of Thunderbolt 3 and ATTO's time-tested history with Fibre Channel users can achieve the highest I/O and data throughput for advanced video and access to IT applications.

• Able to achieve maximum line rate of Thunderbolt 3
• Two optical SFP+ LC modules included
• US model: includes 110V power cord
• Dual port 40Gb/s Thunderbolt 3 with DisplayPort and device daisy-chain support
• Exclusive Advanced Data Streaming (ADS) Technology
• Auto negotiation to 32Gb, 16Gb, 8Gb devices
• Supports Windows 10, 8.1, 7 (Planned support for Mac platforms)
• ATTO ConfigTool, a Graphical User Interface, for customized performance settings
• 3-year standard product warranty
• RoHS Compliant
• Kensington Security Slot for additional security via Kensington Lock

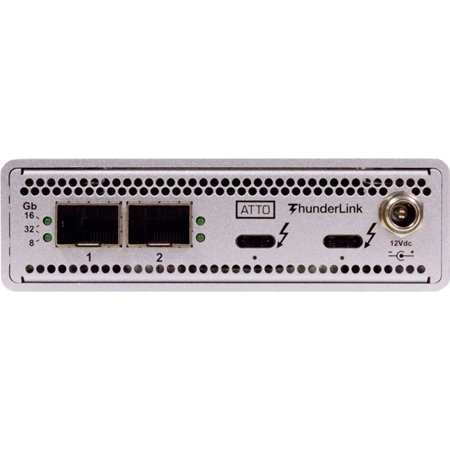

• Dual 32Gb Fibre Channel ports
• Supports 4K video file transfer and display simultaneously with dual 40Gb/s Thunderbolt 3
• Backwards compatible with 20Gb/s and 10Gb/s Thunderbolt devices via legacy adapter
• Complete SAN connectivity when combined with ATTO FibreConnect Fibre Channel switches
• MultiPath Director failover and load balancing
• Supports point-to-point and direct fabric/switch attach
• ANSI Fibre Channel: FC-FS, FCP
• Flash ROM for easy field upgrades
• FC Class 3 Support
• Buffer Credits: 80
• Supports FDMI and WMI
• Supports NPIV and Virtual Fabric
• Adaptive load balancing

ATTO's Thunderbolt 3 to 32 Gigabit Fibre Channel Devices provide maximum throughput for high bandwidth network connectivity for demanding IT and media and entertainment applications. All ATTO Thunderbolt product utilize Advanced Data Streaming (ADS) Technology which maximizes CPU processes to deliver smooth and reliable data transfers and the highest consistent performance as well as our easy to use ConfigTool, an intuitive GUI, which enables management, monitoring and configuration.

Industry Proven Technology
ATTO has over 25 years of experience developing first-to-market high performance and reliable storage connectivity solutions for customers. ATTO ThunderLink Fibre Channel products now provide creative professionals using Thunderbolt-enabled hosts, cost effective access to storage not previously available using FireWire or USB. The integrated family of ThunderLink products boasts an extensive list of customer design wins and certifications with respected industry partners.

Flexible Connectivity Solutions
With dual channel configuration and support for load balancing and failover, the 32Gb/s Fibre Channel Devices are an ideal solution for users looking to achieve the highest I/O and data throughput for advanced video and access to IT applications. ThunderLink 32Gb/s Fibre Channel Devices can support both local and storage area networks for Windows 7 and later platforms, providing a single connectivity solution for customers.

Performance Engineered
Fibre Channel Devices are designed to provide fast, redundant and highly available connectivity to Fibre Channel storage and are engineered to manage latency for real time applications. ATTO's exclusive Advanced Data Streaming (ADSTM) technology provides controlled acceleration of data to deliver the highest consistent performance and reliable data transfers for video editing, digital audio, video on demand or database applications. ATTO pays close attention to detail in board design and signal integrity to minimize transmission errors and data corruption. Specialized Fibre Channel drivers with support for multipathing make ATTO the premier choice for high-performance Fibre Channel SAN Connectivity.

Advanced Management Tools
ATTO's easy-to-use ConfigTool features an intuitive GUI that simplifies the installation, management and monitoring of the Device. With advanced troubleshooting and performance tuning capabilities, ConfigTool provides users with sophisticated diagnostics and the flexibility to control settings for specific applications.

Applications
ATTO ThunderLink Fibre Channel Devices deliver high-performance and reliable connectivity solutions for the most demanding storage environments, including digital content creation, tape streaming and backup, rich content delivery, server clustering and complex databases. ATTO ThunderLink FC 3322 products enable users to achieve the ultimate in I/O performance for real-time and transactional applications.
