ATTO Technology ThunderLink SH 2068 2-Port 20Gb/s Thunderbolt 2 to 8-Port 6Gb/s SAS/SATA Desklink Device

SKU: AYTLSH2068D

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

ATTO Technology ThunderLink SH 2068 Specifications

  • Input Connectors

    2x 20 Gb/s Thunderbolt 2

  • Form Factor

    Desktop

  • Connector Type

    2x SFF-8088

  • Maximum Transfer Rate

    1375 MB/s

  • Ports

    2x 6 Gb/s SAS/SATA

  • Key Functions

    SAS 2.0, SAS, SATA, and SATA II support
    Auto Negotiation between 6 Gb/s, 3 Gb/s and 1.5 Gb/s SAS/SATA devices
    Supports SSP, SMP, STP protocols
    SES, SNMP, and S.M.A.R.T. support
    Flash ROM for easy field updates

  • Management Tools

    ConfigTool (with GUI) management and configuration utility Command line interface for advanced functionality

  • Operating System Support

    Mac OS X 10.9 or later and Windows 7/8.1

  • Compliance

    FCC Part 15, Subpart B, Class B
    EN55022/EN55024, Class B
    EN60950-1
    EU RoHS compliant (2011/65/EC)

  • Power Supply

    100 to 240 VAC, 50 to 60 Hz, 0.5 A maximum
    12 VDC

  • Operating Temperature

    Temperature: 32 to 104 deg. F / 0 to 40 deg. C
    Humidity: 10 to 90% non-condensing

  • Storage Temperature

    Temperature: -40 to 158 deg. F / -40 to 70 deg. CHumidity: 5 to 95% non-condensing

  • Dimensions (D x W x H)

    8.66 x 4.07 x 1.20" / 219.96 x 103.38 x 30.48mm

About ATTO Technology ThunderLink SH 2068

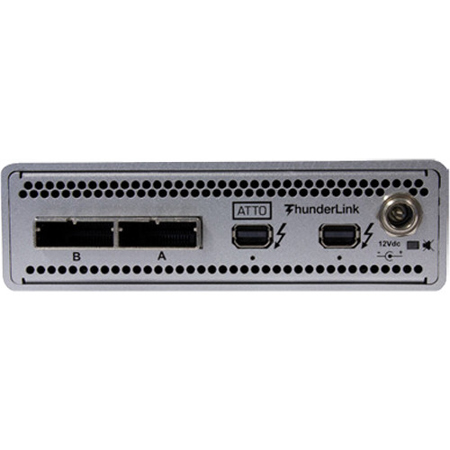

The ATTO ThunderLink SH 2068 acts as an external Thunderbolt to SAS/SATA adapter, connecting Thunderbolt enabled all-in-one systems and laptops to 6Gb/s SAS/SATA storage devices. With up to 1375 MB/s of SAS throughput, 6Gb/s SAS Desklink devices are designed to provide flexible connectivity to SAS/SATA storage and are engineered to manage latency for real-time environments. Product is certified for Mac and Windows based products.

ATTO has over 25 years of experience developing high performance and reliable storage connectivity solutions. ATTO ThunderLink SAS/SATA products provide creative professionals using Thunderbolt-enabled hosts, cost effective access to SAS/SATA desklink storage not previously available using FireWire or USB. The integrated family of ThunderLink products boasts an extensive list of customer design wins and certifications with respected industry partners. This product is Mac and Windows platform certified.

All ATTO Thunderbolt product utilize Advanced Data Streaming (ADS) Technology which maximizes CPU processes to deliver smooth and reliable data transfers and the highest consistent performance as well as their easy to use ConfigTool, an intuitive GUI, which enables management, monitoring and configuration.

ATTO Technology ThunderLink SH 2068 Features

  • Up to 1375MB/s maximum throughput
  • Dual 20Gb Thunderbolt with Display Port and device daisy-chain support
  • Includes 110V power cord
  • Thunderbolt line speed performance
  • SAS 2.0, SAS, SATA and SATA II support
  • Supports up to 128 drives
  • Thunderbolt certified for Mac and PC
  • Supports Mac OS X 10.9 or greater, and Windows 10, 8.1, 8, 7 or greater
  • Exclusive Advanced Data Streaming (ADS) Technology
  • ATTO Config Tool, a Graphical User Interface, for customized performance settings
  • Proven interoperability with support for leading storage hardware & software vendors
  • 3-year standard product warranty
  • RoHS Compliant

Key Features

  • Dual 20Gb Thunderbolt with Display Port and device daisy-chain support
  • Includes 110V power cord
  • SAS 2.0, SAS, SATA and SATA II support
  • Supports Mac OS X 10.9 or greater, and Windows 10, 8.1, 8, 7 or greater
  • Supports up to 128 drives
  • Thunderbolt certified for Mac and PC

What's in the box:

  • ATTO Technology ThunderLink SH 2068 2-Port 20Gb/s Thunderbolt 2 to 8-Port 6Gb/s SAS/SATA Desklink De
  • 110V Power Cord
  • ATTO Technology 3 Year Warranty
