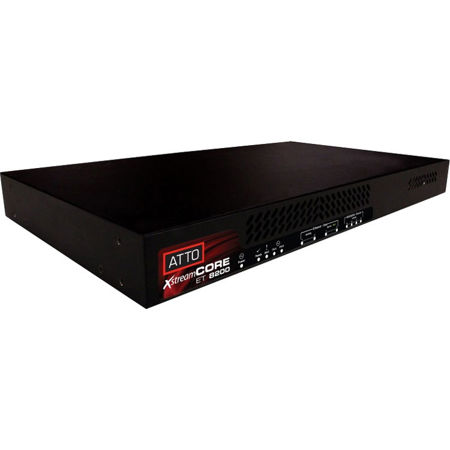

ATTO Technology XstreamCORE ET 8200 40Gb/s Ethernet 2-Port to SAS Accelerated Storage Controller

SKU: AYXCET820002 MFR: XCET-8200-002
Earn VIP Reward Points

Key Features

  • Boost your storage network with the ATTO XstreamCORE, ensuring reliable data security.
  • Experience fast data transfer speeds using 40Gb/s Ethernet connectivity for peak performance.
  • Simplify your setup with this accelerated storage controller, designed for easy integration.
  • Ensure seamless operation with a controller built for high performance and broad compatibility.
  • Optimize your data center with this ATTO controller, known for its reliable brand reputation.
  • Enhance your server capabilities with this cost-effective solution, balancing price point and power.
See More Product Details
Temporarily On Backorder?Expected Availability: 11/2025Request assistance or get notified
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

ATTO Technology XstreamCORE ET 8200 Specifications

  • Ethernet Connections

    Two 40Gb optical Ethernet connectors
    Supports iSCSI Extensions for RDMA (iSER)
    Supports ATTO hardware accelerated iSCSI
    DHCP, IPv4
    Auto negotiates to 40Gb/10Gb

  • Ethernet Specifications

    IEEE 802.3ba, 802.3ae, 8023az, 802.3ap, 802.ad, 802.1Q, 802.1p, 802.1Qau, 802.1Qaz, 802.1Qbb, 802.1Qbq

  • SAS Connections

    Four 12Gb x4 mini-SAS HD connectors
    Auto negotiates to 12Gb/6Gb/3Gb
    Supports SAS and SATA devices

  • SAS Specifications

    SAS-1.1, SAS-2, SAS-3

  • Controller Operation (Expected)

    Temperature S to 40 Degree at 10,000 feet
    Humidity 10 to 90% non-condensing

  • Controller Storage

    Temperature -40 Degree to 70 Degree C
    Humidity 5 to 95% non-condensing

  • Power and Airflow

    Input 100-240 VAC, 1.0A 50-60 Hz
    11 CFM (Ambient Air not to exceed 40 Degree C)
    Front to rear cooling

  • Safety

    60950, BSMI, cTUVus

  • Electromagnetic Compatibility (EMC)

    FCC Part 15 Class A, CE
    RoHS Compliant 2011 /65/EU
    Battery-free design

  • Dimensions

    1.74 x 9.9 x 17.3" (44.2 x 251.46 x 439.4mm)

  • Weight

    9.7 lb (4.4kg)

About ATTO Technology XstreamCORE ET 8200

After extensive research and development, ATTO presents the XstreamCORE ET 8200, a high-performance, advanced Ethernet 2-Port to SAS Accelerated Storage Controller. This efficient and reliable device is designed to add shared storage benefits to SAS storage, but with the speed of direct attached storage.

The XstreamCORE ET 8200 is optimized for high performance, featuring multiple hardware acceleration engines. It provides industry-leading performance to up to 64 servers, adding less than 2 microseconds of latency. This makes it an ideal solution for high-speed data transfer and low latency requirements.

This durable storage controller supports a wide range of storage devices, including SAS and SATA drives, and is compatible with various operating systems such as Windows, Linux, and Mac OS. It achieves up to 1.1M 4K IOPS and 6.0GB/s throughput per controller, with only 2 microseconds of added latency.

The XstreamCORE ET 8200 is equipped with Extended Copy (LID1) data mover commands, offloading up to 5.2GB/s of data from CPU, memory, networks, and storage fabrics. This leaves more resources for VMs and applications running on the host.

With the capacity to build solutions with up to 960 SAS SSD/HDD devices behind a pair of controllers, the XstreamCORE ET 8200 allows better management, monitoring, and utilization of storage. It also features ATTO xCORE data acceleration technology, which accelerates performance-critical commands and all reads/writes in hardware, providing end-to-end data protection.

The ATTO eCORE Offload Processor for Management and Storage Services provides command processing for management services, storage services, and integration with third-party IP. It also offers common services such as multi-initiator access, data mover, reservations, and vendor-specific commands.

The XstreamCORE ET 8200 is a modular building block that allows SysAdmins to reduce resource load while decoupling storage from server resources. It keeps overall storage solutions flexible without locking users into proprietary hardware implementations.

For OEM customization, hardware configuration options allow for a unique board ID to define initialization and characteristics of the OEM product. The XstreamCORE ET 8200 also supports a range of management tools, including ATTO XstreamVIEW system manager GUI, SNIA Swordfish, DTMF Redfish, and local diagnostics supported via Command Line Interface (CLI) via RS-232 and Ethernet.

Incorporating advanced ASIC, firmware, and interface technologies, the XstreamCORE ET 8200 enables users to fine-tune ATTO controllers for specific applications. Its embedded operating system provides an integrated, multitasking environment that self-optimizes to changing I/O patterns for maximum performance.

In conclusion, the XstreamCORE ET 8200 is a versatile, high-performance storage controller that offers a range of features and services for storage, making it an ideal choice for users who require fast and reliable data access.

ATTO Technology XstreamCORE ET 8200 Features

  • Up to 6.0GB/s sustained transfer rate
  • Up to 1.1M 4K IOPS per controller
  • 2 microsecond end-to-end latency
  • Supports RAID arrays (Multiple LUNs behind a target)
  • Supports up to 240 drives (extendable to 960 for qualified customers)
  • Supports SAS and SATA flash solid state disk drives (SSD) (not supported on ET 8200T)
  • Supports SAS and SATA hard disk drives (not supported on ET 8200T)
  • Supports SAS Tape Drives
  • Supports SAS/SATA Optical Drives (not supported on ET 8200T)
  • Multi-initiator access for all attached storage
  • Support for Extended Copy (LID1) to offload CPU, memory and storage fabrics
  • Host LUN Mapping initiator to LUN mapping
  • Drive Map Director patented SAS device mapping
  • XstreamVIEW Storage Manager for easy remote configuration, management and diagnostic capabilities
  • Built in temperature monitoring
  • Dual hot-swappable power supplies
  • SNMP and SNMP MIB support
  • Top-of-rack controller
  • Two 40Gb/s Ethernet ports
  • Supports iSER (iSCSI Extensions over RDMA)
  • Support ATTO's Hardware Accelerated iSCSI
  • Support for DMTF Redfish and SNIA Swordfish management
  • Auto negotiates to 40Gb, 10Gb or 1Gb Ethernet
  • Includes two optical 40Gb/s QSFP+ modules
  • Four x4 12Gb/s Mini-SAS HD connectors (16 phys)
  • Supports SAS processor devices
  • Statistic Reporting for SAS and Ethernet ports
  • RoHS Compliant
  • Advanced integration available for OEM applications

Warranty Information

This product has a limited warranty of 24 months for parts and 36 months for labor.

Key Features

  • Boost your storage network with the ATTO XstreamCORE, ensuring reliable data security.
  • Experience fast data transfer speeds using 40Gb/s Ethernet connectivity for peak performance.
  • Simplify your setup with this accelerated storage controller, designed for easy integration.
  • Ensure seamless operation with a controller built for high performance and broad compatibility.
  • Optimize your data center with this ATTO controller, known for its reliable brand reputation.
  • Enhance your server capabilities with this cost-effective solution, balancing price point and power.

What's in the box:

  • XstreamCORE ET 8200
  • 2x Optical 40Gb/s QSFP+ Modules
  • Atto Technology 2 Year Limited Warranty
