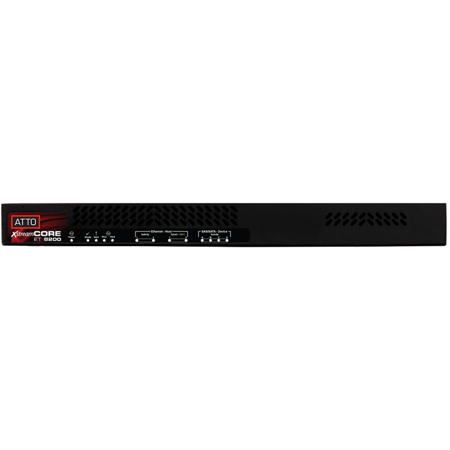

ATTO Technology Xstream CORE ET 8200 40Gb/s Ethernet to SAS Accelerated Storage Controller with Tape Support

SKU: AYXCET820TP2 MFR: XCET-8200-TP2
Earn VIP Reward Points

Key Features

  • Accelerate your workflow with this 40Gb/s Ethernet to SAS storage controller.
  • Ensure data security with advanced features on this reliable ATTO controller.
  • Experience fast data transfer with mini-SAS HD connectors and 40GbE speeds.
  • Simplify setup with auto-negotiation for 12Gb/6Gb/3Gb SAS and SATA devices.
  • Trust in the ATTO brand for high-performance storage and seamless connectivity.
  • Optimize server performance using iSCSI extensions for RDMA (iSER) technology.
See More Product Details
Temporarily On Backorder?Expected Availability: 10/2025Request assistance or get notified
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

ATTO Technology CORE ET 8200 Specifications

  • Ethernet Connections

    Two 40Gb optical Ethernet connectors
    Supports iSCSI Extensions for RDMA (iSER)
    Supports ATTO hardware accelerated iSCSI
    DHCP, IPv4, IPv6
    Auto negotiates to 40Gb/10Gb

  • Ethernet Specifications

    IEEE 802.3ba, 802.3ae, 8023az, 802.3ap, 802.ad
    802.1Q, 802.1p, 802.1Qau, 802.1Qaz, 802.1Qbb 1p, 802.1Qau, 802.1Qaz, 802.1Qbb,802.1Qbq

  • SAS Connections

    Four 12Gb x4 mini-SAS HD connectors
    Auto negotiates to 12Gb/6Gb/3Gb
    Supports SAS and SATA devices

  • SAS Specifications

    SAS-1.1, SAS-2, SAS-3

  • Controller Operation (expected)

    Temperature S to 40 Degree at 10,000 feet
    Humidity 10 to 90% non-condensing
    Controller Storage
    Temperature -40 Degree to 70 Degree C
    Humidity 5 to 95% non-condensing

  • Power and Airflow

    Input 100-240 VAC, 1.0A 50-60 Hz
    11 CFM (Ambient Air not to exceed 40 Degree C)
    Front to rear cooling

  • Safety

    60950, BSMI, cTUVus

  • Electromagnetic Compatibility (EMC)

    FCC Part 15 Class A, CE
    RoHS Compliant 2011 /65/EU
    Battery-free design

  • Dimensions (H x L x W)

    1.73 x 9.90 x 17.31" (4.40 x 25.1 x 43.96cm)

  • Weight

    9.7 lbs (4.3kg)

About ATTO Technology CORE ET 8200

Find the perfect balance of performance and efficiency with the advanced Xstream CORE ET 8200 40Gb/s Ethernet to SAS Accelerated Storage Controller with Tape Support. This high-performance device is engineered to deliver up to 1.1M 4K IOPS and 6GB/s throughput per bridge, adding only 2 microseconds of latency, making it an ideal solution for high-demand data centers and computing environments.

The Xstream CORE ET 8200 is equipped with Extended Copy (LID1) data mover commands, capable of offloading up to 5.2GB/s of data from CPU, memory, networks, and storage fabrics. This leaves more resources available for VMs and applications running on the host, enhancing overall system performance.

This reliable storage controller can support up to 960 SAS SSD/HDD devices behind a pair of bridges, allowing you to better manage, monitor, and utilize your storage with the current and future features built into XstreamCORE. The ATTO XstreamCORE intelligent bridges can be tuned for various applications that require common features and services for storage.

The Xstream CORE ET 8200 is more than just a storage controller. It acts as an external adapter, adding a common set of services and features to SSD- and HDD-based JBOD, JBOF, or RAID storage and SAS tape devices. It then remotely shares this storage over long or short distances using high-speed Ethernet technology.

This durable device is engineered to provide deterministic latency, separating data traffic from services to maintain a consistent level of latency and performance. The ATTO xCORE acceleration processor handles the majority of I/O operations in a hardware processing pipeline without software intervention, ensuring optimal performance.

The Xstream CORE ET 8200 also features ATTO xCORE data acceleration technology with multiple parallel I/0 acceleration engines, hardware buffer allocation management, and real-time performance and latency analytics. This ensures performance-critical commands and all reads/writes are accelerated in Hardware, eliminating bottlenecks and maximizing large block transfer sizes from Ethernet to SAS/SATA devices for optimal streaming performance.

With the ATTO eCORE offload processor for management and storage services, you get command processing for management services, storage services, and integration with third-party IP. This efficient tool virtualizes services and features, providing common services such as multi-initiator access, data mover, reservations, and vendor-specific commands.

The Xstream CORE ET 8200 is customizable for OEMs, with hardware configuration options that allow for unique board ID to define initialization and characteristics of the OEM product. It incorporates advanced ASIC, firmware, and interface technologies that enable users to fine-tune ATTO controllers for specific applications.

Technical features include two 40 GbE ports connected to four X4 12Gb mini-SAS connectors, integration with up to 960 devices per controller, and the use of iSER (iSCSI extensions for RDMA) for deterministic latency over Ethernet. ATTO's hardware accelerated iSCS maximizes interoperability, and ATTO SpeedWrite technology improves SAS tape write performance up to 20%.

In conclusion, the Xstream CORE ET 8200 40Gb/s Ethernet to SAS Accelerated Storage Controller with Tape Support offers a versatile, high-performance solution for your data storage needs. It's not just a storage controller, it's a comprehensive solution for efficient, reliable, and high-speed data management.

ATTO Technology CORE ET 8200 Features

  • High-performance Ethernet to SAS Storage Controller with Tape Support for efficient data transfer and storage
  • Advanced ATTO xCORE acceleration processor for optimal I/O operations and real-time performance analytics
  • Supports Extended Copy (LID1) data mover commands for offloading data from CPU, memory, networks, and storage fabrics
  • Engineered for deterministic latency, maintaining consistent performance levels
  • Compatible with up to 960 SAS SSD/HDD devices per controller for versatile storage solutions
  • Features ATTO eCORE offload processor for efficient management of storage services and third-party IP integration

Warranty Information

This product has a limited warranty of 24 months for parts and 36 months for labor.

Key Features

  • Accelerate your workflow with this 40Gb/s Ethernet to SAS storage controller.
  • Ensure data security with advanced features on this reliable ATTO controller.
  • Experience fast data transfer with mini-SAS HD connectors and 40GbE speeds.
  • Simplify setup with auto-negotiation for 12Gb/6Gb/3Gb SAS and SATA devices.
  • Trust in the ATTO brand for high-performance storage and seamless connectivity.
  • Optimize server performance using iSCSI extensions for RDMA (iSER) technology.

What's in the box:

  • Xstream CORE ET 8200 40Gb/s Ethernet to SAS Accelerated Storage Controller with Tape Support
  • 2x Optical 40Gb/s QSFP+ Modules
  • ATTO Technology 2 Year Limited Warranty
