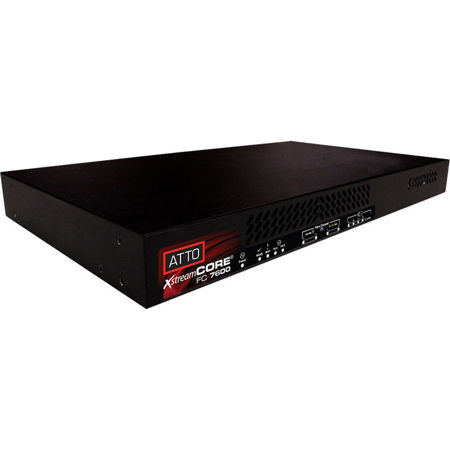

ATTO Technology XstreamCORE FC 7600 2-Port 32Gb/s Fibre Ch 1U Rackmount Storage Controller with 2x Optical 32Gb/s LC SFP+ Modules, Dual Hot-Swappable Power Supplies

SKU: AYXCFC76002 MFR: XCFC-7600-002
Earn VIP Reward Points

Key Features

  • Experience rapid data transfer with dual 32Gb/s Fibre Channel ports for seamless connectivity.
  • Maximize network management with ATTO's XstreamVIEW, offering robust monitoring and control features.
  • Ensure top-tier security features with advanced access controls, protecting your valuable data assets.
  • Achieve reliable performance with hot-swappable power supplies, minimizing downtime and maximizing uptime.
  • Boost your workflow with 1,200,000 4K IOPS, perfect for demanding applications needing speed.
  • Utilize Power over Ethernet (PoE) to simplify installations and reduce cable clutter in your setup.
See More Product Details
Temporarily On Backorder?Expected Availability: 09/2025Request assistance or get notified
Free Shipping

See Options

Qty
1

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

ATTO Technology XstreamCORE FC 7600 Specifications

  • Input Connectors

    2x 32GB Fiber channel (SFP+)

  • Output Connectors

    4x 12GB mini-SAS HD (x4)

  • Architecture Latency

    <4 ms

  • Maximum 4K IOPS

    1200000

  • Maximum Throughput

    12GB/s

  • Initiators

    Up to 64 supported

  • SAS/SATA HDDs Supported

    Up to 960 per controller

  • Form Factor

    1U rackmount

  • Power Supplies

    2

  • Power Supply type

    Hot Swap

  • Fibre Channel Connections

    Two 32Gb SFP+ Fibre Channel connectors (7600)
    Optical SFP+ modules included
    Full support for FC-AL, FC-AL2, FC-FLA, FC-FS, FCP-3, FC-PLDA
    Fibre Channel retry logic for FLOGI, PLOGI

  • SAS Connections

    Four 12Gb x4 mini-SAS HD connectors
    Auto negotiates to 12Gb/6Gb/3Gb
    Supports SAS and SATA devicess

  • Management Tools

    Web based ATTO XstreamVIEW system manager
    Local diagnostics supported via Command Line Interface (CLI) via RS-232 and Ethernet
    Monitor SCSI Enclosure Services (SES) information provided by attached enclosures
    Persistent event log gathers at least 40,000 hardware, software and network events
    Dual firmware image support for protection from firmware update failures
    Performance and temperature monitoring

  • Management Tools (Cont.)

    ATTO Data Mover copy manager and performance metrics
    Identify LUN by flashing device LEDs
    Core dump error analysis
    ATTO Drive Map Director and host group mapping
    SNMP, SNTP, Telnet, FTP, iCMP

  • Controller Operation

    Temperature S to 40 Degree at 10,000 feet
    Humidity 10 to 90% non-condensing

  • Controller Storage

    Temperature: -40 to 158 Degree F (-40 to 70 Degree C)
    Humidity 5 to 95% non-condensing

  • Power and Airflow

    input 85-264 VAC, 0.5A, 47-63 Hz
    11 CFM (Ambient Air not to exceed 40 Degree C)
    Front to rear cooling

  • Dimensions (H x L x W)

    1.73 x 9.90 x 17.3" (43.94 x 251.46 x 439.42mm)

  • Weight

    9.7 lb (4.40kg)

About ATTO Technology XstreamCORE FC 7600

Under the hood of the ATTO XstreamCORE FC 7600 lies a sophisticated storage controller, designed to seamlessly integrate enterprise Fibre Channel connectivity into SAS JBOD, JBOF, and RAID storage environments. This high-performance 1U rackmount controller is equipped with two optical 32Gb/s LC SFP+ modules, ensuring rapid data transfer rates and substantial storage capacity expansion.

Crafted with an open and modular design, the XstreamCORE FC 7600 boasts an advanced architecture that introduces minimal latency - less than four microseconds - into the storage network. This innovative approach ensures data flows more efficiently, enhancing the overall performance of shared storage networks.

The controller's xCORE Hardware Acceleration and Data Mover Technology are at the forefront of its capabilities. The hardware acceleration engine is expertly engineered to expedite both read and write operations, achieving up to 2.4M 4K IOPS or 12GB/s throughput per controller pair. This technology not only accelerates data transfer but also maintains a consistent sub-four-microsecond latency, optimizing transaction completion rates.

Furthermore, the XstreamCORE FC 7600 features a hardware data mover that offloads processing from server CPUs, freeing up resources for more critical tasks. This allows for more efficient application usage and enhances server virtualization. The open platform nature of the controller means it can be paired with any attached storage, including all-flash SSDs, high-capacity HDDs, or a hybrid mix, providing a flexible and scalable solution for data centers.

The ATTO Drive Map Director technology simplifies storage management by automatically mapping SAS drives to Fibre Channel LUNs, maintaining a static and predictable configuration. This patented technology ensures that physical storage changes, such as maintenance or failures, do not require remapping, saving valuable administrative time.

Security is also a priority with the XstreamCORE FC 7600. Host group mapping allows administrators to control access to storage, ensuring that only authorized clients and servers can connect. This feature also enables the assignment of unique boot disks to physical server hardware.

Designed with data center efficiency in mind, the XstreamCORE FC 7600 reduces maintenance costs and complies with international regulations. Its energy-efficient operation and front-to-rear cooling flow align with data center cooling systems, further minimizing operational expenses.

The ATTO XstreamVIEW system manager provides a comprehensive remote management interface for configuration, monitoring, and management. Advanced tuning, troubleshooting features, and robust logging capabilities ensure that administrators have the tools they need for optimal performance and diagnostics.

In summary, the ATTO XstreamCORE FC 7600 storage controller is an advanced, reliable, and durable solution for data centers seeking to enhance their storage infrastructure with high-speed data transfer, innovative technology, and robust management features.

ATTO Technology XstreamCORE FC 7600 Features

  • xCORE Acceleration Technology to eliminate bottlenecks
  • eCORE Control Engine adds common, open storage services
  • XstreamVIEW remote management user interface for configuration, monitoring and management of ATTO's storage controller products
  • Up to 6400MB/s sustained transfer rate
  • Up to 1.2M 4K IOPS per controller
  • 4 microsecond end-to-end latency
  • Host LUN Mapping initiator to LUN mapping
  • Drive Map Director patented SAS device mapping
  • Supports up to 240 drives (extendable to 960 for qualified customers)
  • Supports SAS and SATA flash solid state disk drives (SSD)
  • Supports SAS and SATA hard disk drives
  • Supports SAS Tape Drives
  • Supports SAS/SATA Optical Drives
  • Supports Shingled Magnetic Recording Archive Drives (SMR)
  • Supports RAID arrays (Multiple LUNs behind a target)
  • VMware Ready with VAAI certification
  • Multi-initiator access for all attached storage
  • Support for Extended Copy (LID1) to offload CPU, memory and storage fabrics
  • Built in temperature monitoring
  • Dual hot-swappable power supplies
  • SNMP and SNMP MIB support
  • 2 year standard product warranty
  • Optional 5 year total warranty and advanced replacement available
  • Top-of-rack controller
  • No batteries
  • Two 32Gb/s Fibre Channel ports
  • Auto negotiates to 32Gb, 16Gb, or 8Gb Fibre Channel
  • Includes two optical 32Gb/s LC SFP+ modules
  • Four x4 12Gb/s Mini-SAS HD connectors (16 phys)
  • Supports SAS processor devices
  • Statistic Reporting for SAS and Fibre Channel ports
  • RoHS Compliant
  • Advanced integration available for OEM applications
  • Connects SAS/SATA storage to a 32Gb Fibre Channel SAN
  • Adds Enterprise Fibre Channel features to up to 960 SAS/SATA devices
  • Separate data and control path processing
  • ATTO xCORE Data Acceleration manages the data path and assures that all reads and writes are processed as fast as possible. xCORE is a key ATTO technology that enables sub-three microsecond added latency
  • ATTO eCORE control engine manages the control path so XstreamCORE can handle all non-data requests from the host and process them in the background while xCORE handles data transfers
  • Host mapping technology provides dedicated, secure paths to storage
  • Adds only four microseconds of latency to each read and write, up to 250X more efficient than controllers that advertise one millisecond latency
  • ATTO Data Mover technology improves storage performance for copying and moving data while reducing compute, memory and network resource utilization while allowing applications
  • Patented Drive Map Director simplifies Built in diagnostic tools to analyze data path for performance optimization
  • Available in standard 1U 19" rackmount with custom form factors available to OEM customers

Warranty Information

This product has a limited warranty of 24 months for parts and 36 months for labor.

Key Features

  • Experience rapid data transfer with dual 32Gb/s Fibre Channel ports for seamless connectivity.
  • Maximize network management with ATTO's XstreamVIEW, offering robust monitoring and control features.
  • Ensure top-tier security features with advanced access controls, protecting your valuable data assets.
  • Achieve reliable performance with hot-swappable power supplies, minimizing downtime and maximizing uptime.
  • Boost your workflow with 1,200,000 4K IOPS, perfect for demanding applications needing speed.
  • Utilize Power over Ethernet (PoE) to simplify installations and reduce cable clutter in your setup.

What's in the box:

  • XstreamCORE FC 7600 2-Port 32Gb/s Fibre Channel 1U Rackmount Storage Controller
  • 2x Optical 32Gb/s LC SFP+ Modules
  • Dual Hot-Swappable Power Supplies
  • ATTO Technology 2 Year Warranty
