Azden 330LX UHF On-Camera Plug-in and Bodypack System, Consists of 330UPR with 1 x 35BT/EX-503 and 1 x 35XT

SKU: AZ330ULX

This item is no longer available.

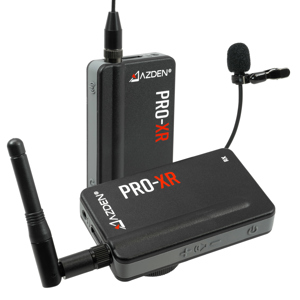

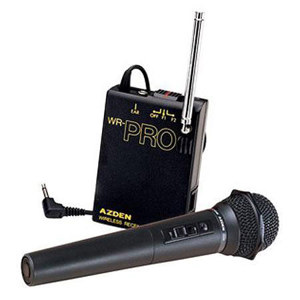

Recommended Alternatives

Overview
Compare
Accessories
Specs
Protection

Reviews about this item

Review Summary

2017-02-13T07:01:22

Rated 1 out of 5

Lavalier and body pack OK, but don't buy kit with 35HT handheld transmitter

I was excited to get use this system. It comes with a body pack and lavalier mike, wireless handheld mike and dual receiver. I purchased an extra body pack and lavalier for flexibility. The lavalier mikes work great, although occasionally each one would completely drop out, a problem that I had planned to troubleshoot (whether a wire issue or connector issue). But because the handheld microphone's performance is so poor I had to return the entire system and look for a different manufacturer (since a wireless handheld is important for me). Your results may vary, but the wireless handheld would barely produce a sound at the receiver and camera unless the mike was pressed against the lips. At 2" from the lips, it showed zero volume bars on the mike's display and produced a recorded -39dB (Canon XF305 about 15 feet away, processed by PPCC), at 1" it showed 0 to 1 volume bars and produced a recorded -21dB, and when pressed against the lips it showed 3 to 4 volume bars and produced a recorded -3dB. Azden indicated that these results were not wildly out of sync with the typical performance of the microphone. For my needs, a microphone that has to be pressed against the lips will not work. It's a shame, because I was very happy with the lavaliers.

Edwin A.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Azden 330 Specifications

  • Type of System

    Portable UHF Combo System

  • RF Carrier Frequency Range

    UHF 188 Freq. (566.125-589.875 MHz)

  • Approx. Working Range

    200 - 300'

  • Overall Frequency Response

    50 to 15kHz

  • Signal-to-Noise Ratio

    >84dB (100% Deviation)

  • # Of Channels

    188

  • Type of Receiver

    330UPR On-Camera Dual Receiver

  • Receiver: Type of Outputs

    MIC Level - Balanced
    1/8" (3.5mm) Mini-Jack -28 dBm (100% Deviation - Mic Level)

  • Receiver: Headphone Monitoring

    Yes 1/8" (3.5mm) Mini-Jack

  • Receiver: Battery Type/Approx. Life

    2x "AA" Alkaline (2 x 1.5V) - 5-6 hours runtime
    2x "AA" rechargeable Ni-MH (2 x 1.2V)

  • Receiver: Display

    LCD Digital

  • Receiver: Mounting Options

    Attached/Removable Shoe-Mount

  • Receiver: Antenna Type

    2x Pivoting Diversity High-Gain Antenna

  • Type of Transmitter

    35BT Bodypack Transmitter
    35XT Plug-in Transmitter

  • 35BT: Microphone

    EX-503 Lavalier

  • 35BT: Battery Type/Approx. Life

    2x "AA" Alkaline (2 x 1.5V) - 6-8 hours runtime
    2x "AA" rechargeable Ni-MH (2 x 1.2V)

  • 35BT: Deviation

    +/- 40kHz @ 1kHz Modulation
    MIC Input - 11dBm

  • 35BT: Mute Switch

    On/Off

  • 35BT: RF Power

    25mW

  • 35BT: Display

    LCD Digital

  • 35XT: Input Connector

    3-pin XLR

  • 35XT: Battery

    2x "AA" Alkaline (2 x 1.5V) - 6-8 hours runtime
    2x "AA" rechargeable Ni-MH (2 x 1.2V)

  • 35XT: Antenna

    Internal

  • 35XT: Maximum Input Level

    -16dBm
    Audio Adjust. Range: -65dBm to 46dBm

  • 35XT: Input Impedance

    25k Ohms

  • 35XT: Mute Switch

    On/Off

  • 35XT: RF Power

    25mW

  • 35XT: Display

    LCD Digital

  • Receiver: Dimensions (W x H x D)

    2.87 x 4.45 x 1.59" (73 x 113 x 40.5mm)

  • Receiver: Weight

    10.2oz (290g) w/batteries

  • 35BT: Dimensions (W x H x D)

    2.52 x 3.93 x 1.16" (64 x 100 x 27mm)

  • 35BT: Weight

    6oz (170g)

  • 35XT: Antenna Dimensions (W x H x L)

    1.57 x 1.57 x 4.49" (40 x 40 x 114mm)

  • 35XT: Weight

    6.35oz (180g)

  • UPC Code

    095528330692

3 Accessories for Azden 330LX UHF On-Camera Plug-in and Bodypack System, Consists of 330UPR with 1 x 35BT/EX-503 and 1 x 35XT

  • All Accessories (3)
  • Microphones (3)

About Azden 330

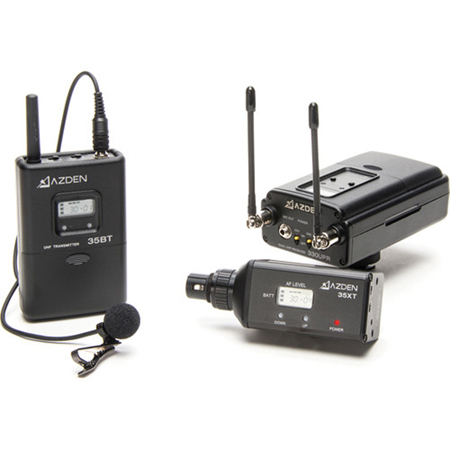

The Azden 330LX UHF On-Camera Plug-in & Bodypack System is a powerful dual-channel UHF wireless combo-microphone system for camera-mount applications. The system consists of Azden's 35BT bodypack transmitter, Ex-503 lavalier microphone, 35XT plug-in microphone transmitter and 330UPR portable dual-channel diversity receiver. The inclusion of both bodypack and plug-in transmitters, allows users to operate both microphones simultaneously.

With a feature set that includes 188 user selectable UHF frequencies, pivoting high-gain diversity antennas and LCD digital display, the 330LX is guaranteed to meet the demands of consumer and professional video applications alike. The 330UPR receiver features main and headphone monitor outputs and a removable shoe-mount adapter. Both the transmitter and receiver operate on standard AA alkaline batteries (not included).

Azden 330 Features

  • Discrete 2-channel Camera-mount UHF Receiver
  • 188 Selectable UHF Freq. (566.125-589.875 MHz)
  • New, Pivoting diversity High-Gain Antenna
  • Digital LCD Display w/Multifunction Readout
  • Mini-Jack Out w/Supplied 24" Mini-to-XLR Cable
  • Headphone Output on Receiver
  • Attached/Removable Shoe-Mount
  • Powered by 2 "AA" Batteries (not included)

Key Features

  • Discrete 2-channel Camera-mount UHF Receiver
  • 188 Selectable UHF Freq. (566.125-589.875 MHz)
  • New, Pivoting diversity High-Gain Antenna
  • Digital LCD Display w/Multifunction Readout
  • Mini-Jack Out w/Supplied 24" Mini-to-XLR Cable
  • Headphone Output on Receiver

What's in the box:

  • Azden 330UPR Dual-Channel Receiver
  • 35HT Handheld Transmitter
  • 35XT Plug-In Transmitter
  • EX-503 Lavalier Microphone
  • Mini to XLR Cable 24 "
  • 2x Pivoting High-Gain Antennas
  • Removable Shoe-Mount
  • Azden 2 Years Warranty
