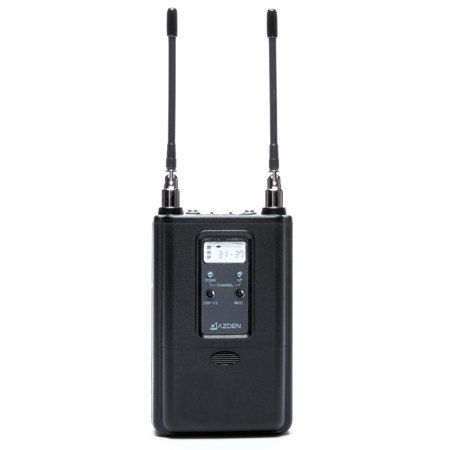

Azden 330UPR Dual-Channel UHF On-Camera Receiver with Digital Display

SKU: AZ330UPR

This item is no longer available.

Overview
Compare
Accessories
Specs
Protection

Reviews about this item

Review Summary

2017-07-21T06:56:58

Rated 4 out of 5

Good mics

Decent sound quality. Good range. Good battery life.

ACCOUNTS P.

2017-02-13T07:01:22

Rated 1 out of 5

Lavalier and body pack OK, but don't buy kit with 35HT handheld transmitter

I was excited to get use this system. It comes with a body pack and lavalier mike, wireless handheld mike and dual receiver. I purchased an extra body pack and lavalier for flexibility. The lavalier mikes work great, although occasionally each one would completely drop out, a problem that I had planned to troubleshoot (whether a wire issue or connector issue). But because the handheld microphone's performance is so poor I had to return the entire system and look for a different manufacturer (since a wireless handheld is important for me). Your results may vary, but the wireless handheld would barely produce a sound at the receiver and camera unless the mike was pressed against the lips. At 2" from the lips, it showed zero volume bars on the mike's display and produced a recorded -39dB (Canon XF305 about 15 feet away, processed by PPCC), at 1" it showed 0 to 1 volume bars and produced a recorded -21dB, and when pressed against the lips it showed 3 to 4 volume bars and produced a recorded -3dB. Azden indicated that these results were not wildly out of sync with the typical performance of the microphone. For my needs, a microphone that has to be pressed against the lips will not work. It's a shame, because I was very happy with the lavaliers.

Edwin A.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Azden 330 Specifications

  • Frequency Range

    UHF 188 Frequencies (566.125-589.875MHz)

  • Type of Reception

    FM

  • Oscillator

    PLL Synthesized

  • RF Squelch Level

    -95dBm

  • Frequency Response

    50Hz - 15kHz

  • S/N Ratio

    > 84dB (100% Deviation)

  • Audio Out

    MIC Level - Unbalanced - 3.5mm Mini-Jack
    -28 dBm (100% Deviation - Mic Level)

  • Batteries

    2 "AA" Alkaline (2 x 1.5V) - 5-6 hours runtime
    2 "AA" rechargeable Ni-MH (2 x 1.2V)

  • Dimensions (W x H x D)

    2.87 x 4.45 x 1.59" (73 x 113 x 40.5mm)

  • Weight

    10.2 oz (290g) w/batteries

  • UPC Code

    095528003251

0 Accessories for Azden 330UPR Dual-Channel UHF On-Camera Receiver with Digital Display

About Azden 330

The Azden 330UPR is a compact, dual-channel, on-camera UHF wireless receiver designed and engineered for the professional videographer. A successor to the popular 200UPR -- Azden's first camera-mounted dual-channel UHF receiver -- and the 325UPR receiver, the 330UPR has a single LCD display compared to the 325UPR's dual display. This increases battery runtime by 50% on the 330UPR. All the information that was available on the dual display is also on the new single display.

The 330UPR has pivoting high-gain antennas, stereo output, digital LCD displays with multi-function read-out and separate Power On/Off switches for each channel. It operates on just two AA batteries, comes with both dual-plug XLR and stereo mini-plug output cables and removable shoe-mount.

The Azden 330UPR UHF Wireless receiver features 188 frequencies to digitally choose from, so you'll always find a clear channel. This wireless camera-mount receiver uses new UHF frequencies (566.125-589.875MHz) to avoid interference from HDTV broadcast transmission.

The 330UPR has a unique dual-function DC jack which allows optional NiMH batteries to be recharged while in the receiver or the receiver to be powered from an optional external power supply. Twin flexible high-gain antennas provide great reception while the removable shoe-mount is perfect for mounting the receiver horizontally to the camera.

Designed by professionals - for professionals, the 330UPR will provide you with years of worry-free, high-quality performance and will work flawlessly with the Azden 35BT, 35HT and 35XT frequency-agile UHF transmitters with 188 on-board user selectable UHF frequencies.

Azden 330 Features

  • Discrete 2-channel Camera-mount UHF Receiver
  • 188 User-Selectable UHF Freq. (566.125-589.875 MHz)
  • New, Pivoting High-Gain Antenna
  • Digital LCD Display w/Multifunction Readout
  • Mini-Jack Out w/Supplied 46" Mini and 24" XLR Cables
  • Headphone Output on Receiver
  • Attached/Removable Shoe-Mount
  • Powered by 2 "AA" Batteries (not included)

Key Features

  • Discrete 2-channel Camera-mount UHF Receiver
  • New, Pivoting High-Gain Antenna
  • Digital LCD Display w/Multifunction Readout
  • Headphone Output on Receiver
  • Attached/Removable Shoe-Mount
  • Powered by 2 "AA" Batteries (not included)

What's in the box:

  • Azden 330UPR Dual-Channel UHF On-Camera Receiver
  • Mini to XLR Cable 24 "
  • 2 x Pivoting High-Gain Antennas
  • Removable Shoe-Mount
  • 1 Year Warranty
