20 Hz - 30 kHz (+0/-1.5 dB)
30 Hz - 30 kHz (+0/-2 dB)
-120 dBu (A weighted, input equivalent level)
< 0.005% at 1 kHz (at LINE position +19 dBu output)
48V (+/-1.5V)
1kHz
6 Alkaline "AA"
10.5 - 17V DC at 200mA
XLR 3-pin Female x 4 (CH1, 2, 3 & 4)
Standard:+4 dBu (electronically balanced)
Maximum: > +26 dBu
Impedance: 20kOhm
Standard: -38 dBu (electronically balanced)
Maximum: +4 dBu
Impedance: 2kOhm
Standard: -58 dBu (electronically balanced)
Maximum: -15 dBu
Impedance: 2kOhm
100Hz - 6dB/oct
Hirose 10-pin Female for Hirose Plug Part #RM15TD-10P
3.5mm (1/8") Stereo Mini-Jack
-20 dBu - +19 dBu (unbalanced)
11kOhm
XLR 3-pin Male x 2 (Output L & R)
Hirose 10-pin Female for Hirose Plug (FMX-42a only)
6.3mm (1/4") Stereo Jack
Max Output: +1 dBu (32Ohm load at 9V)
16-100O load recommended
USB mini-B connector (female)
Standard: +4 dBu (electronically balanced, 5kO load)
Maximum: +20 dBu (electronically balanced, 5kO load)
Impedance:600O
Standard: -36 dBu (electronically balanced, 5kO load)
Maximum: -20 dBu (electronically balanced, 5kO load)
Impedance: 600O
Standard: -36 dBu (electronically balanced, 2kO load)
Maximum: -20 dBu (electronically balanced, 2kO load)
Impedance: 120O
Standard Output Level: 0 VU (+4 dBu)
USB 2.0 Full Speed
Isochronous Data Format
16 / 22.05 / 32 / 44.1 / 48 kHz Compatible
8 / 16 bit Compatible
2
USB AUDIO CODEC
9 x 6.5 x 2.25" / 22.86 x 16.51 x 5.72cm (without protrusions)
2.9lbs / 1.32kg (without batteries)
095528122211

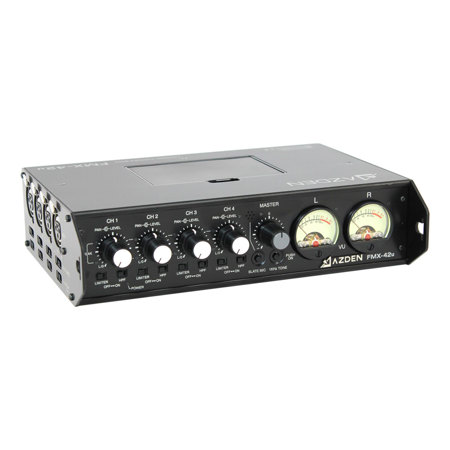

Over the years, Azden's FMX-42 portable mixer has earned a reputation as a reliable tool for audio professionals in the field. Its robust feature set, handcrafted quality, and affordability have made it a preferred choice among portable mixers in the market. Now, with the introduction of the FMX-42u, Azden has enhanced its offering by integrating a USB digital audio output for added versatility.
The USB Out on the FMX-42u is ingeniously designed to connect seamlessly with a computer, smartphone, or tablet, serving as a secondary stereo audio output. This feature enhances the mixer's flexibility, enabling you to use a mobile device or laptop as a backup digital recorder, or to utilize up to 4 XLR microphones while shooting video with a smartphone or tablet. The FMX-42u can also function as an in-studio mixer for web streaming or podcasting.
Retaining the much-loved features of its predecessor, the FMX-42u includes 4 balanced XLR line/mic inputs with individual level and pan controls, switchable 48V phantom power and limiting per channel, and professional-grade VU meters for precise level setting. It also boasts a master level control, a 1k tone generator, 2 balanced XLR outputs (line/mic switchable), a stereo mini-jack output for DV cameras, and a headphone output with level control.
The FMX-42u offers dual power options, running on either 6 internal "AA" batteries or an optional 12V DC external power supply (Azden part #BC-27H). For ease of transport and protection, a ballistic nylon carrying case is included with the mixer. This durable, high-quality, professional, portable, and versatile 4-channel portable mic/line mixer with USB digital audio output is designed to meet the diverse needs of audio professionals in live performances, recording studios, and broadcasting applications.
