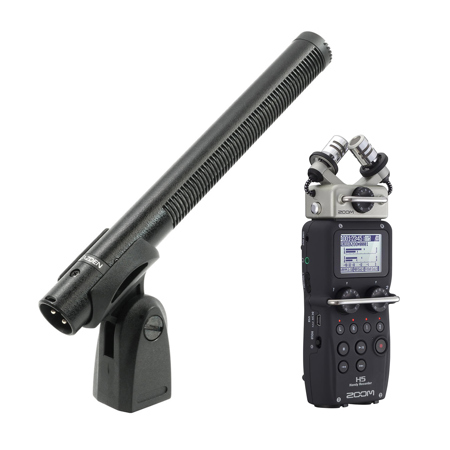

Azden SGM-3500 Supercardioid Broadcast Shotgun Microphone, Bundle with Zoom H5 Recorder

The SGM-3500 or SGM-3500L Designed for video and audio professionals, the SGM-3500 and 3500L microphones are condenser microphones with supercardioid and hypercardioid polar patterns, respectively, a wide frequency response and ultra-low noise levels. Each microphone is tested before leaving the factory and is accompanied by its own unique frequency response chart.

Microphone Output
The SGM-3500 and SGM-3500L microphones have a balanced 3-pin XLR output that is designed to work with a standard XLR microphone input. The contacts of this output are gold plated for optimal connectivity and resistance to corrosion. Any standard, balanced XLR microphone cable can be used for connecting this microphone to other equipment (sold separately).

Phantom Power
The SGM-3500 and SGM-3500L microphones require phantom power in order to work. Phantom power is a DC voltage supplied through a balanced microphone cable and used to power the electronics of the connected microphone. Most professional cameras, mixers and audio interfaces with microphone XLR preamps have the ability to supply phantom power. If the equipment you use does not, you will have to utilize a separate external phantom power supply.

Most commonly, phantom power is supplied at 48 V. This is the optimal voltage for the SGM-3500 and SGM-3500L microphones. It is possible that your connected equipment supplies a different voltage. This microphone is rated to work on a voltage between 44 and 52 V, however, performance will degrade with lower voltages and damage to the electronics could result when using voltages in excess of this range. It is recommended that you consult the manuals of any equipment you intend to use with this microphone beforehand. Please note that the warranty does not cover damage caused by using phantom power beyond what the microphone is rated for.

Microphone Clip
The included microphone clip is designed to fit either the SGM-3500 or SGM-3500L snuggly, and has a 5/8" threaded hole on the bottom which will fit USA standard microphone boom poles. Also included is a thread adapter for fitting to boom poles with a 3/8" thread European standard pole. The clip can articulate to adjust for the proper angle when booming.

The SGM-3500 and SGM-3500L microphones adhere to Azden's highest engineering and performance standards to satisfy the needs of even the most fastidious audio and video professionals.
