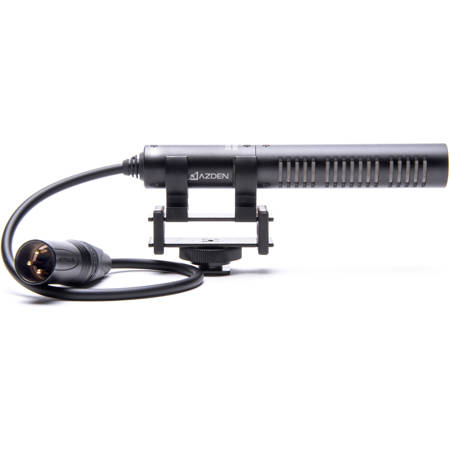

Azden SGM-PDII Professional Mini Shotgun Microphone with Phantom Power and XLR Connection

SKU: AZSGMPDII

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Azden SGM-PDII Mini Shotgun Mic Specifications

  • Element

    Electric Condenser

  • Frequency response:

    80Hz-18kHz

  • Sensitivity:

    Cardioid: -33dB @ 1kHz (0db=1V/Pa)

  • Maximum Input Sound Level

    120dB SPL (1kHz @ 1% THD)

  • Signal-to-Noise Ratio

    70dB (1kHz @ 1Pa)

  • Phantom Power Requirements

    11~52V

  • Impedence

    1.5k @ 1kHz

  • Output Connector

    Fixed 3-pin XLR cable (33cm long

  • Dimensions

    150 mm long, 21mm diameter

  • Weight:

    110g

  • UPC Code

    095528060070

About Azden SGM-PDII Mini Shotgun Mic

The new Azden SMX-PDII is a mini shotgun microphone with a balanced 3-pin XLR mic output. The SMX-PDII works perfectly with broadcast and prosumer cameras that offer phantom power. The SGM-PDII is 150 mm long, has a 21mm diameter, uni-directional mono mic pick-up and a frequency range of 80Hz-18kHz. The SGM-PDII microphone requires phantom power from the camera (or mixer). If your camera has phantom power on its XLR audio connections, then it should work with this microphone.

Azden SGM-PDII Mini Shotgun Mic Features

  • Compact Design for ENG camera mounting
  • Easily attached to DV cameras with attached XLR cable
  • Powered by 11~52V phantom power

Key Features

  • Compact Design for ENG camera mounting
  • Easily attached to DV cameras with attached XLR cable

What's in the box:

  • Azden SGM-PDII Microphone with fixed XLR cable
  • Carry-Pouch
  • Shock absorbing Shoe Mount
  • User Manual
  • Windscreen
