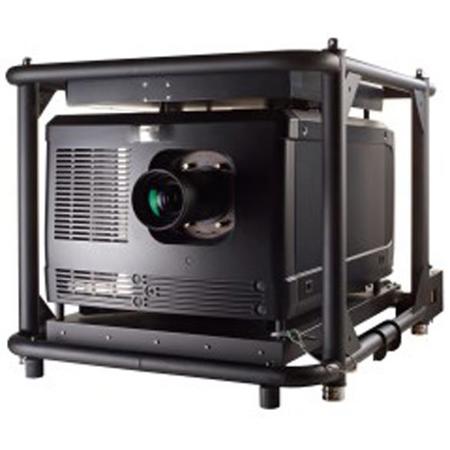

Barco HDQ-2K40 40,000 Lumens 2K 2048 x 1080 DLP Projector, XLD 4K Lens
See all Barco items

Barco HDQ-2K40 40,000 Lumens 2K 2048 x 1080 3-Chip DLP Projector, XLD 4K Lens Included

SKU: BAR9004570B1

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Barco 3-Chip DLP Projector Specifications

  • Projector Type

    2K 3-chip DLP digital projector

  • Technology

    1.2" DMD x3

  • Resolution

    2,048 x 1,080

  • Brightness

    40,000 center lumens / 37,000 ANSI lumens

  • Contrast Ratio

    2,000:1 (standard)

  • Brightness Uniformity

    90%

  • Aspect Ratio

    2,048 : 1,080

  • ScenergiX

    Horizontal and vertical edge blending

  • Lens Type

    XLD, 4K lenses

  • Other Additional Lenses

    1:1; 1.45-1.8:1; 1.8-2.4:1; 2.2-3.0:1; 2.8-5.5; 5.5-8.5-1

  • Optical Lens Shift

    Vertical: -100% to + 110% / Horizontal: +/-30% (on zoom lenses memorized)

  • Color Correction

    P7

  • Lamps

    7 kW xenon

  • Lamp Lifetime

    500 Hrs

  • Transport with Lamp

    No

  • Lamp House, Quick Replace

    Yes

  • Customer Bulb Replace

    Yes

  • Lamp Warranty (field replace/ factory re

    90 days, 300 hours / pro rata 300 hours

  • Sealed DLP Core

    Standard

  • Optical Dowser

    Standard

  • Picture-in-Picture

    Two sources simultaneously

  • Orientation

    Table - side (portrait)
    lamp door down/bottom

  • Others

    Can be controlled by DMX 512 console, warping

  • DMX 512

    Standard

  • WARP

    Direct adjust OSD + toolset

  • Integrated Web Server

    Yes

  • CLO (constant light output)

    Standard

  • 3D

    Active eyewear (optional), passive Infitec (optional), passive circular (optional), triple flash up to 144 Hz

  • Inputs

    DVI-I (HDCP including analog RGB YUV), SDI/HDSDI/Dual HDSDI/3G/BarcoLink

  • Optional Inputs

    5-BNC RGBHV (RGBS/RGsB, YUV CS/SOY, Composite video, S-Video); DVI-I (HDCP including analog RGB YUV) + BarcoLink/SDI/HDSDI/Dual HDSDI/3G; 3D active input (HDMI/DisplayPort) feat. SENSIO 3D

  • Input Resolutions

    From NTSC up to QXGA (2,048 x 1,536)

  • Max. Pixel Clock

    200 MHz

  • Software Tools

    Projector Toolset + Android app

  • Control

    XLR wired + IR, RS232, Wi-Fi, GSM (opt)

  • Network Connection

    10/100 base-T, RJ-45 connection, Wi-Fi (optional)

  • Power Requirements

    200-240V /380-400V at 50-60Hz

  • Max. Power Consumption

    8,000W

  • Noise Level (typical at 25 Degree C/77 D

    61 dB(A)

  • Operational Ambient Temperature

    32-104 Degree F (0-35 Degree C)

  • Operational Humidity

    0-80% (non condens)

  • Dissipation BTU

    Max. 27,331 BTU/h

  • Certifications

    Compliant with UL60950-1 and EN60950-1 complies with FCC rules & regulations, part 15 Class A and CE EN55022 Class A, RoHS

  • Dimensions (WxLxH)

    40.35 x 51.96 x 35.43" (1,025 x 1,320 x 900mm)

  • Weight

    462.97lbs (210kg)

About Barco 3-Chip DLP Projector

The world's brightest projector for rental and staging, Barco's HDQ-2K40 ensures razor-sharp, ultra-bright images, guaranteeing an unequaled event experience on every occasion. Thanks to its 40,000 lumens light output and 2K resolution, the HDQ-2K40 displays stunning images with rich vibrant colors time after time. What's more, the HDQ is also equipped with Barco's high-end ImagePRO technology with Athena scaler for flexible scaling.

Wireless control and preview mode
The HDQ-2K40's built-in color LCD screen provides all the information you need on your projector's status, and allows you to preview your connected sources. In addition, you can easily control your HDQ-2K40 via your smart phone or tablet computer.

Designed for rental and staging
Building on Barco's experience in the rental and staging market, the HDQ has been designed with the road in mind. Its modular design makes the HDQ simple to install and service. Equipped with a solid and adjustable frame, the projector can easily be stacked and rigged as well.

Fast signal distribution
The proprietary BarcoLink technology guarantees swift signal distribution between Barco's projectors and image processors. with BarcoLink, signals are distributed over a BNC coax cable, which is not only more durable but also enables you to lower your costs.

Choose your brightness with HDQ Flex
The HDQ-2K40 projector is also available with a light-on-demand option. Thanks to this technology, you can fully tune the light output of the projector to your event: it can be programmed to a light output of 26,000 lumens up to 40,000 lumens in 2,000 incremental steps. In this way, rental companies have more flexibility to offer their customers the light output they want.

Barco 3-Chip DLP Projector Features

  • The world's brightest projector for rental and staging
  • Razor-sharp, 2K images
  • Powerful Athena scaler
  • Light-on-demand option for flexible brightness
  • Ultra-bright, stunning images
  • High-contrast 3-chip DLP engine
  • 2K resolution (2048 x 1080)
  • 40,000 center lumens
  • Xenon illumination
  • ImagePRO technology inside (Athena scaler)
  • Dual-core warp engine
  • Built for the rental & staging industry
  • Fully sealed optics
  • Extended wireless control options
  • 3D ready
  • Preview mode on LCD display
  • Easy to set up, install, service and transport thanks to solid and modular design
  • Minimum image latency

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • world's brightest projector for rental and staging
  • Razor-sharp, 2K images
  • Powerful Athena scaler
  • Light-on-demand option for flexible brightness
  • Ultra-bright, stunning images
  • High-contrast 3-chip DLP engine

What's in the box:

  • Barco HDQ-2K40 40k Lumens 2K 3-Chip DLP Projector
  • Wireless/XLR Wired Rugged Remote Control
  • Adjustable Frame/Clamps
  • XLD Lens
  • Barco 3 Year Warranty
