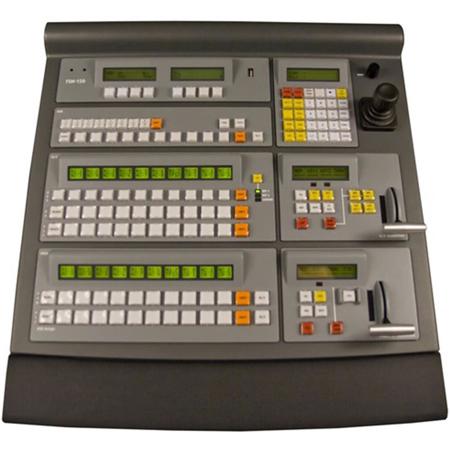

Barco FSN-150 Compact Controller

Barco's FSN-150 is a smart, compact controller that allows you to engineer the visualization of your event the way you want to. It offers numerous custom controls, mappable buttons and quick preset effect activation, including cuts, wipes, transitions, DVE moves, downstream keys and many types of effects you can create yourself.

Barco's FSN-150 also includes mini LCD displays are perfectly readable even in daylight settings, and give you the right information on sources and programmed custom effects.

To make sure your show with the FSN-150 controller will not be a one-shot effort, it allows you to store complete or partial switcher setups in over 1,000 memory registers. with just a press of the button, you'll be ready to go for an encore in no time.

Custom Control Section
Buttons can be programmed to perform functions such as, macros, preset recalls, freeze, menu access and more. The FSN-150 includes eight dedicated custom buttons.

USB
Enables users to back up, restore, and update system code.

Memory Section
Enables users to store and recall complete or partial switcher setups using 1000 memory registers. This advanced memory system includes high-end features such as enables/disables, latching, store, and recall for easy entry.

M/E Transition Section
Provides controls for creating cuts, mixes, wipes , keys, and triggering DVE moves. The LCD display indicates key sources, the transition rate, and the active memory register.

Instant Transitions
This section provides instant CUT or MIX functions for both keyers, regardless of T-Bar position.

PGM/PST Transition Section
Provides controls for creating cuts, mixes, wipes, a downstream key (DSK), and a fade to black (FTB).

PGM/PST Bank
The PGM/PST bank includes PGM and PST buses plus a phantom DSK Assign bus. All buses operate in "flip-flop" mode.

M/E Banks
Each M/E includes Background (BG), Preset (PST), and key buses. Buttons can be assigned to inputs, color backgrounds, stills and test patterns. A dedicated BLACK button is provided. Selectable between M/E 1 and M/E 2.

LCD Displays
Daylight viewable, programmable high resolution LCD displays show all source names and custom button names. All displays are angled for easy viewing.

AUX Section
Assigns sources to native or scaled AUX bus outputs. Buttons are provided for 16 AUX outputs Additional AUX out puts are switched on the GUI.
