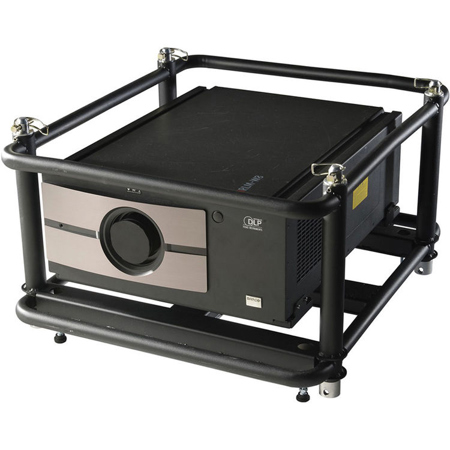

Barco RLM-W8 8,000 Lumens WUXGA 1920 x 1200 RLM Projector, RLD W Lens
See all Barco items

Barco RLM-W8 8,000 Lumens WUXGA 1920 x 1200 RLM Projector, RLD W 4.34-6.76:1 Lens Included

SKU: BAR9006311B1

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Barco RLM-W8 Specifications

  • Projector type

    WUXGA 3-chip DLP digital projector

  • Technology

    0.67" DMD x3

  • Resolution

    1,920 x 1,200

  • Brightness

    8,000 center Lumens / 7,300 ANSI Lumens +/- 10%

  • Contrast ratio

    2,200:1 (standard) / 3,000:1 (CE)

  • Contrast ratio

    2,200:1 (standard) / 3,000:1 (CE)

  • Brightness uniformity

    95%

  • Aspect ratio

    16:10

  • ScenergiX

    Horizontal and vertical edge blending

  • Color correction

    P7

  • Lens type

    RLD W

  • Lens

    4.34-6.76:1

  • Additional Available Lenses

    (Fix) 0.77:1 ; 1.16:1 ; (zoom) 1.45-1.74 ; 1.74-2.17 ; 2.17-2.9 ; 2.9-4.34 ; 4.34-6.76

  • Optical lens shift

    Vertical: -100% to +100% / Horizontal: -35% to +35% on zoom lenses

  • Lamps

    2x330W

  • Lamp lifetime

    1,500 hours (typical) / 2,000 hours (maximum)

  • Transport with lamp

    Yes

  • Lamp house, quick replace

    Yes, auto lamp select

  • Lamp warranty (field replace/ factory re

    120 days, 500 hours

  • Sealed DLP core

    Standard

  • Optical dowser

    standard

  • Picture-in-picture

    Up to two sources simultaneously

  • Orientation

    Table - ceiling

  • WARP

    Preset and customized values

  • Integrated web server

    Yes

  • 3D

    Passive circular polarized (optional)

  • Inputs

    2 x HDMI (HDCP 1,3); 5-BNC (RGBHV, RGBS/RGBsB;YUV); VGA (RGBHV, RGBS/RGBsB; YUV); cinch (RGBs, YUV); Composite video; S-Video; HSDI/ 3G HDSDI /SDI/BarcoLink

  • Input resolutions

    From NTSC up to UXGA (1600x1200), including WUXGA (1920x1200)

  • Max. pixel clock

    165 MHz

  • Software tools

    Projector Toolset, Android app

  • Control

    Minijack + IR, RS232, 12v trigger

  • Network connection

    10/100 base-T, RJ-45 connection

  • Power requirements

    90-240V / 50-60Hz

  • Max. power consumption

    850W / STBY Less than 2W

  • Noise level (typical at 25 Degree C/77 D

    39dB(A)

  • Operational ambient temperature

    0-40 Degree C (32 Degree-104 Degree F)

  • Operational humidity

    0-80% (non condens)

  • Dissipation BTU

    Max 2900 BTU/h

  • Certifications

    Compliant with FCC rules and regulations, part 15 Class A and CE EN55022 Class A, CE, TUV, RoHS, WEEE

  • Weight

    57.3lbs (26kg)

  • Dimensions (WxLxH)

    19.69 x 26.36 x 9.72" (500 x 669.74 x 247mm)

About Barco RLM-W8

Barco's RLM-W8 brings the saturated colors of 3-chip DLP projection to events and fixed installations, at the price of single-chip DLP technology.

Featuring blending and built-in warping
With an enhanced Contrast, quick and creative stacking options as well as built-in warping capabilities for curved surfaces, Barco's RLM-W8 is a versatile choice for mid- to large-sized venues. In addition, it features blending technology to create seamless composite images across a canvas of any size. The RLM-W8 continues the RLM line's tradition of silence as well as low energy consumption.

Fast signal distribution
The proprietary BarcoLink technology guarantees swift signal distribution between Barco's projectors and image processors. With BarcoLink, signals are distributed over a BNC coax cable, which is not only more durable but also enables you to lower your costs.

Barco RLM-W8 Features

  • 3-chip DLP color quality
  • Blending and built-in warping
  • BarcoLink for fast signal distribution
  • 8000 Lumens
  • WUXGA (1920 x 1200) Resolution
  • Dual Lamp System
  • Picture-in-Picture
  • 3D Ready
  • Sealed DLP Core

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • 3-chip DLP color quality
  • Blending and built-in warping
  • BarcoLink for fast signal distribution
  • WUXGA (1920 x 1200) Resolution
  • Dual Lamp System
  • Picture-in-Picture

What's in the box:

  • Barco RLM-W8 8000 Lumens WUXGA 1920 x 1200 RLM Projector
  • RLD W 4.34-6.76:1 Lens
  • Power Cord
  • RLM Commander Software
  • Projector Toolset Software
  • Wireless Remote Control
  • HDMI to DVI Converter
  • Barco Limited 2 Year Warranty with a 3rd Year Optional and 120-Days or 500-Hours Lamp Warranty
