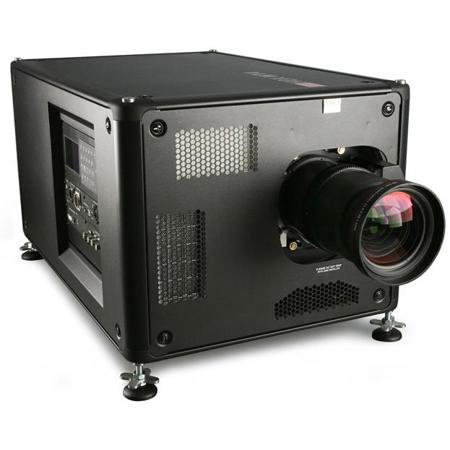

Barco HDX-W20 FLEX 20,000 Lumens WUXGA 1920 x 1200 DLP Projector, TLD+ Lens
See all Barco items

Barco HDX-W20 FLEX 20,000 Lumens WUXGA 1920 x 1200 DLP Projector, TLD+ Lens Included

SKU: BAR9012005B1

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Barco HDX-W20 Flex Specifications

  • Projector type

    WUXGA 3-Chip DLP digital projector

  • Technology

    0.96" DMD x 3

  • Resolution

    1,920 x 1,200

  • Supported Resolutions

    XGA - 1024 x 768
    SXGA - 1280 x 1024
    SXGA+ - 1400 x 1050
    UXGA - 1600 x 1200

  • Format

    NTSC 4.43, M
    PAL 60, B, D, G, H, I, M, N
    SECAM B, D, G, K, L

  • Pixels

    6,912,000

  • Light output

    20,000 Center Lumens / 18,500 ANSI Lumens +/- 10%

  • Contrast ratio

    1,850:1 (standard) - 2,600:1 (high Contrast mode)

  • Brightness uniformity

    90%

  • Aspect ratio

    16:10

  • Contrast Ratio

    1850:1

  • Dynamic Contrast Ratio

    2650:1

  • Supported 3D Formats

    Frame Packing (up to 1080p)
    Side by Side
    Top Bottom
    Frame Sequential

  • ScenergiX

    Horizontal and vertical edge blending

  • Color correction

    P7

  • Lamps

    2.5 kW Xenon

  • Lamp lifetime (typical)

    1,000 hours

  • Transport with lamp

    Yes

  • Lamp house, quick replace

    Yes

  • Customer bulb replace

    Yes

  • Lamp warranty (field replace/ factory re

    90 days, 500 hours/pro rata 750 hours

  • Sealed DLP core

    Standard

  • Optical dowser

    Standard

  • Picture-in-picture

    Two sources simultaneously

  • Orientation

    Table - ceiling - side (portrait) +/- 10% - vertical
    +/- 10% Lamp door down/bottom

  • DMX 512

    Standard

  • WARP

    Direct adjust OSD + toolset

  • Integrated web server

    Yes

  • CLO (constant light output)

    Standard

  • 3D

    Active eyewear (optional), passive Infitec (optional), passive circular (optional), triple flash up to 200Hz

  • Inputs

    DVI- I (HDCP including analog RGB YUV) / SDI/HDSDI/dual HDSDI/3G/BarcoLink

  • Optional Inputs

    5-BNC RGBHV ( RGBS/RGsB, YUV CS/SOY, Composite video, S-Video); DVI - I (HDCP including analog RGB YUV) + BarcoLink/SDI/HDSDI/dual HDSDI/3G; 3D active input (HDMI/ DisplayPort) feat. SENSIO 3D

  • Input resolutions

    From NTSC up to QXGA (2,048 x 1,536)

  • Max. pixel clock

    200 Mhz

  • Software tools

    Projection Toolset + Android app

  • Control

    XLR wired + IR, RS232, Wifi, GSM (opt)

  • Network connection

    10/100 Base-T, RJ-45 conn, Wifi (optional)

  • AC power

    200-240 V / 50-60 Hz

  • Power consumption

    2,850 W / STBY Less than 8W

  • Noise level (typical at 25 Degree C/77 D

    53 dB (A)

  • Operating temperature

    0 - 40 Degree C (32 - 104 Degree F)

  • Operation humidity no condens

    0% - 80%

  • Dissipation BTU

    Max. 9,725 BTU/h

  • Certifications

    Compliant with UL60950-1 and EN60950-1, complies with FCC rules & regulations, part 15 Class A and CE EN55022 Class A, RoHS

  • Heat Dissipation

    9725 BTU

  • Languages

    Dutch
    English
    French
    German
    Japanese
    Korean
    Portuguese
    Simplified Chinese
    Spanish

  • Lens type

    TLD +

  • Other Additional Lens

    0.73:1 ; 1.2:1 ; 1.25-1.6:1 ; 1.5-2.0:1 ; 2.0-2.8:1 ; 2.8-4.5:1 ; 4.5-7.5:1 ; 7.5-11.5:1

  • Optical lens shift

    Vertical: -30% to +120% / Horizontal: -40% to +40% on zoom lenses (memorized)

  • Altitude

    0 - 9843' (0 - 3000 m)

  • Weight

    110.0lb (49.89kg)

  • Dimensions

    18.7 x 15.0 x 28.5" (47.5 x 38.1 x 72.4cm)

About Barco HDX-W20 Flex

The HDX-W20 FLEx is the most compact rugged projector that offers 20,000 Lumens light output currently available. One of its most striking features is that it is standard equipped with the light-on-demand option for flexible light output.

Choose your brightness
Thanks to the light-on-demand feature, you can fully tune the light output of the projector to your event: it can be programmed to a light output of 10,000 to 20,000 Lumens in 2,000 incremental steps. Rental companies now have the flexibility to offer their customers the light output they want.

Flexible scaling
Building on Barco's renowned ImagePRO series with Athena scaler, the HDX is equipped with on-board image processing for unlimited and flexible scaling. This boosts creativity and minimizes the time it takes to get sources on screen.

Quick preview and wireless control

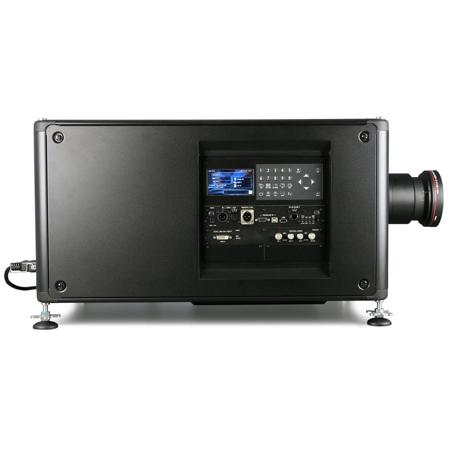

The HDX-W20 FLEx's built-in color LCD screen provides you with all the information you need on your projector's status and allows you to preview your connected sources. Whether from one central PC or via the Android projector control app for smartphone or tablet computer, you remain connected to the HDX at all times.

3G/BarcoLink compatibility
The HDX-W20 FLEx has a native 3G HDSDI/SDI input, which makes it compatible with progressive HD sources over a single BNC cable. This also means that the HDX allows for digital inputs that don't come through fragile DVI fiber cables. What's more, the Projector also feature BarcoLink, enabling progressive WUXGA 50/59.94/60 Hz signal distribution over a single BNC coax cable.

Compact projector with just five building blocks
As the HDX-W20 FLEx is the smallest and lightest 20K Lumens projector on the market, it can easily be boxed and shipped, and it fits into standard flight cases. It features just five building blocks that can be removed and replaced quickly.

Barco HDX-W20 Flex Features

  • Brightness of 20,000 Lumens
  • WUXGA (1920 x 1200) Native Resolution
  • Uses Interchangeable TLD+ Lenses
  • DVI-I, SDI, HD-SDI, 3G-SDI Inputs
  • Ethernet, RS-232, and XLR Controllable
  • Automatic geometric image correction across curved surfaces
  • Designed to withstand the most severe conditions
  • Athena scaling
  • Light-on-Demand
  • Uses Interchangeable Lenses
  • DVI, SDI, HD-SDI, 3G-SDI Video-In
  • Two I/O Expansion Slots Available
  • XLR and RS-232 Controllable
  • Flexible brightness as standard
  • Compact and sturdy design
  • Active 3D, quick preview, and wireless control
  • Compatible with BarcoLink

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Brightness of 20,000 Lumens
  • WUXGA (1920 x 1200) Native Resolution
  • Uses Interchangeable TLD+ Lenses
  • DVI-I, SDI, HD-SDI, 3G-SDI Inputs
  • Ethernet, RS-232, and XLR Controllable
  • Automatic geometric image correction across curved surfaces

What's in the box:

  • Barco HDX-W20 FLEX 20000 Lumens WUXGA 1920 x 1200 DLP Projector
  • TLD+ Lens
  • Barco Limited 2 Year Warranty
